Duplex wire and super duplex wire manufacturer & Industrial Suppliers


Products / Nickel Alloys / Duplex-Super Duplex Stainless Steel / Duplex wire and super duplex wire

Nickel-Alloy

What is Duplex stainless steel | Duplex steel Principal Features | Duplex steel Strength | Duplex steel Physical Properties | Duplex Price

Nickel-Alloy


Duplex Stainless 2205 is a nitrogen-enhanced duplex used in applications requiring high strength and excellent corrosion resistance. It is designed to combine improved resistance to stress corrosion cracking, pitting and crevice corrosion. Duplex 2205 provides nearly double the corrosion resistance typical in other austenitic stainless steels.

Duplex wire and super duplex wire Manufacturer & Industrial Suppliers


UNS NICKEL MATERIAL GRADES
Nickel grade UNS Werkstoff DIN
Duplex Stainless Steel UNS S31803 1.4462 X2CrNiMoN22-5-3
Duplex UNS S32205 1.4462 X2CrNiMoN22-5-3



Duplex wire and super duplex wire Application
Duplex wire and super duplex wire Uses
  • Architecture and construction
  • Aerospace
  • Nuclear Power
  • Fertilizers
  • Valve & Pumps
  • Petrochemical
  • Motor industry
  • Food and drink
  • Electronics
  • Transport and traffic
  • Pulp and paper industry
  • Medicine
  • Energy industry
  • Chemicals industry
  • Nickel Alloy in Pulp and Paper
Duplex wire and super duplex wire Order & Packing Information
  Min. Order: 10 Pieces (or please enquire for your customized order)
Trade Terms: FOB, CIF
Payment Terms: L/C, T/T
Packing: as per requirement
Place of Origin:JIANGSU, China
Means of Transport: Land, Ocean
Delivery Date: one or two week
Price: click here to check price
Package:
in wooden crate with plastic caps on each end.



Duplex wire and super duplex wire Ready stock

Wire Bobbin

Wire in Duplex UNS S31803 & S32205 available at Hexion Steel & Engineering Co, we are also known as trader & supplier of wire spool, tmt bar fe 500, fusion bonded epoxy coating, rebar tying machines, automatic tmt binding gun, color coated sheets & rolls & bars.

Duplex wire and super duplex wire Ready stock

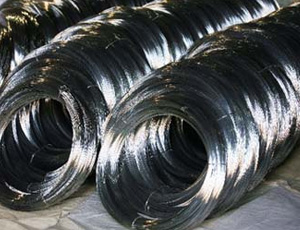

Wire Coil

Wire in Duplex UNS S31803 & S32205

Duplex wire and super duplex wire Ready stock

Filler Wire

Wire in Duplex UNS S31803 & S32205

Duplex wire and super duplex wire Ready stock

Duplex wire

Wire in Duplex UNS S31803 & S32205

Duplex wire and super duplex wire Ready stock at Hexion Steel LIMITED.

super duplex wire

Wire in in Super Duplex UNS S32750 & S32760

Duplex wire and super duplex wire Ready stock at Hexion Steel LIMITED.

Duplex stainless steel 2205 wire

Duplex 2205 Standards

  • UNS S31803
  • UNS S32250
  • ASTM A182
  • ASTM A276
  • ASTM A479

Composition(%)

  • Carbon 0.030 Max
  • Chromium 21.0-23.0
  • Manganese 2.0 Max
  • Molybdenum 2.50-3.50
  • Nickel 4.50-6.50
  • Nitrogen 0.080-0.20
  • Phosphorus 0.030 Max
  • Silicon 1.00 Max
  • Sulfur 0.020 Max




More useful information

  • Duplex  stainless steels have a mixed microstructure of austenite and ferrite, the aim usually being to produce a 50/50 mix, although in commercial alloys the ratio may be 40/60. Duplex stainless steels have roughly twice the strength compared to austenitic stainless steels and also improved resistance to localized corrosion, particularly pitting, crevice corrosion and stress corrosion cracking. They are characterized by high chromium (19–32%) and molybdenum (up to 5%) and lower nickel contents than austenitic stainless steels.
The properties of duplex stainless steels are achieved with an overall lower alloy content than similar-performing super-austenitic grades, making their use cost-effective for many applications. Duplex grades are characterized into groups based on their alloy content and corrosion resistance.
  • Lean duplex refers to grades such as UNS S32101 (LDX 2101), S32304, and S32003.
  • Standard duplex is 22% chromium with UNS S31803/S32205 known as 2205 being the most widely used.
  • Super duplex is by definition a duplex stainless steel with a pitting corrosion equivalent (PRE) > 40, where PRE = %Cr + 3.3x(%Mo + 0.5x%W) + 16x%N. Usually super duplex grades have 25% chromium or more and some common examples are S32760 (Zeron 100 via Rolled Alloys), S32750 (2507) and S32550 (Ferralium),.
  • Hyper duplex refers to duplex grades with a PRE > 48 and at the moment only UNS S32707 and S33207 are available on the market.

Alloy 2205

Specs: 2205 (UNS S32205/S31803)
A 22Cr-3Mo Stainless Steel

General Properties
Alloy 2205 is a 22% Chromium, 3% Molybdenum, 5-6% Nickel nitrogen alloyed duplex stainless steel with high general, localized and stress corrosion resistance properties in addition to high strength and excellent impact toughness.

Alloy 2205 provides pitting and crevice corrosion resistance superior to 316L or 317L austenitic stainless steels in almost all corrosive media. It also has high corrosion and erosion fatigue properties as well as lower thermal expansion and higher thermal conductivity than austenitic.

The yield strength is about twice that of austenitic stainless steels. This allows a designer to save weight and makes the alloy more cost competitive when compared to 316L or 317L.

Alloy 2205 is particularly suitable for applications covering the -50°F/+600°F temperature range. Temperatures outside this range may be considered but need some restrictions, particularly for welded structures.


Applications

  • Pressure vessels, tanks, piping, and heat exchangers in the chemical processing industry
  • Piping, tubing, and heat exchangers for the handling of gas and oil
  • Effluent scrubbing systems
  • Pulp and paper industry digesters, bleaching equipment, and stock-handling systems
  • Rotors, fans, shafts, and press rolls requiring combined strength and corrosion resistance
  • Cargo tanks for ships and trucks
  • Food processing equipment
  • Biofuels plants

Comparison of standardized steels

EN-standard
Steel no. k.h.s DIN
EN-standard
Steel name
SAE grade UNS
440A S44002
1.4112 X90CrMoV18 440B S44003
1.4125 X105CrMo17 440C S44004
440F S44020
1.4016 X6Cr17 430 S43000
1.4408 G-X 6 CrNiMo 18-10 316
1.4512 X6CrTi12 409 S40900
410 S41000
1.4310 X10CrNi18-8 301 S30100
1.4318 X2CrNiN18-7 301LN
1.4307 X2CrNi18-9 304L S30403
1.4306 X2CrNi19-11 304L S30403
1.4311 X2CrNiN18-10 304LN S30453
1.4301 X5CrNi18-10 304 S30400
1.4948 X6CrNi18-11 304H S30409
1.4303 X5CrNi18-12 305 S30500
X5CrNi30-9 312
1.4541 X6CrNiTi18-10 321 S32100
1.4878 X12CrNiTi18-9 321H S32109
1.4404 X2CrNiMo17-12-2 316L S31603
1.4401 X5CrNiMo17-12-2 316 S31600
1.4406 X2CrNiMoN17-12-2 316LN S31653
1.4432 X2CrNiMo17-12-3 316L S31603
1.4435 X2CrNiMo18-14-3 316L S31603
1.4436 X3CrNiMo17-13-3 316 S31600
1.4571 X6CrNiMoTi17-12-2 316Ti S31635
1.4429 X2CrNiMoN17-13-3 316LN S31653
1.4438 X2CrNiMo18-15-4 317L S31703
1.4362 X2CrNi23-4 2304 S32304
1.4462 X2CrNiMoN22-5-3 2205 S31803/S32205
1.4539 X1NiCrMoCu25-20-5 904L N08904
1.4529 X1NiCrMoCuN25-20-7 N08926
1.4547 X1CrNiMoCuN20-18-7 254SMO S31254
