We are regular suppliers from China for Alloy Steel raw Materials
|
|
CFERW |
Cold Formed Electric Resistance Welded |
Mechanical |
Sizes under 2" outside diameter |
Structural |
Sizes 2" outside diameter & over with walls 3/16" & thicker |

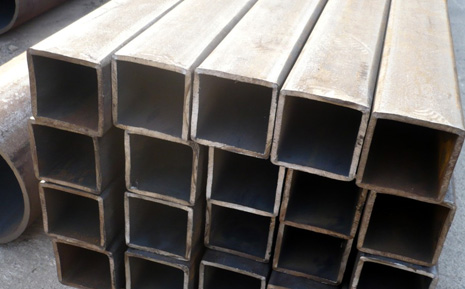

Square Tubing
*Approimate ID dimension does not allow for ID weld bead. |
OD |
WALL |
ID |
LBS/FT |
1/2 |
.065 |
.37 |
.39 |
3/4 |
.065 |
.62 |
.69 |
|
.083 |
.58 |
.75 |
|
.120 |
.51 |
1.03 |
1 |
.065 |
.87 |
.83 |
|
.083 |
.83 |
1.03 |
|
.120 |
.76 |
1.44 |
1 1/4 |
.065 |
1.12 |
1.05 |
|
.083 |
1.08 |
1.32 |
|
.109 |
1.03 |
1.69 |
|
.120 |
1.01 |
1.84 |
|
.188 |
.87 |
2.40 |
11/2 |
.065 |
1.37 |
1.27 |
|
.083 |
1.33 |
1.60 |
|
.120 |
1.26 |
2.25 |
|
.188 |
1.12 |
3.35 |
|
.250 |
1.00 |
4.00 |
1 3/4 |
.083 |
1.58 |
1.88 |
|
.120 |
1.51 |
2.66 |
2 |
.065 |
1.87 |
1.71 |
|
.083 |
1.83 |
2.16 |
|
.120 |
1.76 |
3.05 |
OD |
WALL |
ID |
LBS/FT |
2 |
.188 |
1.50 |
4.32 |
|
.250 |
1.75 |
5.41 |
2 1/4 |
.250 |
1.75 |
7.00 |
2 1/2 |
.120 |
2.26 |
3.90 |
|
.188 |
2.12 |
5.59 |
|
.250 |
2.00 |
7.11 |
3 |
.083 |
2.83 |
3.29 |
|
.120 |
2.76 |
4.75 |
|
.188 |
2.62 |
6.87 |
|
.250 |
2.50 |
8.81 |
3 1/2 |
.120 |
3.25 |
5.68 |
|
.188 |
3.12 |
8.15 |
|
.250 |
3.00 |
10.51 |
4 |
.120 |
3.76 |
6.40 |
|
.188 |
3.62 |
9.42 |
|
.250 |
3.50 |
12.21 |
|
.375 |
3.25 |
17.21 |
5 |
.250 |
4.50 |
15.62 |
6 |
.188 |
5.64 |
14.53 |
|
.250 |
5.50 |
19.02 |
8 |
.250 |
7.50 |
25.82 |
10 |
.250 |
9.50 |
32.63 |
Specifications
Grade |
Class |
Type |
Specification |
1010 |
CFERW |
Mechanical |
ASTM-A-513, Type 1 or 2 |
A500B |
CFERW |
Structural |
ATSM-A-500, Grade B |
Chemical Composition |
Grade Designation |
Chemistry-Ladle Analysis |
Carbon |
Manganese |
Phosporous |
Sulfur |
A501 (A36) |
0.26% max |
- |
0.04% max |
0.05% max |
A500A |
0.26% max |
- |
0.04% max |
0.05% max |
A500B |
0.26% max |
- |
0.04% max |
0.05% max |
A500C |
0.23% max |
1.35% max |
0.04% max |
0.05% max |
Copper, when copper steel is specified, 0.20% minimum. |
Mechanical Properties |
Grade Designation |
Grade |
Tensile Strength |
Yield Strength Minimum |
Elongation In 2 Inches Minimum |
Condition |
Minimum |
A501 (A36) |
Hot Formed |
58,000 psi |
36,000 psi |
23% |
A500A |
Cold Formed |
45,000 psi |
39,000 psi |
25% |
A500B |
Cold Formed |
58,000 psi |
46,000 psi |
23% |
A500C |
Cold Formed |
62,000 psi |
50,000 psi |
21% |
Stock is usually cold formed welded A500B steel. |
Mechanical Tests Specified
Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test |
For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested. |
For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe. |
Notes for Hardness Test: |
P91 shall not have a hardness not exceeding 250 HB/265 HV [25HRC]. |
Notes for Bend Test: |
For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test. |
|
Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser. |
|
The bend test specimens shall be bent at room temperature through 180 without cracking on the outside of the bent portion. |
|
The inside diameter of the bend shall be 1 inch [25 mm]. |
Hydrostatic Test |
Each length of pipe shall be Hydro tested, at option of manufacture nondestructive electric testing can be used. |
Please contact a sales associate for a full overview our out alloy steel inventory and processing capabilities.
