We are industrial suppliers of Nickel Alloy 200 Products


Alloy Steel

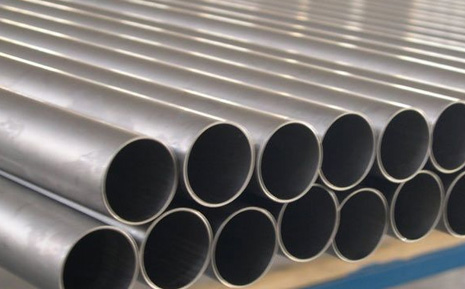

Alloy steel & pipe stock

Alloy steel is steel that is alloyed with a variety of elements in total amounts between 1.0% and 50% by weight to improve its mechanical properties. Alloy steels are broken down into two groups: low-alloy steels and high-alloy steels. The difference between the two is somewhat arbitrary: Smith and Hashemi define the difference at 4.0%, while Degarmo, et al., define it at 8.0%

Alloy steel is often subdivided into two groups: high alloy steels and low alloy steels. The difference between the two is defined somewhat arbitrarily.

Hexion Steel & Engineering provides alloy steel in all mill forms including sheet, strip, plate, foil, round bar, square bar, flat bar, hex bar, tube, pipe and wire.

Available forms is Alloy 20

  • Sheet
  • Plate
  • Bar
  • Pipe & Tube (welded & seamless)
  • Tubing
  • Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
  • Wire

Alloy 20 Specifications

Bar ASTM B 473
Plate ASME SB-463, ASME SB-464, ASTM B 463, ASTM B 464
Sheet ASME SB-463, ASME SB-464, ASTM B 463, ASTM B 464
Strip ASME SB-463, ASME SB-464, ASTM B 463, ASTM B 464
Wire ASME SB-473 ASME SB-366, ASTM B 473, ASTM B 366
Weld Wire AWS ER320LR
Other UNS N08020, Covered Electrodes AWS E320LR

Chemical Composition, %

Ni Fe Cr Cu Mo Nb
32.00-38.00 Balance 19.0-21.0 3.0-4.0 2.0-3.0 8xC-1.0max

C Mn P S Si
.07max 2.0max .045max .035max 1.0max

ASTM Specification

Pipe Smls Pipe Welded Tube Smls Tube Welded Sheet/Plate Bar Forging Fitting
B729 B464 B729 B468 B463 B473 B462 B366

Mechanical Properties
Annealed Material

Form Tensile Min. Yield Min. (.2% offset) Elongation Min. Reduction of Area Min.
Bar (hot or cold finished) 80 ksi 35 ksi 30% 50%
Sheet/Plate 80 ksi 35 ksi 30% -
