Owing to our expertise in this domain, our professionals bring forth for our customers' a wide array of Socket Weld Half Couplings. Robust in design, our offered creates a straight transition across the inside surface of the coupling system and are available in variety of specifications and dimensions are per the requirements of our customers.

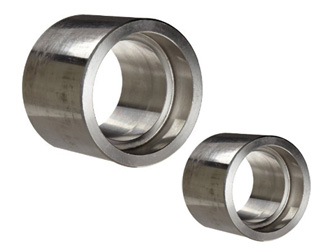

ASME B16.11 / BS3799 Socket Weld Half Coupling

ASME B16.11 / BS3799 Socket Weld Half Coupling Manufacturer & Exporter

Nickel Alloy Half Couplings Socket weld

ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Copper Alloy Steel Half Couplings Socket weld

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Stainless Steel Half Couplings Socket weld

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H

Duplex Steel Half Couplings Socket weld

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760

Carbon Steel Half Couplings Socket weld

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Half Couplings Socket weld

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Types : Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
Half Couplings Socket weld Size : 1/2” NB TO 24” NB.

Enquiry

Dimensions

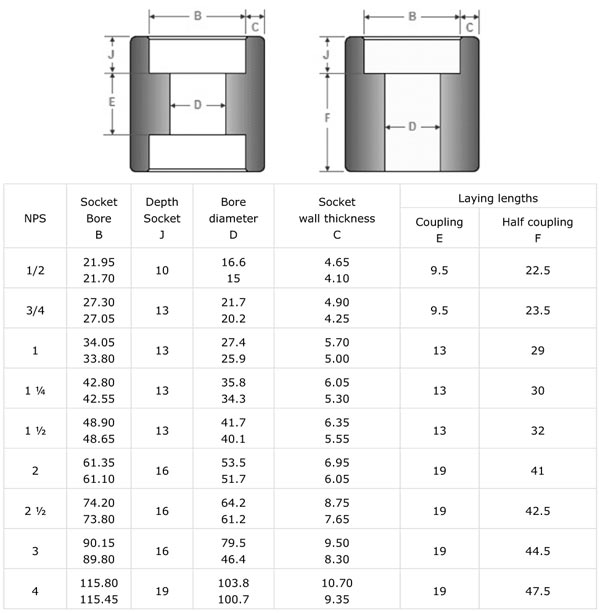

Dimensions Socket weld couplings and half-couplings 3000 lbs-NPS 1/2 - 4 according to ASME B16.11

Dimensions Socket weld couplings and half-couplings

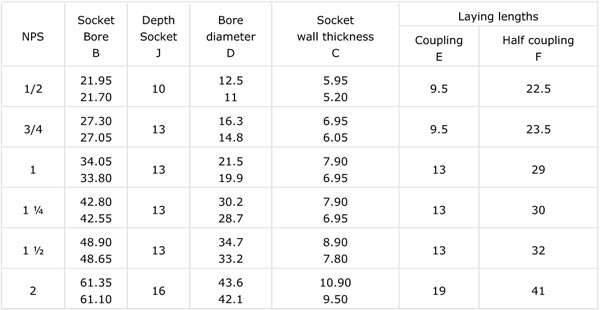

Dimensions Socket weld couplings and half-couplings 6000 lbs-NPS 1/2 - 2 according to ASME B16.11

Dimensions Socket weld couplings and half-couplings

General notes:
Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B) - Maximum and Minimum dimensions.
Bore Diameter (D) - Maximum and Minimum dimensions.
Socket wall thickness - (C) - Average of Socket wall thickness.
Dimensional tolerances laying lengths - (E & F)
NPS 1/2 and NPS 3/4 = +/- 1.5 mm
NPS 1 to NPS 2 = +/- 2 mm
NPS 2½ to NPS 4 = +/- 2.5 mm

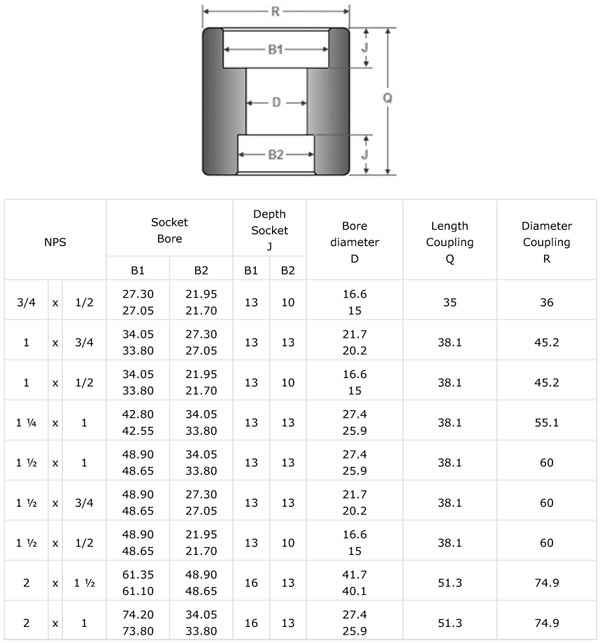

Dimensions Socket weld reducing couplings - 3000 LBS - NPS 1/2 - 2 according to ASME B16.11

Dimensions Socket weld couplings and half-couplings

General notes:
Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B1 / B2) - Maximum and Minimum dimensions.
Bore Diameter (D) - Maximum and Minimum dimensions.

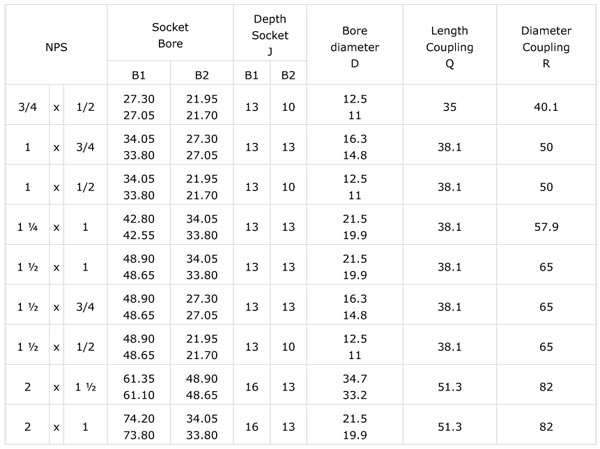

Dimensions Socket weld reducing couplings - 6000 LBS - NPS 1/2 - 2 according to ASME B16.11

Dimensions Socket weld couplings and half-couplings
