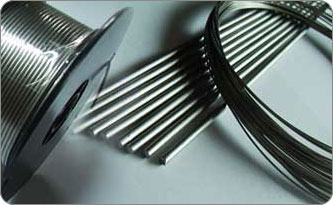

Inconel 600 Welding Electrodes Manufacturer & Industrial Suppliers


Electro Rods, Filler Wire & Brazing Rods
Material
Size
Length
Specification
Manufacturer
  • Stainless Steel
  • Nickel Alloy
  • Mild Steel
  • Cast Iron
  • Copper
  • 2.00 mm Dia.
  • 2.50 mm Dia.
  • 3.15 mm Dia.
  • 4 mm Dia.
  • 5 mm Dia.
  • 6.3 mm Dia.
  • 300 mm
  • 350 mm
  • 350 / 450 mm
  • 350 / 450 mm
  • 450 mm
  • 450 mm
IS
BS
ASTM
  • Advani Oerlikon Ltd.
  • ESAB China Ltd.
  • D & Hse Cheron Electodes Ltd.
  • Victor Electrodes Ltd.
  • SMP (Imported)
  • Raj Ratna§ SMP
  • Vicher Etc.

Note:-

Stainless Steel in Grade

:
  • 308
  • 308
  • 309
  • 309L
  • 310
  • 312
  • 316
  • 316L
  • 317L
  • 347
  • 347L Etc

Nickel Alloy in

:
  • Hastelloy
  • Cupro Nickel
  • Nickel
  • Monel
  • Inconel (600, 625, 800, 825)
  • Alloy 20 Etc.

Application

:
  • Cutting Electro Rods
  • Welding Electro Rods

UNS NICKEL MATERIAL GRADES
Nickel grade UNS Werkstoff DIN
INCONEL 600 UNS N06600 24,816 NiCr 15 Fe
INCONEL 600H UNS N06600 24,816 NiCr 15 Fe

Premium Quality Maintenance & Repair Welding Electrodes

Hexion Steel LIMITED. #41
(High Heat & Acid Stainless)
AC DC-R

High Heat, Corrosion Resistant, and Strong. When faced with high heat and acid conditions, this product will join and withstand adverse situations. Dissimilar combinations of Stainless, Iinconel® , Monel® , and steel are joinable. The high alloy content of this electrode produces deposits that are heat resistant up to 2190º F (1200º C). All position weldability, smooth beads, very low spatter and easy slag removal makes this electrode very popular in both production and maintenance applications.

· Tensile Strength – 100,000 PSI
· Yield Strength – 65,000 PSI
· Elongation - 40%
· Heat Resistant up to 2190°F (1200º C)
· All Position

APPLICATIONS & PROCEDURES:
Use for welding 310, 314, 410 and 430 stainless steels. Use the #41 to clad steel that is subject to elevated temperatures, such as heat treating boxes, ladles, furnace parts, crucibles, high temperature fan blades and grates.

PRODUCTS AVAILABLE:
ELECTRODE: 3/32” 1/8” 5/32” 3/16”
TIG: All popular sizes available


Hexion Steel LIMITED. # 43
(High heat, Acid and Abrasion, Stainless Steel)
DC-R Tig

The Inconel® and Monel® Solution. This product is perfect for the joining of inconel Inconel® and monel Monel® to themselves or in combination to other metals. This is the best rod for the worst conditions. Works well in thermal cycling situations from high heat to sub zero temperatures. Hexion Steel LIMITED. #43 is the choice for heat treating applications.

· Tensile Strength - 85,000 PSI
· Elongation – 30%
· Heat Resistant up to 2450°F
· Excellent for Cryogenic applications
· Excellent Scaling Resistance

APPLICATIONS & PROCEDURES:
Use Hexion Steel LIMITED. #43 when welds are to be subjected to thermal cycling. Use where good weld ductility is a must when joining or repairing heavy sections. This electrode is used on heat treating equipment, cryogenic equipment and dissimilar combinations of nickel alloys, stainless steels, Inconel® and Monel® and similar and dissimilar joining of these and other steels.

PRODUCTS AVAILABLE:
ELECTODE: 3/32” 1/8” 5/32”
TIG: All popular sizes available.

STAINLESS, INCONEL® & MONEL®

  • Hexion Steel LIMITED. #50 (Vertical Down Stainless)
    AC or DC-R

    General Purpose. Stainless steel electrode for austenitic stainless steels, including Molybdenum bearing grades

    • Tensile Strength – 100,000 PSI
    • Yield Strength - 65,000 PSI
    • Elongation - 40%
    • Hardness – 180 Brinell
    • Very Good Corrosion Resistance

    APPLICATIONS & PROCEDURES:
    Hexion Steel LIMITED. #50 is a Stainless Steel electrode for vertical down or standard position welding of austenitic stainless steels, such as 302, 304, 308, 347, 316L. This product is resistant to intergranular corrosion, and can be used to overlay steel for additional protection. The #50 is perfect for welding pipelines, fittings, tanks in high corrosivity environments such as paper mills and chemical plants, and clean environments of the food, dairy and distillery industries. Also, the #50 is great for sheet metal and other applications where excellent weldablity is required.

    PRODUCTS AVAILABLE:
    ELECTRODE: 3/32” 1/8” 5/32”

  • Hexion Steel LIMITED. 308L-16
    Conforms to AWS A5.4
    AC or DC-R Tig Mig

    Superior weld with low heat transfer. A balanced chemistry electrode with a special spray type arc transfer that results in less heat input due to a closer arc gap that is easily maintained while welding. The coating insures dense porosity free deposits, and the slag is virtually self lifting.

    · Tensile Strength – 90,000 PSI
    · Yield Strength – 64,000 PSI
    · Elongation – 45%
    · Excellent Corrosion Resistance
    · Superior Crack Resistivity, even in demanding applications
    · A great all-position stainless rod.

    APPLICATIONS & PROCEDURES:

    Hexion Steel LIMITED. 308L-16 is best used where service conditions are not severe, and on large parts where weld volumes are high. The 308L-16 is ideal in dairy, pulp and paper, textile dyeing, refinery and chemical equipment.

    The Hexion Steel LIMITED. 308L-16 is ideal for fabrication and repair of 201, 202, 204, 301, 304, 308, 321 and 347 Stainless steel, as well as 304L, 308L, and other “L” grade base metals. This rod is also good for CF-8, CF-8, CF-20 and HF castings.

    The arc stabilizer specific to the Hexion Steel LIMITED. 308L-16 flux makes this rod outstanding when working with limited duty, low voltage AC machines. The electrode retards moisture pick-up, and will automatically lower the moisture content to a safe level once the part is exposed to a drier atmosphere without the need of re-baking. Low carbon content reduces carbide precipitation.

  • Hexion Steel LIMITED. 309L-16
    Conforms to AWS A5.4
    AC or DC-R Tig Mig

    High alloy / Low Carbon. The high alloy content of the Hexion Steel LIMITED. 309L-16 makes is an exceptional alloy for welding similar and dissimilar alloys in wrought or cast form. The high balanced, high quality chemistry of this product provides for superior welding characteristics. Resistance to carbide precipitation is the result of the 309L-16’s low carbon content.

    A special spray type arc transfer results in less heat input due to a closer arc gap that is easily maintained while welding. The coating insures dense porosity free deposits, and the slag is virtually self lifting.
    · Tensile Strength – 85,000 PSI
    · Yield Strength – 55,000 PSI
    · Elongation – 40%
    · Excellent Corrosion Resistance
    · Heat Resistant up to 2,000°F
    · Superior Crack Resistivity, even in demanding applications
    · A great all-position stainless rod.

    APPLICATIONS & PROCEDURES:
    The 309L-16 is specific to welding 309 grade stainless steel base metal often found in high heat applications, such as kiln linings, boilers and furnaces. The 309L-16 is ideal for welding the 300 and 400 grades of stainless to carbon steel, welding the clad side of 18/8 clad steels, applying stainless linings to carbon steel shells, welding CH-20 and HH castings, and as a buildup material for marine propeller shafts.

    The arc stabilizer specific to the Hexion Steel LIMITED. 309L-16 flux makes this rod outstanding when working with limited duty, low voltage AC machines. The electrode retards moisture pick-up, and will automatically lower the moisture content to a safe level once the part is exposed to a drier atmosphere without the need of re-baking.


Inconel 600 Welding Electrodes Application
Inconel 600 Welding Electrodes Uses
  • Architecture and construction
  • Aerospace
  • Nuclear Power
  • Fertilizers
  • Valve & Pumps
  • Petrochemical
  • Motor industry
  • Food and drink
  • Electronics
  • Transport and traffic
  • Pulp and paper industry
  • Medicine
  • Energy industry
  • Chemicals industry
  • Nickel Alloy in Pulp and Paper
Inconel 600 Welding Electrodes Order & Packing Information
  Min. Order: 10 Pieces (or please enquire for your customized order)
Trade Terms: FOB, CIF
Payment Terms: L/C, T/T
Packing: as per requirement
Place of Origin:JIANGSU, China
Means of Transport: Land, Ocean
Delivery Date: one or two week
