we are a company focused on engineering and business activities in the area of environmental technologies. Our Product Supply Division offers a broad portfolio of Steel Flanges and ASTM B127 Monel 400 Plates. When you place an order with Hexion Steel LIMITED. you will receive the products that will stand up in service from people that will stand behind their product.

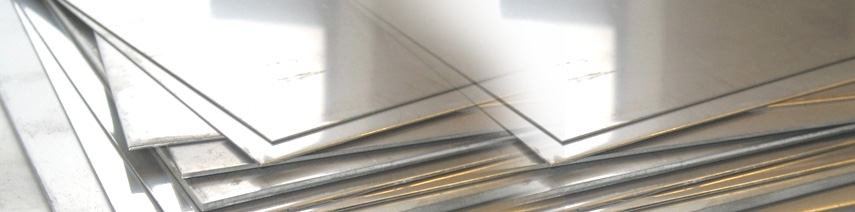

ASTM B127 Monel 400 Plates
Specifications
| Standards |
Designation |
| ASTM |
B 127 |
| ASME |
SB 127 |
| Monel 400 Standards |
| UNS |
N04400 |
| Werkstoff Nr. |
2.4360 |
| Sizes |
Availability |
| 0.4mm |
|
| 0.5mm |
|
| 0.8mm |
|
| 1mm |
|
| 1.2mm |
|
| 1.6mm |
|
| 2mm |
|
| 3mm |
|
| 4mm |
|
| 5mm |
|
| 6mm |
|
| 8mm |
|
| 10mm |
|
| 12mm |
|
| 16mm |
|
| 20mm |
|
| 25mm |
|
Dimensions
Chemical Composition
|
Monel 400 |
| Ni |
63.0 min |
| Fe |
1.0 – 2.5 |
| C |
0.3 max |
| Mn |
2.0 max |
| Si |
0.5 max |
| Cu |
28.0 – 34.0 |
| Al |
0.50 max |
| S |
0.02 max |
Mechanical & Physical Properties – Monel 400
| Density |
8.8 g/cm3 |
| Melting Point |
1350 °C (2460 °F) |
| Tensile Strength |
Psi – 80000 , MPa – 550 |
| Yield Strength (0.2%Offset) |
Psi – 35000 , MPa – 240 |
| Elongation |
40 % |
