Home / Products / Forged Fittings Type Thread Fittings / ASME B16.11 / BS3799 45° Threaded Elbow
We are 45 Degree Threaded Elbow Manufacturer, 45 Degree Threaded Elbow Exporter, 45 Degree Threaded Elbow Supplier.

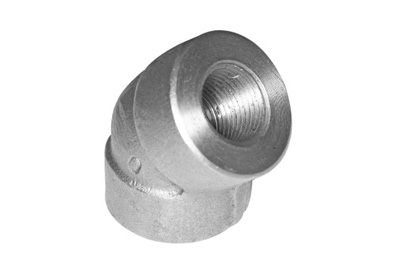

ASME B16.11 / BS3799 45° Threaded Elbow
Size |
Class |
Range |
Dimension |
Specification |
1/4" to 4" |
2000, 3000, 6000, 9000 |
Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union, Weldolet, Sockolet, Threadolet |
ANSI B 16.11 |
ASTM A 182 |
SocketWeld 45 ELL 3000#
SocketWeld 45 ELL 6000#
Threaded 45 ELL 2000#
Threaded 45 ELL 3000#
Threaded 45 ELL 6000#
Nickel Alloy 45 degree Elbow
ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Copper Alloy Steel 45 degree Elbow
ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Stainless Steel 45 degree Elbow
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H
Duplex Steel 45 degree Elbow
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel 45 degree Elbow
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel 45 degree Elbow
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91
Types : Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
45 degree Elbow Size : 1/2” NB TO 24” NB.
Dimensions
Threaded 45 Degree Elbow
Class 2000 |
Nominal Pipe Size |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
2 1/2 |
3 |
4 |
B |
- |
29/32 |
1 1/16 |
1 5/16 |
1 9/16 |
1 27/32 |
2 7/32 |
2 1/2 |
3 1/32 |
3 11/16 |
4 5/16 |
5 3/4 |
F |
- |
3/4 |
3/4 |
1 |
1 1/8 |
1 1/4 |
1 5/16 |
1 3/8 |
1 11/16 |
2 1/16 |
2 1/2 |
3 1/8 |
Wt |
- |
0.188 |
0.236 |
0.435 |
0.740 |
1.058 |
1.375 |
1.740 |
2.883 |
7.750 |
11.313 |
19.125 |
|
Class 3000 |
|
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
2 1/2 |
3 |
4 |
B |
29/32 |
1 1/16 |
1 5/16 |
1 9/16 |
1 27/32 |
2 7/32 |
2 1/2 |
3 1/32 |
3 11/32 |
4 |
4 3/4 |
6 |
F |
3/4 |
3/4 |
1 |
1 1/8 |
1 1/4 |
1 5/16 |
1 3/8 |
1 11/16 |
1 3/4 |
2 1/16 |
2 1/2 |
3 1/8 |
Wt |
0.250 |
0.290 |
0.500 |
0.750 |
1.188 |
1.988 |
2.235 |
3.000 |
4.930 |
7.375 |
13.588 |
19.063 |
|
Class 6000 |
|
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
2 1/2 |
3 |
4 |
B |
1 1/6 |
1 5/16 |
1 9/16 |
1 27/32 |
2 7/32 |
2 1/2 |
3 1/32 |
3 11/32 |
4 |
4 3/4 |
5 3/4 |
- |
F |
3/4 |
1 |
1 1/8 |
1 1/4 |
1 5/16 |
1 3/8 |
1 11/16 |
1 3/4 |
2 1/16 |
2 1/2 |
3 1/8 |
- |
Wt |
0.250 |
0.640 |
0.500 |
1.438 |
2.188 |
2.785 |
4.688 |
5.750 |
9.500 |
15.000 |
30.563 |
- |
