We bring in for our clients stainless steel swage nipple that are used for permanently welding a connection or removable thread connection. Our range of swage Nipple made from superior quality raw material that is procured from the reliable vendors of the industries. These fittings can easily endure high temperature and pressure and are available in various specifications as per the clients’ specific requirements.

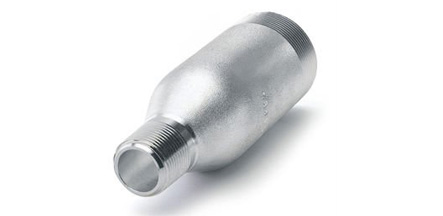

ASME B16.11 / BS3799 Threaded Swage Nipple

ASME B16.11 / BS3799 Threaded Swage Nipple Manufacturer & Exporter

Size Class Range Dimension Specification
1/4" to 4" 2000, 3000, 6000, 9000 Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union, Weldolet, Sockolet, Threadolet ANSI B 16.11 ASTM A 182

Nickel Alloy Swage Nipple

ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Copper Alloy Steel Swage Nipple

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Stainless Steel Swage Nipple

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H

Duplex Steel Swage Nipple

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760

Carbon Steel Swage Nipple

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Swage Nipple

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Types : Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
Swage Nipple Size : 1/2” NB TO 24” NB.

Enquiry

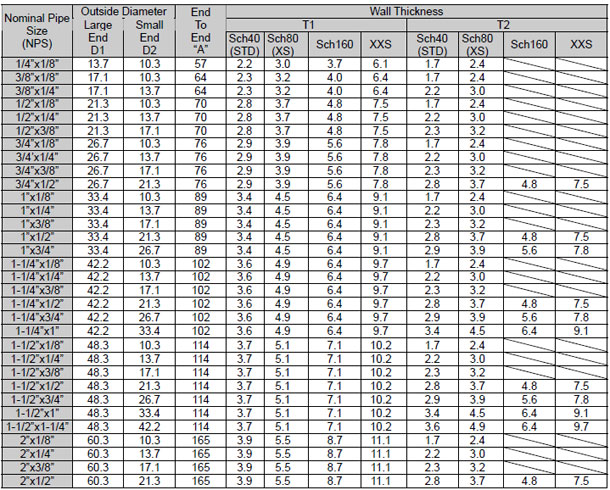

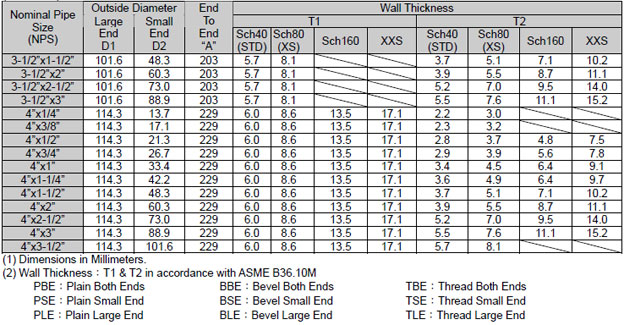

Dimensions

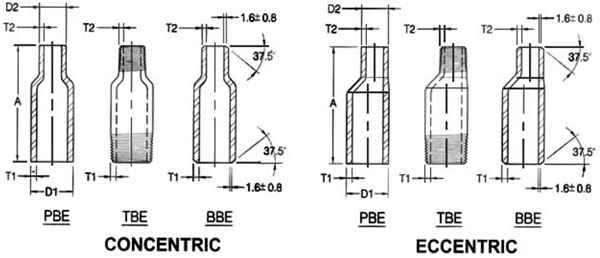

Swaged Nipple

asme_b1611_swage_nipple_fitting

asme_b1611_swage_nipple_fitting

asme_b1611_swage_nipple_fitting

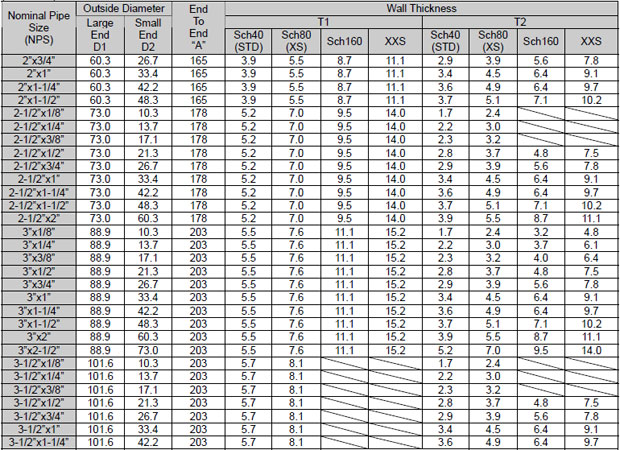

asme_b1611_swage_nipple_fitting_dimension3

asme_b1611_swage_nipple_fitting

asme_b1611_swage_nipple_fitting

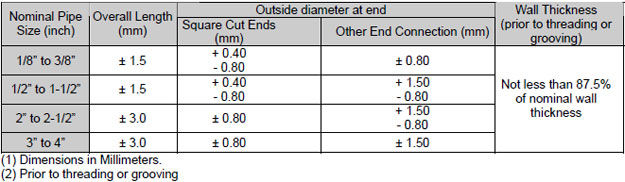

Dimensional Tolerance of Swaged Nipple

asme_b1611_swage_nipple_fitting_tolerance
