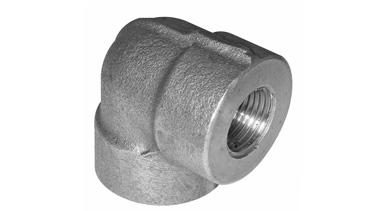

Seamless and welded Inconel 90 Degree Elbow are available for inconel fitting, in all long radius & short radius. Having close tolerances and excellent finishes, these seamless and welded elbow 90 deg provide zero leak, torque-free seal. These elbows are offered in various specifications of materials and their grade as well as threading and pressure ratings.

ASME B16.11 / BS3799 90° Elbow

Size	Class	Range	Dimension	Specification
1/4" to 4"	2000, 3000, 6000, 9000	Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union, Weldolet, Sockolet, Threadolet	ANSI B 16.11	ASTM A 182

Nickel Alloy 90 Deg Elbow

ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Copper Alloy Steel 90 Deg Elbow

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Stainless Steel 90 Deg Elbow

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H

Duplex Steel 90 Deg Elbow

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760

Carbon Steel 90 Deg Elbow

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel 90 Deg Elbow

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Types : Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc.
90 Deg Elbow Size : 1/2” NB TO 24” NB.

Dimensions

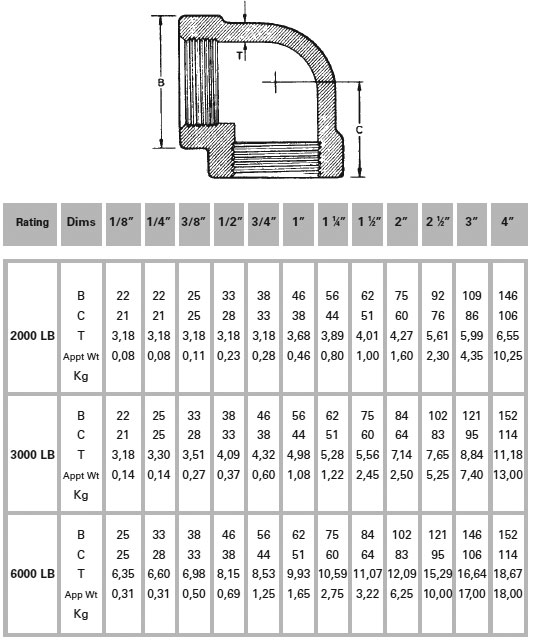

90° ELBOWS

Class 2000

Nominal Pipe Size

1/8

1/4

3/8

1/2

3/4

1

1 1/4

1 1/2

2

2 1/2

3

4

A

-

7/8

31/32

1 1/8

1 5/16

1 1/2

1 3/4

2

2 3/8

3

3 3/8

4 3/16

B

-

29/32

1 1/16

1 5/16

1 9/16

1 27/32

2 7/32

2 1/2

3 1/32

3 11/16

4 5/16

5 3/4

Wt

-

0.198

0.283

0.500

0.773

1.013

1.550

2.180

3.140

6.500

10.925

26.675

Class 3000

1/8

1/4

3/8

1/2

3/4

1

1 1/4

1 1/2

2

2 1/2

3

4

A

7/8

31/32

1 1/8

1 5/16

1 1/2

1 3/4

2

2 3/8

2 1/2

3 1/4

3 3/4

4 1/2

B

29/32

1 1/16

1 5/16

1 9/16

1 27/32

2 7/32

2 1/2

3 1/32

3 11/32

4

4 3/4

6

Wt

0.236

0.350

0.592

0.973

1.355

2.265

2.407

3.500

5.920

11.900

14.438

31.975

Class 6000

1/8

1/4

3/8

1/2

3/4

1

1 1/4

1 1/2

2

2 1/2

3

4

A

31/32

1 1/8

1 5/16

1 1/2

1 3/4

2

2 3/8

2 1/2

3 1/4

3 3/4

4 3/16

4 1/2

B

1 1/6

1 5/16

1 9/16

1 27/32

2 7/32

2 1/2

3 1/32

3 11/32

4

4 3/4

5 3/4

6

Wt

0.250

0.625

1.023

1.625

2.625

3.500

6.750

7.500

13.438

20.875

39.050

38.000



90° ELBOWS - THREADED - B16.11
