We are regular suppliers from China for Brazolet
|
|
Home / Products / Outlets / Brazolet
We are engaged in stock & manufacturer a wide assortment of Brazolet that are corrosion resistant, precisely designed & constructed, excellent in quality and yield better efficiency for which they are highly acknowledged in Chinan as well as overseas market. These are widely used in automotive and other sectors because of their supreme quality and unmatched features. Our Brazolet is available in various grades, standards and sizes as per the needs and requirements of the customers.

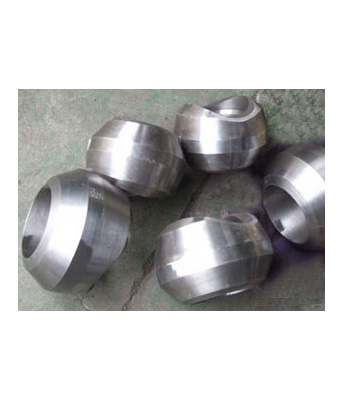

Brazolet
Brass Brazolet installation fittings with PVDF insert for the GF Signet 2551 insertion style Magmeter and the 515, 2536 & 2537 paddlewheel flow sensors.
- Up to 8 in. - PVDF insert, over 8 in. - PVC insert
- For use with copper pipe (SCH 40 ASTM)
- PTFE wetted material.

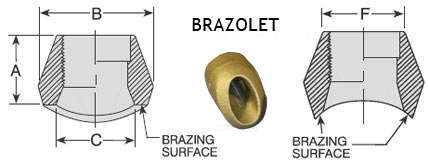

Dimensions
Brazolet® for IPS Pipe |
ASME SB-98 UNS C665500 Alloy A |
Outlet Sizes |
A |
B |
C |
Brazing Surface |
F-MIN. MIL-1183 |
1/4 |
11/16 |
1 |
9/16 |
0.188 |
0.700 |
3/8 |
13/16 |
1 1/4 |
3/4 |
0.190 |
0.855 |
1/2 |
1 |
1 7/16 |
7/8 |
0.220 |
1.020 |
3/4 |
1 1/16 |
1 3/4 |
1 1/8 |
0.240 |
1.250 |
1 |
1 1/4 |
2 1/8 |
1 7/16 |
0.270 |
1.535 |
1 1/4 |
1 5/16 |
2 9/16 |
1 3/4 |
0.300 |
1.900 |
1 1/2 |
1 3/8 |
2 7/8 |
2 |
0.330 |
2.160 |
2 |
1 1/2 |
3 1/2 |
2 9/16 |
0.360 |
2.675 |
2 1/2 |
1 13/16 |
4 1/8 |
3 |
0.384 |
3.215 |
3 |
2 |
4 13/16 |
3 11/16 |
0.442 |
3.880 |
4 |
2 1/4 |
6 |
4 3/4 |
0.476 |
4.940 |
5 |
2 5/8 |
7 1/16 |
5 9/16 |
0.656 |
6.163 |
Brazolet® for Tubing |
Type K, L, and M Tubing. ASME SB-98 UNS C65500 Alloy A |
Outlet Sizes |
A |
B |
C |
Brazing Surface |
F-MIN. MIL-1183 |
1/4 |
11/16 |
1 |
9/16 |
0.188 |
0.700 |
3/8 |
13/16 |
1 1/4 |
3/4 |
0.190 |
0.855 |
1/2 |
13/16 |
1 1/4 |
3/4 |
0.190 |
0.855 |
3/4 |
1 |
1 7/16 |
7/8 |
0.220 |
1.020 |
1 |
1 1/16 |
1 3/4 |
1 1/8 |
0.240 |
1.250 |
1 1/4 |
1 1/4 |
2 1/8 |
1 7/16 |
0.270 |
1.535 |
1 1/2 |
1 5/16 |
2 9/16 |
1 3/4 |
0.300 |
1.900 |
2 |
1 3/8 |
2 7/8 |
2 |
0.330 |
2.160 |
2 1/2 |
1 1/2 |
3 1/2 |
2 9/16 |
0.360 |
2.675 |
3 |
1 13/16 |
4 1/8 |
3 |
0.384 |
3.215 |
4 |
2 1/8 |
5 1/2 |
4 5/16 |
0.437 |
4.400 |
