Home / Products / Outlets / Flexolet Butt Weld / Socket Weld / Threaded
We are engaged in the manufacture and supply of a wide array of Socket Welds. Our range of Socket Welds is attached in the pipe in the recessed area of the valve or flange. Our range of Socket Welds is applicable for small pipe diameters and normally for small diameter piping. Leakage proof and corrosion resistant, this range helps in joining the pipes and valves. Moreover, our range is reckoned amongst the clients for its hassle free performance.
Flexolet Butt Weld / Socket Weld / Threaded
Butt Weld Flexolet
Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
MATERIALS :
Stainless Steel Butt Weld Flexolet – SS Butt Weld Flexolet
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Steel Butt Weld Flexolet
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Alloy Steel Butt Weld Flexolet – AS Butt Weld Flexolet
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91
Carbon Steel Butt Weld Flexolet – CS Butt Weld Flexolet
ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70
Low Temperature Carbon Steel Butt Weld Flexolet – LTCS Butt Weld Flexolet
A350 LF3/A350 LF2
Nickel Alloy Butt Weld Flexolet :
Standard: ASTM / ASME SB 564 / 160 / 472.
UNS 10276 (HASTELLOY C 276 Butt Weld Flexolet)
UNS 2200 (NICKEL 200 Butt Weld Flexolet)
UNS 2201 (NICKEL 201 Butt Weld Flexolet)
UNS 4400 (MONEL 400 Butt Weld Flexolet)
UNS 8020 (ALLOY 20 Butt Weld Flexolet)
UNS 8825 INCONEL 825 Butt Weld Flexolet)
UNS 6600 (INCONEL 600 Butt Weld Flexolet)
UNS 6601 (INCONEL 601 Butt Weld Flexolet)
UNS 6625 (INCONEL 625 Butt Weld Flexolet)
Copper Alloy Butt Weld Flexolet
ASTM / ASME SB 61 / 62 / 151 / 152.
C 70600 (CU -NI- 90/10) – Cupro Nickel
Butt Weld Flexolet
C 71500 (CU -NI- 70/30) – Copper Nickel
Butt Weld Flexolet
UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200
VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1

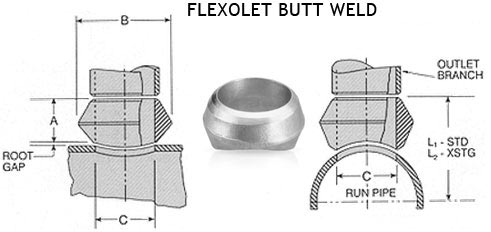

Dimensions
Standard |
Outlet Size |
Dimensions |
Appx Weight |
Inches |
A |
B |
C |
Pounds |
3/8 |
3/4 |
1 |
0.493 |
0.10 |
1/2 |
3/4 |
1 1/8 |
0.622 |
0.12 |
3/4 |
7/8 |
1 1/2 |
0.824 |
0.22 |
1 |
1 1/16 |
1 13/16 |
1.062 |
0.32 |
1 1/4 |
1 1/4 |
2 1/4 |
1.38 |
0.64 |
1 1/2 |
1 5/16 |
2 9/16 |
1.625 |
0.78 |
2 |
1 1/2 |
3 5/16 |
2.313 |
1.14 |
2 1/2 |
1 5/8 |
3 21/32 |
2.500 |
1.94 |
3 |
1 3/4 |
4 9/32 |
3.125 |
2.60 |
4 |
2 |
5 3/8 |
4.145 |
4.12 |
6 |
2 3/8 |
7 21/32 |
6.112 |
11 |
|
Extra Strong |
Outlet Size |
Dimensions |
Appx Weight |
Inches |
A |
B |
C |
Pounds |
3/8 |
3/4 |
1 |
0.423 |
0.10 |
1/2 |
3/4 |
1 1/8 |
0.546 |
0.12 |
3/4 |
7/8 |
1 1/2 |
0.742 |
0.18 |
1 |
1 1/16 |
2 13/16 |
1.062 |
0.36 |
1 1/4 |
1 1/4 |
2 1/4 |
1.278 |
0.55 |
1 1/2 |
1 5/16 |
2 9/16 |
1.625 |
0.68 |
2 |
1 1/2 |
3 5/16 |
2.313 |
1.24 |
2 1/2 |
1 5/8 |
3 21/32 |
2.500 |
2.26 |
3 |
1 3/4 |
4 9/32 |
3.125 |
2.84 |
4 |
2 |
5 3/8 |
4.145 |
4.56 |
6 |
3 1/16 |
7 23/32 |
5.800 |
15.00 |
