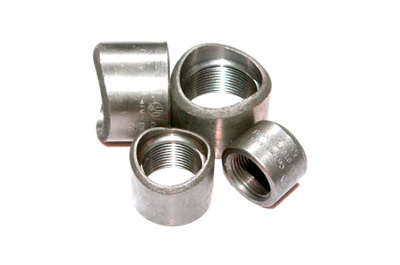

Home / Products / Outlets / Threadolet Our clients can avail from a wide range of Threadolet that is fabricated from nickel alloy. These Threadolet are hot dip galvanized and electro polished, and thus are reliable in performance and functional for longer time.ThreadoletThreadolet : 1/2” to 24” in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75 Stainless Steel Threadolet Copper Alloy Threadolet Nickel Alloy ThreadoletStandard :

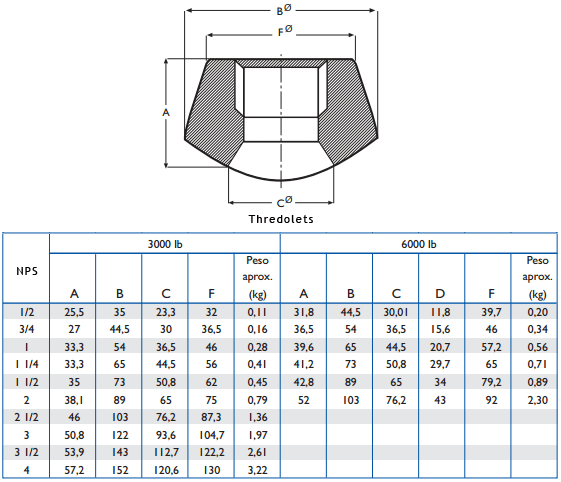

DimensionsDimensions reducing and size on size Thredolets® acc to MSS-SP97
|
REDUCING SIZES |
||||
NPS | Pressure Class 3000 - NPS 1/2 up to NPS 6 |
|||
A |
B |
C |
||
1/2 |
INCH MM |
1 25.40 |
1-13/32 35.71 |
15/16 23.81 |
3/4 |
INCH MM |
1-1/16 26.98 |
1-23/32 43.65 |
1-5/32 29.36 |
1 |
INCH MM |
1-5/16 33.33 |
2 50.80 |
1-7/16 36.51 |
1 ¼ |
INCH MM |
1-5/16 33.33 |
2-9/16 65.08 |
1-3/4 44.45 |
1 ½ |
INCH MM |
1-3/8 34.92 |
2-27/32 72.23 |
2 50.80 |
2 |
INCH MM |
1-1/2 38.10 |
3-15/32 88.10 |
2-9/16 65.08 |
2 ½ |
INCH MM |
1-13/16 46.03 |
4-1/16 103.18 |
3 76.20 |
3 |
INCH MM |
2 50.80 |
4-13/16 122.23 |
3-11/16 93.66 |
3 ½ |
INCH MM |
2-1/8 53.975 |
5-7/32 132.55 |
4 101.6 |
4 |
INCH MM |
2-1/4 57.15 |
5-31/32 151.60 |
4-3/4 120.65 |
5 |
INCH MM |
2-5/8 66.67 |
7-5/16 185.73 |
5-9/16 141.28 |
6 |
INCH MM |
2-3/4 69.85 |
8-5/8 219.07 |
6-11/16 169.86 |
REDUCING SIZES |
||||
NPS |
Pressure Class 6000 - NPS 1/2 up to NPS 2 |
|||
A |
B |
C |
||
1/2 |
INCH MM |
1-1/4 31.75 |
1-23/32 43.65 |
3/4 19.05 |
3/4 |
INCH MM |
1-7/16 36.51 |
1-61/64 49.60 |
1 25.40 |
1 |
INCH MM |
1-9/16 39.68 |
2-7/16 61.91 |
1-5/16 33.33 |
1 ¼ |
INCH MM |
1-5/8 41.27 |
2-23/32 69.05 |
1-1/2 38.10 |
1 ½ |
INCH MM |
1-11/16 42.86 |
3-1/4 82.55 |
1-15/16 49.21 |
2 |
INCH MM |
2-1/16 52.38 |
4-1/32 102.39 |
2-3/4 69.85 |
SIZE ON SIZE |
|||||
NPS | Pressure Class 3000 - NPS 1/2 up to NPS 6 |
||||
A |
B |
C |
D |
||
1/2 |
INCH MM |
1 25.40 |
1-3/8 34.92 |
15/16 23.81 |
5/8 15.87 |
3/4 |
INCH MM |
1-1/16 26.98 |
1-5/8 41.27 |
1-3/16 30.16 |
13/16 20.63 |
1 |
INCH MM |
1-5/16 33.33 |
2 50.80 |
1-7/16 36.51 |
1-1/16 26.98 |
1 ¼ |
INCH MM |
1-5/16 33.33 |
2-3/8 60.32 |
1-3/4 44.45 |
1-3/8 34.92 |
1 ½ |
INCH MM |
1-3/8 34.92 |
2-7/8 73.02 |
2 50.80 |
1-5/8 41.27 |
2 |
INCH MM |
1-1/2 38.10 |
3-1/2 88.90 |
2-9/16 65.08 |
2-1/16 52.38 |
2 ½ |
INCH MM |
1-29/32 48.41 |
4-1/16 103.18 |
3 76.20 |
2-1/2 63.50 |
3 |
INCH MM |
2 50.80 |
4-13/16 122.23 |
3-11/16 93.66 |
3-1/16 77.78 |
3 ½ |
INCH MM |
2-1/8 53.97 |
5-3/8 136.52 |
4-7/16 112.71 |
3-9/16 90.48 |
4 |
INCH MM |
2-1/4 57.15 |
6-1/16 153.98 |
4-3/4 120.65 |
4-1/16 103.18 |
5 |
INCH MM |
2-7/16 61.91 |
7-1/4 184.15 |
5-1/4 133.35 |
5-1/4 133.35 |
6 |
INCH MM |
2-3/4 69.85 |
8-11/16 220.66 |
5-3/4 146.05 |
5-3/4 146.05 |
