We are one of the renowned manufacturers of Carbon Steel Weldolet, offering a range that is made from high quality material. These carbon steel weldolet are made in compliance with the industry standards and are available in several specifications as per the demands. Our range is widely used in diverse industries and is popular for its features like corrosion resistance, high durability and long working life.

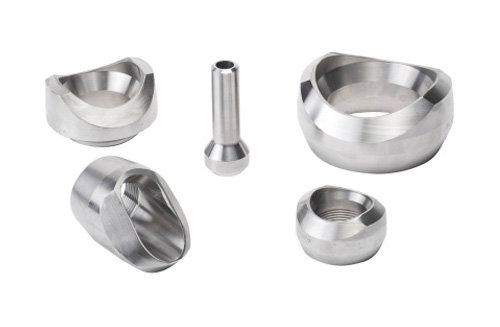

Weldolet
Variations:
- 3000# & 6000#
- But-weld : SCH10S - SCH40S - SCH80S - SCH160 - SCHXXS
Standards:
- ASTM B564 - ASME SB564 - 'Standard Specification for Nickel Alloy Forgings'
- ASME B16.11 - 'Forged Fittings Socket - Welding and Threaded'
- MSS SP-97 - 'Integrally Reinforced Forged Branch Outlet Fittings - Socket Welding, Threaded and Buttwelding Ends'
Size : 1/8" NB to 4" NB. (Socket weld & Threaded)
Class : 150, 3000, 6000, 9000
Dimensions:
Outlet : 1/2" à 8"
Run pipe : 1/2" à 60"
Nickel Alloy
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ), UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276) ASTM / ASME SB 160UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472UNS 8020 ( ALLOY 20 / 20 CB 3)
Copper Alloy
ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.
ASTM / ASME SB 151 UNS NO.70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.
Stainless Steel
ASTM / ASME SA 182 F304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex Steel
ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel
ASTM / ASME A 105.
ASTM / ASME A 350 LF 2.
Alloy Steel
ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
Nickel Alloy Weldolet Standard :
- ASTM / ASME SB 564 / 160 / 472
- Nickel 200 Weldolet – UNS N02200
- Nickel 201 Weldolet – UNS N02201
- Monel 400 Weldolet – UNS N04400
- Monel K500 Weldolet – UNS N05500
- Inconel K600 Weldolet – UNS N06600
- Inconel 601 Weldolet – UNS N06601
- Inconel 625 Weldolet – UNS N06625
- Inconel 800 Weldolet – UNS N08800
- Inconel 800H Weldolet – UNS N08810
- Inconel 825 Weldolet – UNS N08825
- Hastelloy C276 Weldolet – UNS N10276
- Alloy 20 Weldolet – UNS N08020
Dimensions
Outlet
Nominal Pipe Size |
Face to Crotch (L) |
Standard (SCH40S) |
XS (SCH80S) |
SCH160 |
Réduit |
Egal |
Réduit |
Egal |
Réduit |
Egal |
1/8" |
16 |
- |
16 |
- |
- |
- |
1/4" |
16 |
- |
16 |
- |
- |
- |
3/8" |
16 |
- |
19 |
- |
- |
- |
1/2" |
19 |
19 |
19 |
19 |
28 |
28 |
3/4" |
22 |
22 |
22 |
22 |
32 |
32 |
1" |
27 |
27 |
27 |
27 |
38 |
38 |
1 1/4" |
32 |
32 |
32 |
30 |
44 |
44 |
1 1/2" |
33 |
33 |
33 |
32 |
51 |
51 |
2" |
38 |
38 |
38 |
38 |
55 |
55 |
2 1/2" |
41 |
41 |
41 |
41 |
62 |
62 |
3" |
44 |
44 |
44 |
44 |
73 |
73 |
3 1/2" |
48 |
51 |
48 |
51 |
- |
- |
4" |
51 |
51 |
51 |
51 |
84 |
84 |
5" |
57 |
57 |
57 |
57 |
94 |
94 |
6" |
60 |
60 |
78 |
78 |
105 |
105 |
8" |
70 |
70 |
99 |
99 |
- |
- |
10" |
78 |
78 |
94 |
89 |
- |
- |
12" |
86 |
86 |
103 |
100 |
- |
- |
14" |
89 |
89 |
100 |
105 |
- |
- |
16" |
94 |
94 |
106 |
113 |
- |
- |
18" |
97 |
103 |
111 |
119 |
- |
- |
20" |
102 |
117 |
119 |
127 |
- |
- |
24" |
116 |
137 |
140 |
140 |
- |
- |
The dimensions are in millimeters
Source : MSS SP-97 - 2006

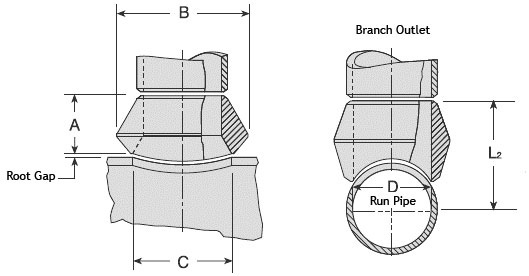

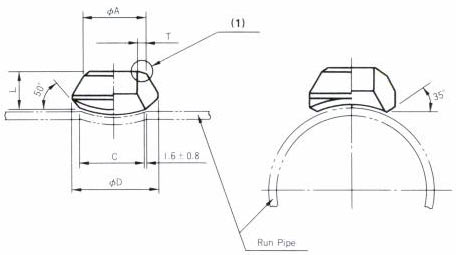

Dimensions - Weldolet Size on Size XS
Outlet Size
Inches |
A |
B |
C |
D |
Apprx. Weight
Pounds |
1/2 |
3/4 |
1 3/8 |
15/16 |
5/8 |
0.15 |
3/4 |
7/8 |
1 5/8 |
1 3/16 |
13/16 |
0.25 |
1 |
1 1/16 |
2 |
1 7/16 |
1 1/32 |
0.40 |
1 1/4 |
1 1/4 |
2 7/16 |
1 3/4 |
1 3/8 |
0.70 |
1 1/2 |
1 5/16 |
2 7/8 |
2 |
1 5/8 |
0.90 |
2 |
1 1/2 |
3 1/2 |
2 9/16 |
2 1/16 |
1.60 |
2 1/2 |
1 5/8 |
4 1/16 |
3 |
2 7/16 |
2.50 |
3 |
1 3/4 |
4 13/16 |
3 11/16 |
3 1/16 |
4.10 |
3 1/2 |
2 |
5 3/8 |
3 7/8 |
3 9/16 |
5.10 |
4 |
2 |
6 |
4 3/4 |
4 |
7.50 |
5 |
2 1/4 |
7 1/8 |
5 9/16 |
5 1/16 |
9.50 |
6 |
3 1/16 |
8 7/8 |
6 11/16 |
6 1/16 |
15.00 |
8 |
3 7/8 |
10 5/8 |
8 11/16 |
7 5/8 |
32.00 |
10 |
3 1/2 |
12 7/8 |
10 7/16 |
9 3/4 |
46.00 |
12 |
3 15/16 |
15 3/16 |
13 |
11 3/4 |
61.00 |
14 |
4 1/8 |
16 11/16 |
14 5/16 |
13 |
75.00 |
16 |
4 7/16 |
18 7/8 |
16 1/2 |
15 |
115.00 |
18 |
4 11/16 |
21 1/8 |
18 5/8 |
17 |
130.00 |
20 |
5 |
23 3/8 |
20 13/16 |
19 |
187.00 |
24 |
5 1/2 |
27 7/8 |
25 1/8 |
23 |
316.00 |
26 |
5 3/4 |
30 1/8 |
27 1/4 |
25 |
370.00 |
30, 36 and larger sizes available on application |
Conventional Run Size Combinations
Standard Weight Weldolet, Extra Strong Weldolet, |
Class 3000 Thredolet, Class 3000 Sockolet, Extra Strong Nipolet |
Run Sizes |
Outlet Size Inches |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
3/8 |
3/8 |
1/2 |
1/2 |
3/4 |
1 |
1 1/4 |
1/2 |
1/2 |
1 3/4 |
3/4 |
1 |
1 1/4 |
1 1/2 |
1 3/4 |
1 3/4 |
1 1/2 - 1 1/4 |
1 |
1 1/2 - 1 1/4 |
1 1/2 |
2 |
2 1/2 - 1 1/4 |
1 1/2 - 1 1/4 |
36-3 |
1 1/2 - 1 1/4 |
2 1/2 - 2 |
2 |
2 1/2 |
36-3 |
36-3 |
flat |
2 1/2 - 2 |
5-3 |
2 1/2 |
3 1/2 - 3 |
flat |
flat |
|
8-3 |
12-6 |
3 1/2 - 3 |
5-4 |
|
|
|
36-10 |
36-14 |
5 - 4 |
8-6 |
|
|
|
flat |
flat |
10 - 6 |
18-10 |
|
|
3/4 - 1/2 |
|
|
36 - 12 |
36-20 |
|
|
36 - 1 |
|
|
flat |
flat |
|
|
flat |
|
|
|
|
|
Outlet sizes 8, 10, 12, 14, 16. 18, 24, 26. 20 order to specific size combination.
Size consolidation for Weldolets only |
Run Sizes |
Outlet Size Inches |
1 1/2 |
2 |
2 1/2 |
3 |
3 1/2 |
4 |
5 |
6 |
1 1/2 |
2 |
2 1/2 |
3 |
3 1/2 |
4 |
5 |
6 |
2 |
2 1/2 |
3 |
3 1/2 |
4 |
5 |
6 |
8 |
2 1/2 |
3 |
3 1/2 |
4 |
5 |
6 |
8 |
10 |
3 |
4 - 3 1/2 |
4 |
5 |
6 |
8 |
10 |
14-12 |
4 - 3 1/2 |
5 |
5 |
6 |
8 |
10 |
12 |
16 |
6-5 |
6 |
6 |
8 |
10 |
14-12 |
14 |
18 |
12-8 |
10-8 |
8 |
10 |
14-12 |
20-16 |
18-16 |
22-20 |
24-14 |
18-12 |
12-10 |
14-12 |
20-16 |
22 |
22-20 |
28-24 |
36-26 |
36-20 |
18-14 |
20-16 |
36-24 |
36-24 |
28-24 |
36-30 |
flat |
flat |
36-20 |
36-24 |
flat |
flat |
36-30 |
flat |
|
|
flat |
flat |
|
|
flat |
|
Class 6000 Thredolet, Class 6000 Sockolet, XXS Nipolet |
Run Sizes |
Outlet Size Inches |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
1/2 |
1/2 |
1 3/4 |
1 |
1 1/2 - 1 1/4 |
1 1/2 |
2 |
2 1/2 |
1 3/4 |
3/4 |
2 - 1 1/4 |
2 1/2 - 1 1/4 |
2 1/2 - 2 |
2 1/2 - 2 |
2 1/2 |
3 |
2 1/2 - 1 1/4 |
1 |
6 - 2 1/2 |
10-3 |
10-3 |
3 1/2 - 3 |
3 1/2 - 3 |
4 |
36-3 |
1 1/2 - 1 1/4 |
36-8 |
36-12 |
36-12 |
8-4 |
5-4 |
5 |
flat |
2 1/2 - 2 |
flat |
flat |
flat |
36-10 |
8-6 |
6 |
|
8-3 |
|
|
|
flat |
18-10 |
10-8 |
|
36-10 |
|
|
|
|
36-20 |
20-12 |
|
flat |
|
|
|
|
flat |
36-24 |
|
|
|
|
|
|
|
flat |
Schedule 160, XXS Weldolet |
Run Sizes |
Outlet Size Inches |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
2 1/2 |
3 |
4 |
1/2 |
1 3/4 |
1 |
1 1/2 - 1 1/4 |
1 1/2 |
2 |
2 1/2 |
3 |
4 |
1 1/4 - 3/4 |
2 - 1 1/4 |
2 1/2 -1 1/4 |
2 1/2 -2 |
2 1/2 - 2 |
2 1/2 |
3 |
3 1/2 |
6 |
36 - 1 1/2 |
6 - 2 1/2 |
10-3 |
10-3 |
3 1/2 -3 |
3 1/2 -3 |
3 1/2 |
4 |
8 |
flat |
36-8 |
36-12 |
36-12 |
8-4 |
5-4 |
4 |
5 |
10 |
|
flat |
flat |
flat |
20-10 |
8-6 |
5 |
6 |
12 |
|
|
|
|
22 |
18-10 |
8-6 |
8 |
14 |
|
|
|
|
36-24 |
36-20 |
12-10 |
10 |
16 |
|
|
|
|
flat |
flat |
18-14 |
12 |
18 |
|
|
|
|
|
|
36-20 |
14 |
20 |
|
|
|
|
|
|
flat |
16 |
22 |
|
|
|
|
|
|
|
18 |
24 |
|
|
|
|
|
|
|
20 |
|
|
|
|
|
|
|
|
22 |
|
|
|
|
|
|
|
|
24 |
|
|
|
|
|
|
|
|
flat |
|
BN-DS-C12 Pipe fitting weldolet overall dimensions
The below standard gives overall dimensions for study purposes of general weldolets.
HEADER |
PIPE WEIGHT |
WELDOLET SIZE |
SIZE |
OR SCH. NR. |
2" |
3" |
4" |
6" |
8" |
10" |
12" |
14" |
16" |
18" |
20" |
24" |
2" |
STD-40
XS-80 |
70 |
|
|
|
|
|
|
|
|
|
|
|
|
XXS-160 |
87 |
|
|
|
|
|
|
|
|
|
|
|
3" |
STD-40
XS-80 |
84 |
91 |
|
|
|
|
|
|
|
|
|
|
|
XXS-160 |
101 |
119 |
|
|
|
|
|
|
|
|
|
|
4" |
STD-40
XS-80 |
97 |
103 |
111 |
|
|
|
|
|
|
|
|
|
|
XXS-160 |
114 |
132 |
144 |
|
|
|
|
|
|
|
|
|
|
STD-40 |
124 |
130 |
138 |
148 |
|
|
|
|
|
|
|
|
6" |
XS-80 |
124 |
130 |
138 |
165 |
|
|
|
|
|
|
|
|
|
XXS-160 |
141 |
159 |
171 |
192 |
|
|
|
|
|
|
|
|
|
STD-40 |
149 |
156 |
164 |
176 |
183 |
|
|
|
|
|
|
|
8" |
XS-80 |
149 |
156 |
164 |
191 |
197 |
|
|
|
|
|
|
|
|
XXS-160 |
167 |
184 |
197 |
218 |
224 |
|
|
|
|
|
|
|
|
STD-40 |
176 |
183 |
191 |
205 |
210 |
218 |
|
|
|
|
|
|
10" |
XS-80 |
176 |
183 |
191 |
218 |
238 |
235 |
|
|
|
|
|
|
|
XXS-160 |
194 |
211 |
224 |
245 |
251 |
265 |
|
|
|
|
|
|
|
STD |
202 |
208 |
216 |
228 |
255 |
245 |
251 |
|
|
|
|
|
12" |
XS |
202 |
208 |
216 |
243 |
264 |
267 |
265 |
|
|
|
|
|
|
XXS-160 |
219 |
237 |
249 |
270 |
276 |
291 |
324 |
|
|
|
|
|
14" |
STD |
218 |
224 |
232 |
245 |
251 |
259 |
267 |
270 |
|
|
|
|
|
XS |
218 |
224 |
231 |
239 |
279 |
270 |
278 |
286 |
|
|
|
|
16" |
STD |
243 |
249 |
257 |
270 |
276 |
284 |
292 |
295 |
300 |
|
|
|
|
XS |
243 |
249 |
257 |
284 |
305 |
293 |
303 |
306 |
319 |
|
|
|
18" |
STD |
268 |
275 |
283 |
295 |
302 |
310 |
318 |
321 |
325 |
335 |
|
|
|
XS |
268 |
275 |
283 |
310 |
330 |
321 |
329 |
332 |
338 |
352 |
|
|
20" |
STD |
294 |
300 |
308 |
321 |
327 |
335 |
343 |
346 |
351 |
356 |
376 |
|
|
XS |
294 |
300 |
308 |
335 |
356 |
346 |
354 |
557 |
364 |
370 |
386 |
|
24" |
STD |
345 |
351 |
359 |
372 |
378 |
386 |
394 |
397 |
402 |
406 |
411 |
446 |
|
XS |
345 |
351 |
359 |
386 |
406 |
397 |
405 |
408 |
414 |
421 |
429 |
449 |
NOTES:
- WHEN A WELDOLET WITH A LIGHTER WALL THICKNESS, OTHER THAN THOSE LISTED, IS REQUIRED, USE THE DIMENSION OF THE NEAREST HEAVIER WALL.
- EXAMPLE FOR ORDERING WELDOLETS.
SIZE DESCRIPTION MATERIAL
10 x 4 WELDOLET SCH. 40 C.S
(Header size X Weldolet size)
