We is offering an impeccable gamut of Weldoflange/Nipoflange, which conforms to the industry laid quality benchmarks to our clients. The offered Weldoflange/Nipoflange radiate several features such resistance against corrosion and longer service life, as these are fabricated using high-grade stainless and carbon steel.

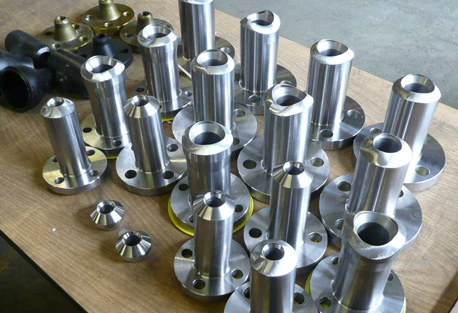

Nipoflange

Nipoflange Manufacturer & Exporter

Stainless Steel Nipoflange
ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347 H

Duplex Steel Nipoflange
ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.

Carbon Steel Nipoflange
ASTM / ASME A 105.
ASTM / ASME A 350 LF 2.

Alloy Steel Nipoflange
ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.

Nickel Alloy Nipoflange
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ), UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276

(HASTELLOY C 276 ) Nipoflange
ASTM / ASME SB 160 UNS 2201 (NICKEL 201 )
ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

Copper Alloy Nipoflange
ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.
ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI-90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.

Enquiry

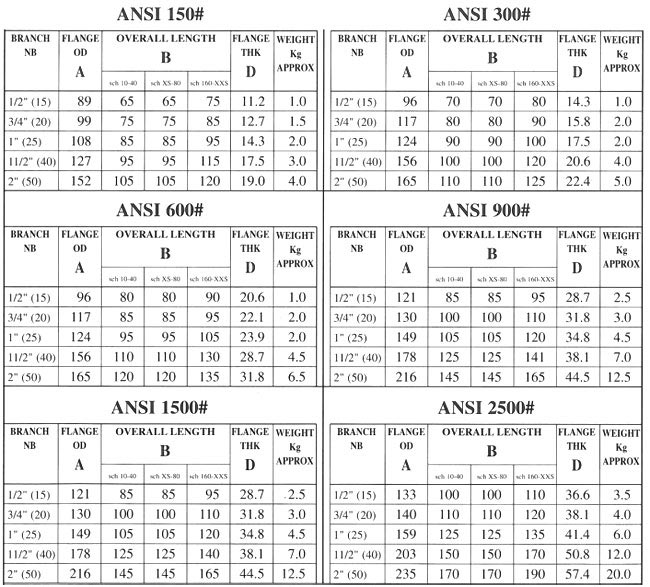

Dimensions

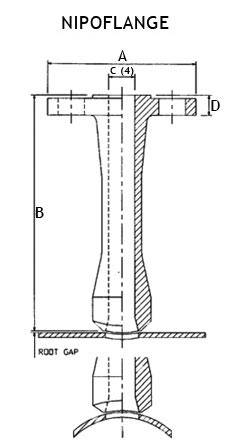

The Weldoflange and Nipoflange is a combination of a Welding Neck flange and a supposedly Weldolet or Nipolet. The 2 components are manufactured in one piece, and not welded. These flanges are primarily in Branchconnections.

Nipoflange

ansi-nipoflange
