We manufacturers ANSI B16.47 FLANGE are designed in compliance with international quality standards. Available in all types and pressures, these flanges are widely used for pipe-to-pipe connections. The ANSI B16.47 FLANGE includes a flange with one specified diameter having a bore of a different and smaller diameter. Except for the bore and hub dimensions, the ANSI B16.47 FLANGE will have dimensions of the larger pipe size. To increase the size of the flange, these are used at the outlet side of the expansion joint.
ANSI B16.47 FLANGE
A Quick Note on B16.47
ASME has incorporated most of the MSS-SP44 specification into B16.47 Series
A and most of the API 605 Specification into B16.47 series B. They have also added
Blinds to these two specs. You may note that these specs include only Weld Necks
and Blinds. For Slip-On’s over 24” you must refer to either Industry Standard (which
are not automatically covered by ASME) or Boiler Code Flanges. If you need help
deciding which flange best suits your application feel free to contact us.

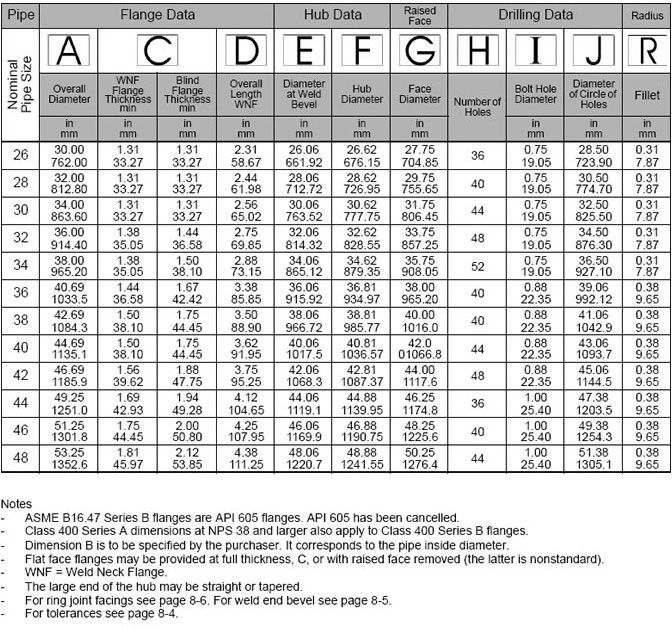

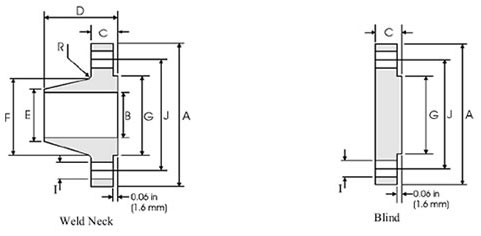

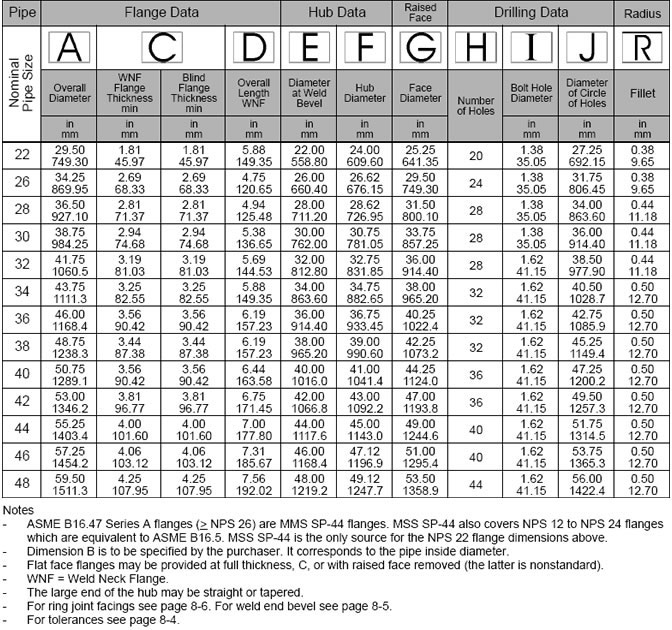

Dimensions
