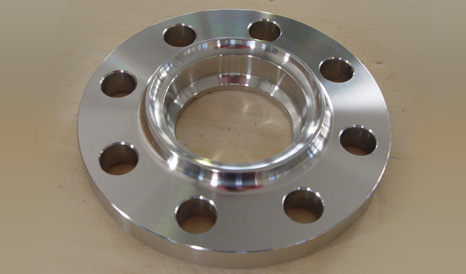

Home / Products / Flanges / ASME B16.5 Lapped Joint Flanges Our company's quality assurance is carried throughout the process from the raw material purchasing to processing, packing, storage and transportation. Every process strictly conforms to the ISO 9001:2008. "Quality First" is our promise forever to any of our customers. Our ASME B16.5 Lapped Joint Flanges are 100% inspected before being packed and dispatched & all our materials are tested to International standards. We have 3 levels to check quality of ASME B16.5 Lapped Joint Flanges. We also accept any Third Party of Inspection appointed by our customers, such as Lloyd's Register, TUV, DNV, BV, SGS, IEI, SAI and etc. ASME B16.5 Lapped Joint Flanges

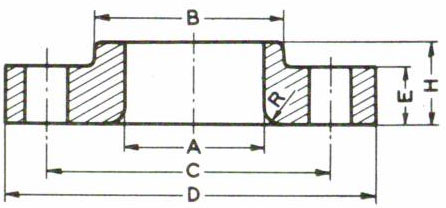

DimensionsDiameter : 1/2" à 24" Pressure class : 150# - 300# - 600# - 1500# Standards
150Lbs - 300Lbs - 600LbsThe tables below show the most common sizes but are not exhaustive.
|
Drilling | ||||||||
---|---|---|---|---|---|---|---|---|
Nominal Bore | Dia. (D) |
Thick. (E) |
Dia. (B) |
Dia. (A) |
Height (H) |
Nbr | Holes | Dia. (C) |
1/2" | 90 | 11.2 | 30 | 22.9 | 16 | 4 | 15.87 | 60.3 |
3/4" | 100 | 12.7 | 38 | 28.2 | 16 | 4 | 15.87 | 69.9 |
1" | 110 | 14.3 | 49 | 34.9 | 17 | 4 | 15.87 | 79.4 |
1 1/4" | 115 | 15.9 | 59 | 43.7 | 21 | 4 | 15.87 | 88.9 |
1 1/2" | 125 | 17.5 | 65 | 50.0 | 22 | 4 | 15.87 | 98.4 |
2" | 150 | 20.7 | 78 | 62.5 | 25 | 4 | 19.05 | 120.7 |
2 1/2" | 180 | 22.3 | 90 | 75.4 | 29 | 4 | 19.05 | 139.7 |
3" | 190 | 23.9 | 108 | 91.4 | 30 | 4 | 19.05 | 152.4 |
3 1/2" | 215 | 23.9 | 122 | 104.1 | 32 | 8 | 19.05 | 177.8 |
4" | 230 | 23.9 | 135 | 116.8 | 33 | 8 | 19.05 | 190.5 |
5" | 255 | 23.9 | 164 | 144.4 | 36 | 8 | 22.22 | 215.9 |
6" | 280 | 25.4 | 192 | 171.4 | 40 | 8 | 22.22 | 241.3 |
8" | 345 | 28.6 | 246 | 222.2 | 44 | 8 | 22.22 | 298.5 |
10" | 405 | 30.2 | 305 | 277.4 | 49 | 12 | 25.40 | 362.0 |
12" | 485 | 31.8 | 365 | 328.2 | 56 | 12 | 25.40 | 431.8 |
14" | 535 | 35.0 | 400 | 360.2 | 79 | 12 | 28.57 | 476.3 |
16" | 595 | 36.6 | 457 | 411.2 | 87 | 16 | 28.57 | 539.8 |
18" | 635 | 39.7 | 505 | 462.3 | 97 | 16 | 31.75 | 577.9 |
20" | 700 | 42.9 | 559 | 514.4 | 103 | 20 | 31.75 | 635.0 |
24" | 815 | 47.7 | 663 | 616.0 | 111 | 20 | 34.92 | 749.3 |
The dimensions are in millimeters
Source : ASME B16.5 - 2007
300 Lbs
Drilling | ||||||||
---|---|---|---|---|---|---|---|---|
Nominal Bore | Dia. (D) |
Thick. (E) |
Dia. (B) |
Dia. (A) |
Height (H) |
Nbr | Holes | Dia. (C) |
1/2" | 95 | 14.3 | 38 | 22.9 | 22 | 4 | 15.87 | 66.7 |
3/4" | 115 | 15.9 | 48 | 28.2 | 25 | 4 | 19.05 | 82.6 |
1" | 125 | 17.5 | 54 | 34.9 | 27 | 4 | 19.05 | 88.9 |
1 1/4" | 135 | 19.1 | 64 | 43.7 | 27 | 4 | 19.05 | 98.4 |
1 1/2" | 155 | 20.7 | 70 | 50.0 | 30 | 4 | 22.22 | 114.3 |
2" | 165 | 22.3 | 84 | 62.5 | 33 | 8 | 19.05 | 127.0 |
2 1/2" | 190 | 25.4 | 100 | 75.4 | 38 | 8 | 22.22 | 149.2 |
3" | 210 | 28.6 | 117 | 91.4 | 43 | 8 | 22.22 | 168.3 |
3 1/2" | 230 | 30.2 | 133 | 104.1 | 44 | 8 | 22.22 | 184.2 |
4" | 255 | 31.8 | 146 | 116.8 | 48 | 8 | 22.22 | 200.0 |
5" | 280 | 35.0 | 178 | 144.4 | 51 | 8 | 22.22 | 235.0 |
6" | 320 | 36.6 | 206 | 171.4 | 52 | 12 | 22.22 | 269.9 |
8" | 380 | 41.3 | 260 | 222.2 | 62 | 12 | 25.40 | 330.2 |
10" | 445 | 47.7 | 321 | 277.4 | 95 | 16 | 28.57 | 387.4 |
12" | 520 | 50.8 | 375 | 328.2 | 102 | 16 | 31.75 | 450.8 |
14" | 585 | 54.0 | 425 | 360.2 | 111 | 20 | 31.75 | 514.4 |
16" | 650 | 57.2 | 483 | 411.2 | 121 | 20 | 34.29 | 571.5 |
18" | 710 | 60.4 | 533 | 462.3 | 130 | 24 | 34.29 | 628.6 |
20" | 775 | 63.5 | 587 | 514.4 | 140 | 24 | 34.29 | 685.8 |
24" | 915 | 69.9 | 702 | 616.0 | 152 | 24 | 41.27 | 812.8 |
The dimensions are in millimeters
Source : ASME B16.5 - 2007
600 Lbs
Drilling | ||||||||
---|---|---|---|---|---|---|---|---|
Nominal Bore | Dia. (D) |
Thick. (E) |
Dia. (B) |
Dia. (A) |
Height (H) |
Nbr | Holes | Dia. (C) |
1/2" | 95 | 14.3 | 38 | 23.6 | 22 | 4 | 15.87 | 66.7 |
3/4" | 115 | 15.9 | 48 | 29.0 | 25 | 4 | 19.05 | 82.6 |
1" | 125 | 17.5 | 54 | 35.8 | 27 | 4 | 19.05 | 88.9 |
1 1/4" | 135 | 20.7 | 64 | 44.4 | 29 | 4 | 19.05 | 98.4 |
1 1/2" | 155 | 22.3 | 70 | 50.6 | 32 | 4 | 22.22 | 114.3 |
2" | 165 | 25.4 | 84 | 63.5 | 37 | 8 | 19.05 | 127.0 |
2 1/2" | 190 | 28.6 | 100 | 76.2 | 41 | 8 | 22.22 | 149.2 |
3" | 210 | 31.8 | 117 | 92.2 | 46 | 8 | 22.22 | 168.3 |
3 1/2" | 230 | 35.0 | 133 | 104.9 | 49 | 8 | 25.40 | 184.2 |
4" | 275 | 38.1 | 152 | 117.6 | 54 | 8 | 25.40 | 215.9 |
5" | 330 | 44.5 | 189 | 144.4 | 60 | 8 | 28.57 | 266.7 |
6" | 355 | 47.7 | 222 | 171.4 | 67 | 12 | 28.57 | 292.1 |
8" | 420 | 55.6 | 273 | 222.2 | 76 | 12 | 31.75 | 349.2 |
10" | 510 | 63.5 | 343 | 276.2 | 111 | 16 | 34.92 | 431.8 |
12" | 560 | 66.7 | 400 | 328.6 | 117 | 20 | 34.92 | 489.0 |
14" | 605 | 69.9 | 432 | 360.4 | 127 | 20 | 38.10 | 527.0 |
16" | 685 | 76.2 | 495 | 411.2 | 140 | 20 | 41.27 | 603.2 |
18" | 745 | 82.6 | 546 | 462.0 | 152 | 20 | 44.45 | 6654.0 |
20" | 815 | 88.9 | 610 | 512.8 | 165 | 24 | 44.45 | 723.9 |
24" | 940 | 101.6 | 718 | 614.4 | 184 | 24 | 50.80 | 838.2 |
The dimensions are in millimeters
Source : ASME B16.5 - 2007
