We are engaged in offering a wide range of Spacer Rings. For the convenience of customers, we provide these parts in various sizes and also as per their given details.
Spades and Ring Spacers

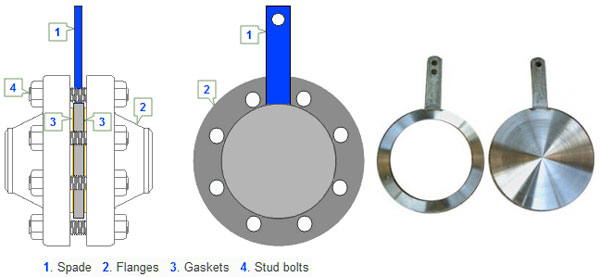

Spades (single blinds) / ring spacer
Spades and Ring Spacers are basically the same as Spectacle Blinds, except that both are not attached to each other.
Spades and Spacers be applied in systems where maintenance is often not necessary, or in applications with large pipe sizes. Spectacle Blinds, Spades and Ring Spacers should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical composition as the mating flanges and piping involved.

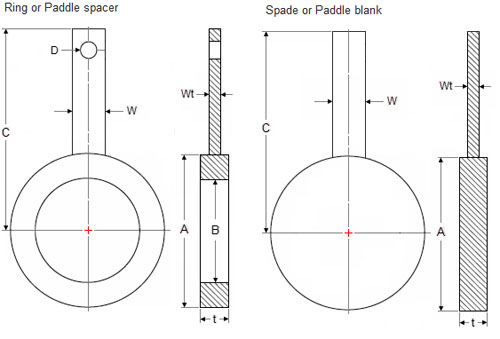

Dimensions
Class 150
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
1/2 |
45 |
16 |
126 |
3 |
32 |
3/4 |
54 |
21 |
131 |
3 |
32 |
1 |
64 |
27 |
136 |
3 |
32 |
1¼ |
73 |
42 |
145 |
6.4 |
32 |
1½ |
83 |
48 |
145 |
6.4 |
32 |
2 |
102 |
61 |
155 |
6.4 |
32 |
2½ |
107 |
73 |
170 |
6.4 |
32 |
3 |
133 |
89 |
170 |
6.4 |
32 |
3½ |
159 |
102 |
202 |
9.7 |
38 |
4 |
172 |
114 |
202 |
9.7 |
38 |
5 |
194 |
141 |
225 |
9.7 |
38 |
6 |
219 |
168 |
225 |
12.7 |
38 |
8 |
276 |
219 |
267 |
12.7 |
38 |
10 |
337 |
273 |
322 |
15.7 |
44 |
12 |
406 |
324 |
357 |
19.1 |
44 |
14 |
448 |
356 |
378 |
19.1 |
44 |
16 |
511 |
406 |
410 |
22.4 |
44 |
18 |
546 |
457 |
427 |
25.4 |
51 |
20 |
603 |
508 |
455 |
28.4 |
51 |
24 |
714 |
610 |
512 |
31.8 |
51 |
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
Class 300
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
1/2 |
51 |
16 |
129 |
6.4 |
32 |
3/4 |
64 |
21 |
136 |
6.4 |
32 |
1 |
70 |
27 |
139 |
6.4 |
32 |
1¼ |
79 |
42 |
150 |
6.4 |
32 |
1½ |
92 |
48 |
150 |
6.4 |
32 |
2 |
108 |
61 |
158 |
9.7 |
32 |
2½ |
127 |
73 |
177 |
9.7 |
32 |
3 |
146 |
89 |
177 |
9.7 |
32 |
3½ |
162 |
102 |
205 |
12.7 |
38 |
4 |
178 |
114 |
205 |
12.7 |
38 |
5 |
213 |
141 |
240 |
15.7 |
38 |
6 |
248 |
168 |
240 |
15.7 |
38 |
8 |
305 |
219 |
281 |
22.4 |
38 |
10 |
359 |
273 |
333 |
25.4 |
44 |
12 |
419 |
324 |
363 |
28.4 |
44 |
14 |
483 |
356 |
395 |
31.8 |
44 |
16 |
536 |
406 |
422 |
38.1 |
44 |
18 |
594 |
457 |
450 |
41.1 |
51 |
20 |
651 |
508 |
480 |
44.5 |
51 |
24 |
772 |
610 |
540 |
50.8 |
51 |
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
Class 600
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
1/2 |
51 |
16 |
129 |
6.4 |
32 |
3/4 |
64 |
21 |
136 |
6.4 |
32 |
1 |
70 |
27 |
139 |
6.4 |
32 |
1¼ |
79 |
37 |
150 |
9.7 |
32 |
1½ |
92 |
43 |
150 |
9.7 |
32 |
2 |
108 |
55 |
158 |
9.7 |
32 |
2½ |
127 |
67 |
177 |
12.7 |
32 |
3 |
146 |
83 |
177 |
12.7 |
32 |
3½ |
159 |
96 |
211 |
15.7 |
38 |
4 |
191 |
108 |
211 |
15.7 |
38 |
5 |
238 |
135 |
248 |
19.1 |
38 |
6 |
264 |
162 |
248 |
22.4 |
38 |
8 |
318 |
212 |
288 |
28.4 |
38 |
10 |
397 |
265 |
352 |
35.1 |
44 |
12 |
454 |
315 |
381 |
41.1 |
44 |
14 |
489 |
346 |
398 |
44.5 |
44 |
16 |
562 |
397 |
435 |
50.8 |
44 |
18 |
610 |
448 |
459 |
53.8 |
51 |
20 |
679 |
497 |
493 |
63.5 |
51 |
24 |
787 |
597 |
547 |
73.2 |
51 |
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
Class 900
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
1/2 |
60 |
16 |
134 |
6.4 |
32 |
3/4 |
67 |
21 |
137 |
6.4 |
32 |
1 |
76 |
27 |
142 |
6.4 |
32 |
1¼ |
86 |
37 |
151 |
9.7 |
32 |
1½ |
95 |
43 |
151 |
9.7 |
32 |
2 |
140 |
55 |
174 |
12.7 |
32 |
2½ |
162 |
67 |
186 |
12.7 |
32 |
3 |
165 |
83 |
186 |
15.7 |
32 |
4 |
203 |
108 |
217 |
19.1 |
38 |
5 |
244 |
135 |
259 |
22.4 |
38 |
6 |
286 |
162 |
259 |
25.4 |
38 |
8 |
356 |
212 |
307 |
35.1 |
38 |
10 |
432 |
265 |
370 |
41.1 |
44 |
12 |
495 |
315 |
401 |
47.8 |
44 |
14 |
518 |
346 |
412 |
53.8 |
44 |
16 |
572 |
397 |
440 |
60.5 |
44 |
18 |
635 |
448 |
471 |
66.5 |
51 |
20 |
696 |
497 |
501 |
73.2 |
51 |
24 |
835 |
597 |
571 |
88.9 |
51 |
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
Class 1500
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
1/2 |
61 |
16 |
135 |
6.4 |
32 |
3/4 |
67 |
21 |
137 |
9.7 |
32 |
1 |
76 |
27 |
142 |
9.7 |
32 |
1¼ |
86 |
35 |
151 |
9.7 |
32 |
1½ |
95 |
41 |
151 |
12.7 |
32 |
2 |
140 |
53 |
174 |
12.7 |
32 |
2½ |
162 |
63 |
190 |
15.7 |
32 |
3 |
172 |
78 |
190 |
19.1 |
32 |
4 |
206 |
102 |
219 |
22.4 |
38 |
5 |
251 |
128 |
256 |
28.4 |
38 |
6 |
279 |
154 |
256 |
35.1 |
38 |
8 |
349 |
203 |
303 |
41.1 |
38 |
10 |
432 |
255 |
370 |
50.8 |
44 |
12 |
518 |
303 |
412 |
60.5 |
44 |
14 |
575 |
333 |
442 |
66.5 |
44 |
16 |
638 |
381 |
472 |
76.2 |
44 |
18 |
702 |
429 |
504 |
85.9 |
51 |
20 |
752 |
478 |
530 |
95.3 |
51 |
24 |
899 |
575 |
603 |
111.3 |
51 |
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
Class 2500
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
1/2 |
67 |
16 |
137 |
9.7 |
32 |
3/4 |
73 |
21 |
140 |
9.7 |
32 |
1 |
83 |
27 |
145 |
9.7 |
32 |
1¼ |
102 |
35 |
161 |
12.7 |
32 |
1½ |
114 |
41 |
161 |
15.7 |
32 |
2 |
143 |
53 |
175 |
15.7 |
32 |
2½ |
165 |
63 |
201 |
19.1 |
32 |
3 |
194 |
78 |
201 |
22.4 |
32 |
4 |
232 |
102 |
232 |
28.4 |
38 |
5 |
276 |
128 |
273 |
35.1 |
38 |
6 |
314 |
154 |
273 |
41.1 |
38 |
8 |
384 |
198 |
321 |
53.8 |
38 |
10 |
473 |
248 |
390 |
66.5 |
44 |
12 |
546 |
289 |
427 |
79.2 |
44 |
NPS |
Outside Ø
A |
Inside Ø
B |
Center to End
C |
Thickness
t |
Handle Width
W |
Notes:
- Dimensions are in millimeters unless otherwise indicated.
- Spade Handles shall be solid with no openings.
- Ring Spacer Handles shall have a single through indicator hole located near the end of the handle. The hole diameter shall not be less than 12 mm.
- Wt = Thickness of the handle should be 6 mm minimum, or equal to Thickness (t) if less than 6 mm.
- Spades and Ring Spacers should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical composition as the mating flanges and piping involved.
- Spades & Ring Spacers according to ASME B16.48 may be used for installation between ASME B16.5 flanges
- Depending on a customer specification, some dimensions can be different from what on this page is defined.
