Hexion Steel LIMITED. is a company focused on engineering and business activities in the area of environmental technologies. Our Product Supply Division offers a broad portfolio of Steel Flanges and ASME B16.5 Square Flanges.

ASME B16.5 Square Flanges

ASME B16.5 Square Flanges Manufacturer & Exporter

Stainless Steel:

ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.

Duplex Steel:

ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.

Nickel Alloy

ASTM / ASME SB 564 UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)
ASTM / ASME SB 160 UNS 2201 (NICKEL 201 )
ASTM / ASME SB 472 UNS 8020 (ALLOY 20 / 20 CB 3)

Copper Alloy

ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.
ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30)
ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.

Carbon Steel

ASTM / ASME A 105
ASTM / ASME A 350 LF 2

Alloy Steel

ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91

Dimensions

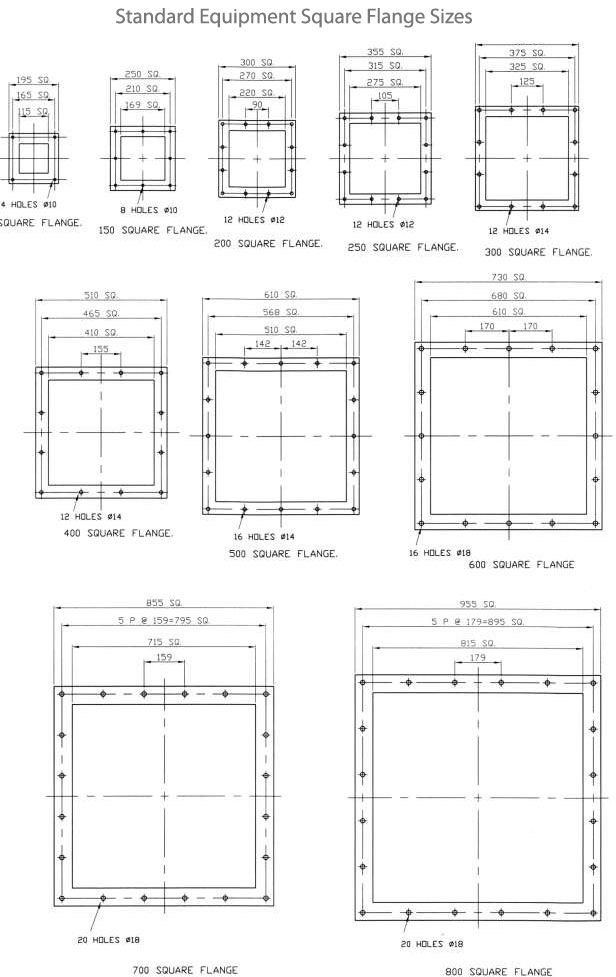

Standard Equipment Square Flange Sizes:

  • 150 Square Flange : 8 Holes Ø 10
  • 200 Square Flange: 12 Holes Ø 12
  • 250 Square Flange: 12 Holes Ø 12
  • 300 Square Flange: 12 Holes Ø 14
  • 400 Square Flange: 12 Holes Ø 14
  • 500 Square Flange: 16 Holes Ø 14
  • 600 Square Flange: 16 Holes Ø 18
  • 700 Square Flange: 20 Holes Ø 18
  • 800 Square Flange: 20 Holes Ø 18

Standard Equipment Square Flange Sizes

Our range includes SHA+SHB (SHAB) Square Flanges and SSA+SSB (SSAB) Square Flanges.

Working Pressure for the Square Flanges available is 210 kg/cmª

Our range of sizes are from 1/4"NB - 6"NB.

Square flange Ø 40 mm pipe aperture
Solid twin hole flanges made of 304 AISI stainless steel. Extra strong and solid version to build compact and gas-tight connections. To take in the regarding pipe diameter, the central hole intake is constructed with a bore tolerance, which effects easy fitting, fixing and further processing. The flange plates can be mounted directly to elbow pipes, ordinary pipes or assemblies of any kind and form and allow you flexible construction.
Pipe aperture: 40 mm
Material thickness: 8 mm
Outside dimensions: 69x69 mm

Square Flanges Key Features:

  • Can be attached to the pipe without welding (sometimes an additional seal weld is used as well)
  • Ideal for higher pressure and temperature applications for small pipe sizes
  • Not recommended for larger loads, especially when subjected to higher torque

NOTE: This flange is referred to as either threaded or screwed. It is used to connect other threaded components in low pressure, non-critical applications. No welding is required.

Standards: ANSI, AS2129, JIS, DIN, EN-1092-1, BS10, BS4504 etc

Nominal Pressure: PN0.25-PN42, 150LB-900LB, 5K--30K.

Nominal Diameter: DN10A-DN600A, NPS:3/8"-24".

Square Flanges Materials: Carbon steel, stainless steel and alloy steel.

Printing: Carbon steel and alloy steel with yellow print, black print, oil or zinc.

Square Flanges Packing: Plywooden case.

Payment terms: both L/C at sight and T/T before shipment.

* We can also manufacture special application flanges and forgings that customers require.
