We are regular suppliers from China for Groove & Tongue Flanges



Home / Products / Flanges / Groove & Tongue Flanges

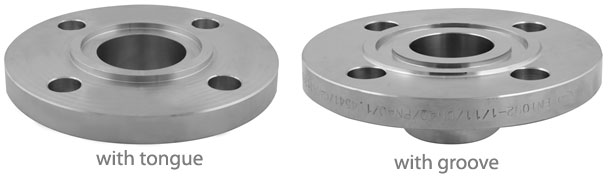

The Groove and Tongue faces of these flanges must be matched. One flange face has a raised ring (Tongue) machined onto the flange face while the mating flange has a matching depression (Groove) machined into it's face. Tongue-and-groove facings are standardized in both large and small types. They differ from male-and-female in that the inside diameters of the tongue-and-groove do not extend into the flange base, thus retaining the gasket on its inner and outer diameter. These are commonly found on pump covers and Valve Bonnets.

Groove & Tongue Flanges

Groove & Tongue Flanges Manufacturer & Exporter

Flange Facings: Raised Face, Ring Type Joint, Large Tongue & Groove, Small Tongue & Groove

Flanges are available in the following material grades:

  • Stainless Steel
  • A182 F304/L
  • F310
  • F316/L
  • F321/H
  • F347/H
  • F410
  • F440
  • 904L
  • Carbon Steel
  • A105, C22.8
  • Low Temperature Steel
  • A350 LF2, LF3, LF6
  • Alloy Steel
  • A182 F1, F5, F9, F11, F12, F22, F91
  • High Yield
  • A694 F42, F52, F60, F65, F70
  • 6% Moly / Duplex & Super Duplex
  • A182 F44, F51, F53, F55
  • Nickel Alloys
  • 200, 400, K500, 600, 625, 800, 825


  • Alloys
  • ALLOY 20
  • ALLOY C
  • ALLOY C276
  • ALLOY B2
  • Aluminium
  • 5083, 5154, 5251, 6061, 6063, 6082
  • Unusual Grades
  • Bronze, Brass, Copper
  • Cupro Nickel
  • Titanium

Dimensions

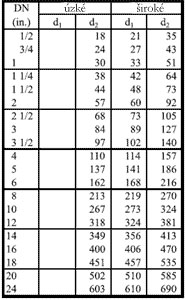

Tongue and groove flanges per ANSI B16.21 (150-1500 lbs)

Tongue and groove flanges per ANSI B16.21 (150-1500 lbs)

Tongue and groove flanges per ANSI B16.21 (150-1500 lbs)
