Orifice Flanges

Orifice Flanges In Carbon, Alloy and Stainless
300 LB through 2500 LB
Raised Face or Ring Joint

Orifice Flange Unions are designed and manufactured to AGA, ASME, and ISA recommendations. We offer the following types:

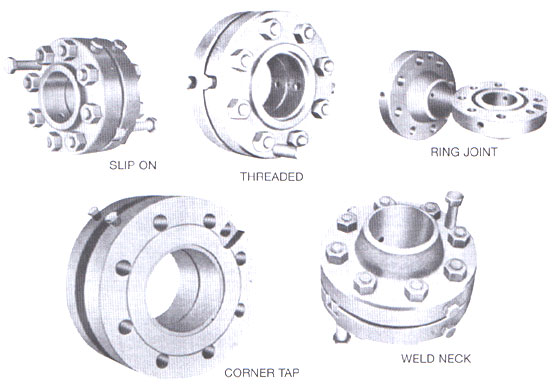

• Slip on threaded ring joint corner tap weld neck orifice flanges.
• Raised Face weld neck orifice flanges.
• Raised Face slip-on orifice flange manufacturers.
• Ring-Type joint weld neck orifice flanges.
• Corner tap orifice flanges

Materials used to produce Orifice flanges:

• Aluminum
• Brass
• Bronze
• Cast iron
• Stainless Steel
• Carbon Steel
• Alloy
• Nickel
• Copper etc


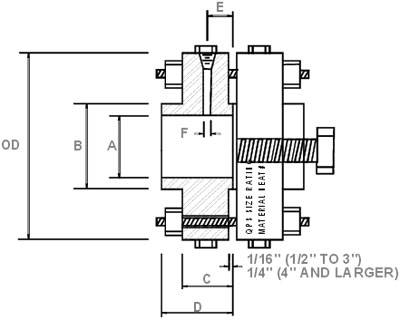

Dimensions

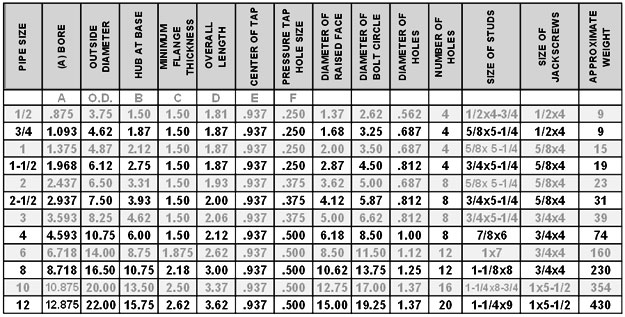

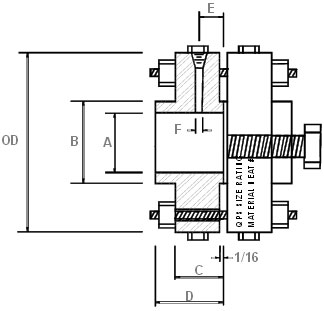

300# RFS0 ORIFICE FLANGE UNION

MATERIALS: A105 (C.S.) AND A182 (S.S.)

Other materials and schedules available

HARDWARE:

• Stud Bolts:A193 Gr. B7 Steel
• Hex Nuts:A194 Gr. 2H Steel
• Jackscrew:C1018 Hardened Square Head Screws
• Pipe Plugs:Hex Head, Forged Steel
• Ring Gaskets:C4430 Non-Asbestos

Manufactured to meet
A.G.A Report #3-2
A.P.I 14.3
ASME SPECIFICATIONS
Orifice Plates sold seperate

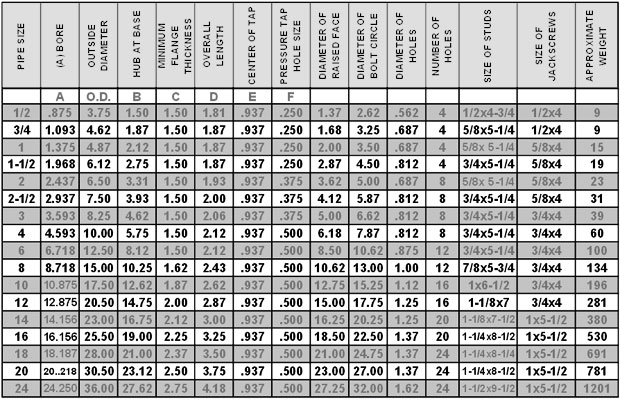

600# RFS0 ORIFICE FLANGE UNION

MATERIALS:
Domestic A105 (C.S.) AND A182 (S.S.)
Other materials and schedules available

HARDWARE:

Stud Bolts:A193 Gr. B7 Steel
Hex Nuts:A194 Gr. 2H Steel
Jackscrew:C1018 Hardened Square Head Screws
Pipe Plugs:Hex Head, Forged Steel
Ring Gaskets: C4430 Non-Asbestos

Manufactured to meet
A.G.A Report #3
A.P.I 14.3
ASME SPECIFICATIONS
Orifice Plates sold seperate

Key Features:

• Come with either raised faces or ring type joint (RTJ) facings.
• Available with raised face or RTJ face
• Used for flow/rate metering of piping systems
• Steel Tubes can supply the plate, pressure connection holes, and jack screws with the orifice flange unit
• The orifice flanges have modifications of radial tapped holes in the flange ring for meter connections. Need A Reliable Fitting?
• There are the orifice plate carriers in these flanges for the reason of fitting meter connections.

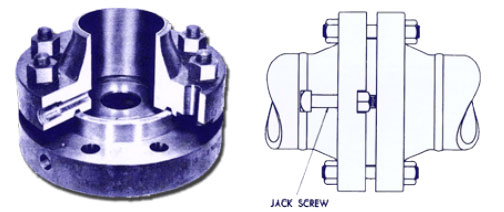

• The additional bolts available serve as a jack to allow the separation of the two flanges to change the orifice plate or for other relevant services like inspection.

Uses of orifice flanges:

• Orifice flange is used to flow/rate metering of piping systems.
• They are used for all intensive purposes, similar to weld neck and slip-on flanges with extra machining.

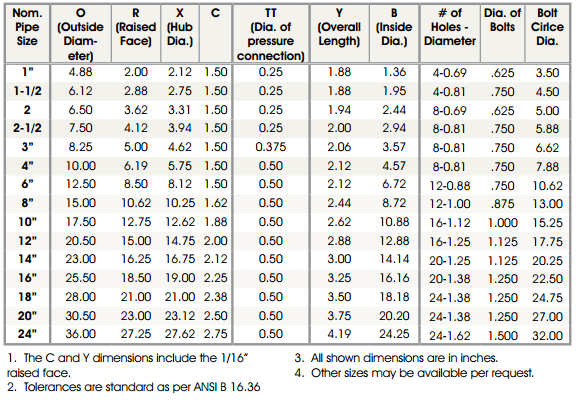

300# Slip_On Orifice Flange
300# Weld Neck Orifice Flange
600# Weld Neck Orifice (raised face and RTJ ring type joint) Flange
900# Weld Neck Orifice (raised face and RTJ ring type joint) Flange

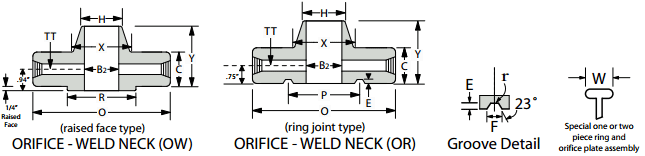

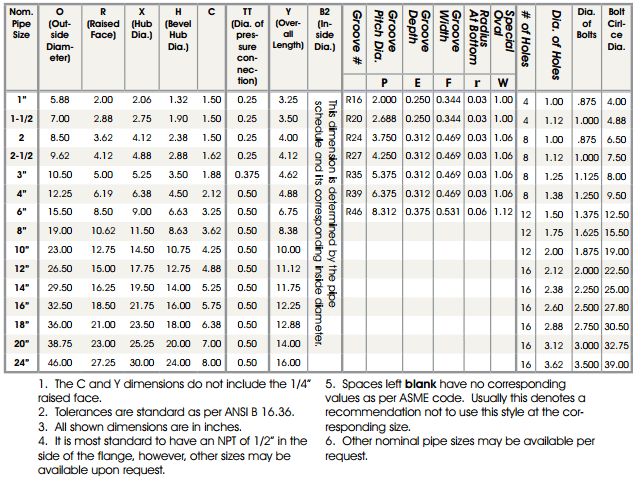

1500# Weld Neck Orifice (raised face and RTJ ring type joint) Flange

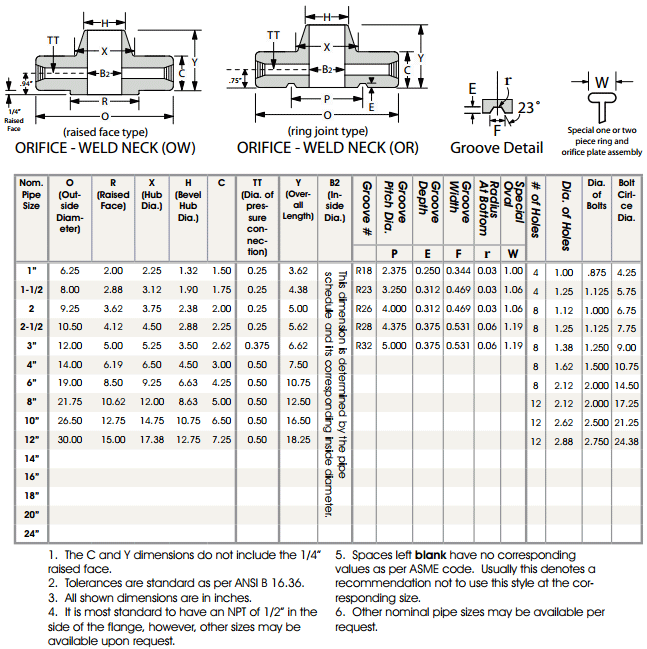

2500# Weld Neck Orifice (raised face and RTJ ring type joint) Flange

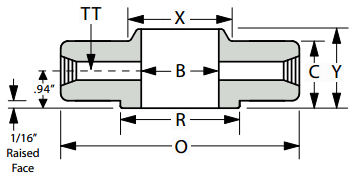

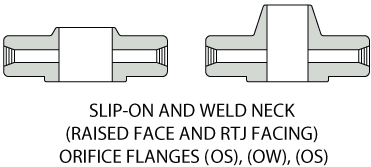

Orifice Flange - SLIP - ON (OS)

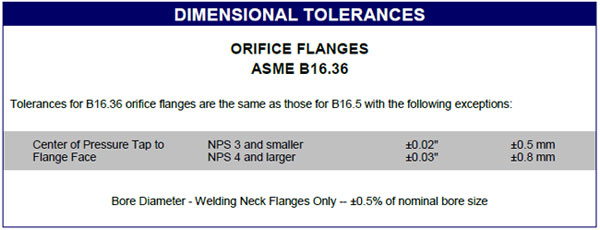

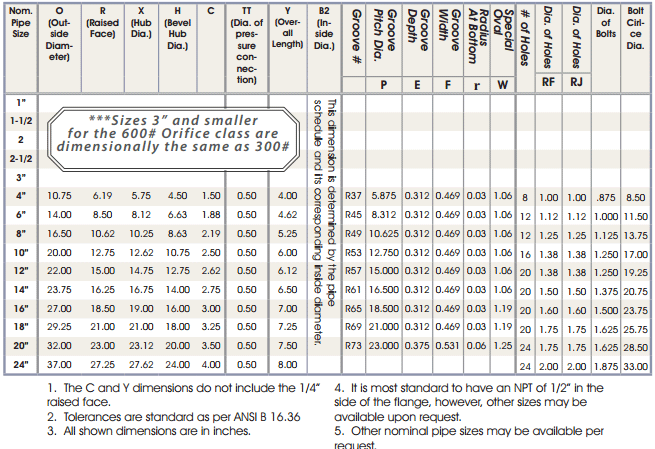

CLASS 600# ANSI B16.36 • Orifice Flanges

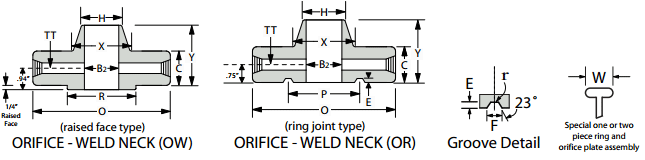

Weld Neck Dimensional Data

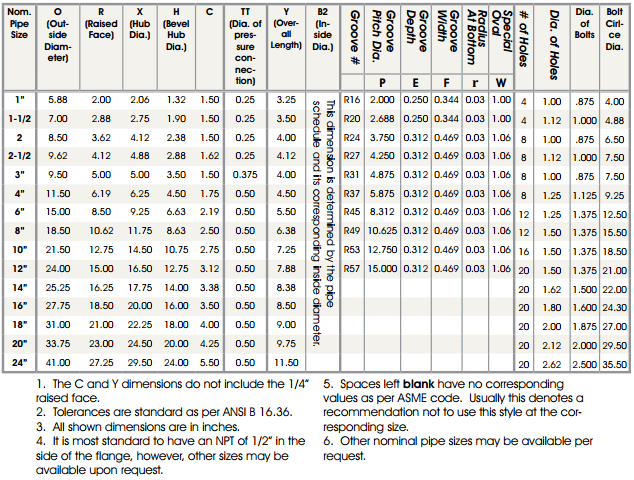

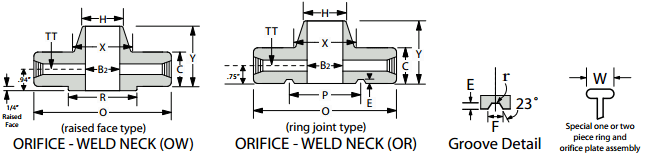

CLASS 900# ANSI B16.36 • Orifice Flanges
Weld Neck Dimensional Data
