We are an eminent name, which is engaged in offering Nipolet to the clients. The offered range of nipolets is manufactured utilizing high grade raw material and advanced machinery in strict compliance with the industry laid norms and standards. Additionally, the offered range of nipolets is ideally applicable in different areas such as chemical plants, power plants and oil refineries. This range is ideally utilized as as permanent or detachable thread connection.

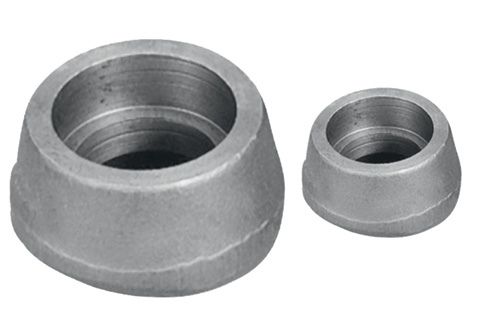

ASTM B366 Incoloy 800 Nipolet

Specifications

Standards	Designation
ASTM	B 366
ASME	SB 366

UNS	N08800/10/11
Werkstoff Nr.	1.4876/4958/59

ASTM B366 Incoloy 800 Nipolet Inventory Stock at factory rate:-

Dimensions

Chemical Composition

Incoloy	800	800H	800HT
Ni	30-35	30-35	30-35
Fe	39.5 min	39.5 min	39.5 min
Cr	19-23	19-23	19-23
Cu	0.75 max	0.75 max	0.75 max
Ti	0.15-0.60	0.15-0.60	0.25-0.60
Al	0.15-0.60	0.15-0.60	0.85-1.20
C	0.1 max	0.05-0.1	0.06-0.1
Mn	1.5 max	1.5 max	1.5 max
S	0.015 max	0.015 max	0.015 max
Si	1.0 max	1.0 max	1.0 max

Mechanical & Physical Properties – Incoloy 800

Density	7.94 g/cm3
Melting Point	1385 °C (2525 °F)
Tensile Strength	Psi – 75,000 , MPa – 520
Yield Strength (0.2% Offset)	Psi – 30,000 , MPa – 205
Elongation	30 %
