Home / Products / Nickel Alloys / Inconel 601 / ASTM B366 Inconel 601 Threaded Fittings

Inconel 601 (UNS: N06601, Werkstoff Nr.: 2.4851)

Fabricated using stainless steel, our range of threaded fittings is one of the most demanded items of our entire range. Suitable for different industrial projects, these adroitly developed threaded pipe fittings are stringently checked for their durability and strength. These are also offered in accordance with the national and international standard & specifications.

ASTM B366 Inconel 601 Threaded Fittings Exporter & Suppliers

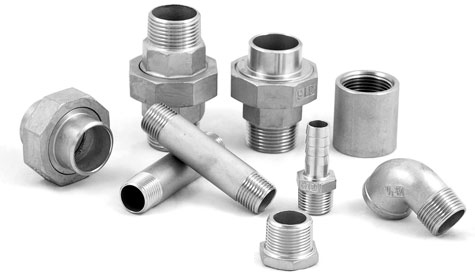

ASTM B366 Inconel 601 Threaded Fittings

Specifications

Standards Designation
ASTM B 366
ASME SB 366

UNS N06601
Werkstoff Nr. 2.4851

Enquiry

Dimensions

Inconel 601 is a nickel-chromium-iron alloy. Inconel 601 is a general purpose engineering material that require resistance to heat & corrosion. Inconel 601 has outstanding resistance to high temperature oxidation.

Chemical Composition

Inconel 601
Ni 58.0 – 63.0
Cr 21.0 – 25.0
Fe Balance
Al 1.0 – 1.7
C 0.10 max
Mn 1.0 max
S 0.015 max
Si 0.5 max
Cu 1.0 max

Mechanical & Physical Properties – Inconel 601

Density 8.1 g/cm3
Melting Point 1411 °C (2571 °F)
Tensile Strength Psi – 80,000 , MPa – 550
Yield Strength (0.2%Offset) Psi – 30,000 , MPa – 205
Elongation 30 %

Subcategory: Metal; Nickel Base; Superalloy

Key Words: Inconel 601, Nickel-Chromium Alloy; Werkstoff Nr. 2.4851, UNS N06601; ASME Boiler Code Section VIII; AMS 5715, AMS 5870; ASTM B166, ASTM B167, ASTM B168; DIN 17742, 17750 - 17752

Component Wt. %
Al 1 - 1.7
C Max 0.1
Cr 21 - 25
Component Wt. %
Cu Max 1
Fe 13
Mn Max 1
58 - 63
Component Wt. %
Ni
S Max 0.015
Si Max 0.5
Standard product forms are round, flats, forging stock, pipe, tube, plate, sheet, strip, and wire.

Electrical Properties
Electrical Resistivity 0.000119 ohm-cm 0.000119 ohm-cm
Magnetic Permeability 1.003 1.003  at 200 oersted (15.9 kA/m)
Curie Temperature Max -196 °C Max -321 °F

Thermal Properties
CTE, linear 20°C 13.75 µm/m-°C 7.64 µin/in-°F  20-100°C
Heat Capacity 0.448 J/g-°C 0.107 BTU/lb-°F
Thermal Conductivity 11.2 W/m-K 77.7 BTU-in/hr-ft²-°F
Melting Point 1360 - 1411 °C 2480 - 2570 °F
Solidus 1360 °C 2480 °F
Liquidus 1411 °C 2570 °F
