Inconel 601 (UNS: N06601, Werkstoff Nr.: 2.4851)
Inconel Threadolets are made of high quality inconel in different technical specifications. Accurate designing and precision machining ensures zero error threadolets, which have close tolerances and excellent finishes. These standard engineered threadolets have a great resistance towards heat and corrosion.

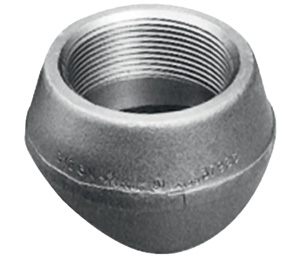

ASTM B366 Inconel 601 Threadolet
Specifications
Standards |
Designation |
ASTM |
B 366 |
ASME |
SB 366 |
UNS |
N06601 |
Werkstoff Nr. |
2.4851 |
Dimensions
Inconel 601 is a nickel-chromium-iron alloy. Inconel 601 is a general purpose engineering material that require resistance to heat & corrosion. Inconel 601 has outstanding resistance to high temperature oxidation.
Chemical Composition
|
Inconel 601 |
Ni |
58.0 – 63.0 |
Cr |
21.0 – 25.0 |
Fe |
Balance |
Al |
1.0 – 1.7 |
C |
0.10 max |
Mn |
1.0 max |
S |
0.015 max |
Si |
0.5 max |
Cu |
1.0 max |
Mechanical & Physical Properties – Inconel 601
Density |
8.1 g/cm3 |
Melting Point |
1411 °C (2571 °F) |
Tensile Strength |
Psi – 80,000 , MPa – 550 |
Yield Strength (0.2%Offset) |
Psi – 30,000 , MPa – 205 |
Elongation |
30 % |
Subcategory: Metal; Nickel Base; Superalloy
Key Words: Inconel 601, Nickel-Chromium Alloy; Werkstoff Nr. 2.4851, UNS N06601; ASME Boiler Code Section VIII; AMS 5715, AMS 5870; ASTM B166, ASTM B167, ASTM B168; DIN 17742, 17750 - 17752
Component Wt. %
Al 1 - 1.7
C Max 0.1
Cr 21 - 25 |
Component Wt. %
Cu Max 1
Fe 13
Mn Max 1
58 - 63 |
Component Wt. %
Ni
S Max 0.015
Si Max 0.5 |
Standard product forms are round, flats, forging stock, pipe, tube, plate, sheet, strip, and wire. |
Electrical Properties |
Electrical Resistivity |
0.000119 ohm-cm |
0.000119 ohm-cm |
|
Magnetic Permeability |
1.003 |
1.003 |
at 200 oersted (15.9 kA/m) |
Curie Temperature |
Max -196 °C |
Max -321 °F |
|
Thermal Properties |
CTE, linear 20°C |
13.75 µm/m-°C |
7.64 µin/in-°F |
20-100°C |
Heat Capacity |
0.448 J/g-°C |
0.107 BTU/lb-°F |
|
Thermal Conductivity |
11.2 W/m-K |
77.7 BTU-in/hr-ft²-°F |
|
Melting Point |
1360 - 1411 °C |
2480 - 2570 °F |
|
Solidus |
1360 °C |
2480 °F |
|
Liquidus |
1411 °C |
2570 °F |
|
