We are regular suppliers from China for ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows
|
|
Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows
Stainless Steel Buttweld Fitting accomplish a lot of admiration by our clients owing to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency. These products are used in various commercial, industrial and automobile industries. We manufacture these fittings using high grade of raw material by implementing most ultra modern technology. These products are clients can avail from us at various sizes, shapes and design as per the requirements.

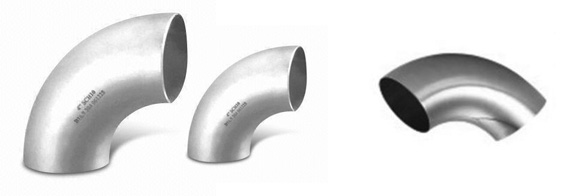

ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows
| Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Schedule: |
Sch 5 TO Sch XXS. |
| Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
| Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: |
Butt Weld (BW) |
| Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |

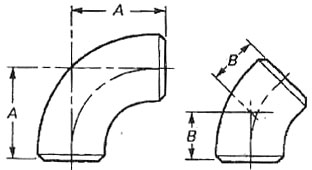

DIMENSIONS OF SEAMLESS BUTT WELDING ELBOWS
FACTORY-MADE WROUGHT BUTTWELDING FITTINGS
| Nominal Pip Size (NPS) |
DN |
Outside Diameter at Bevel |
Center- to-End |
| 45º Elbow B |
90º Elbow A |
| Long Radius |
Long Radius |
Short Radius |
| 1/2 |
|
21.3 |
16 |
38 |
|
| 3/4 |
|
26.7 |
19 |
38 |
|
| 1 |
25 |
33.4 |
22 |
38 |
25 |
| 1-1/4 |
32 |
42.2 |
25 |
48 |
32 |
| 1-1/2 |
40 |
48.3 |
28 |
57 |
38 |
| 2 |
50 |
60.3 |
35 |
76 |
51 |
| 2-1/2 |
65 |
73.0 |
45 |
95 |
64 |
| 3 |
80 |
88.9 |
51 |
114 |
76 |
| 3-1/2 |
90 |
101.6 |
57 |
133 |
89 |
| 4 |
100 |
114.3 |
64 |
152 |
102 |
| 5 |
125 |
141.3 |
79 |
191 |
127 |
| 6 |
150 |
168.3 |
95 |
229 |
152 |
| 8 |
200 |
219.1 |
127 |
305 |
203 |
| 10 |
250 |
273.0 |
159 |
381 |
254 |
| 12 |
300 |
323.8 |
191 |
457 |
305 |
| 14 |
350 |
355.6 |
222 |
533 |
356 |
| 16 |
400 |
406.4 |
254 |
610 |
406 |
| 18 |
450 |
457 |
286 |
686 |
457 |
| 20 |
500 |
508 |
318 |
762 |
508 |
| 22 |
550 |
559 |
343 |
838 |
559 |
| 24 |
600 |
610 |
381 |
914 |
610 |
NOTES: All dimensions are in millimeters.
