We are regular suppliers from China for ANSI/ASME B16.9 Butt weld Concentric Reducer
|
|
Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 Butt weld Concentric Reducer
Under the expert guidance of our engineers and technical Hexion Steel & Engineering offer Concentric Reducer. They are manufactured with the finest quality raw materials that are sourced from certified vendors. We offer them in a range of 1/2” NB to 24” NB and market leading prices.

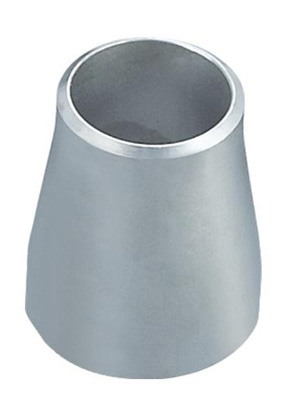

ANSI/ASME B16.9 Butt weld Concentric Reducer
Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
Schedule: |
Sch 5 TO Sch XXS. |
Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Type: |
Butt Weld (BW) |
Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
Dimension: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions
Nominal Diameter |
Outside Diameter |
End to End |
D1*D2 |
DN |
NPS |
Series A |
Series B |
H |
20×15 |
3/4×1/2 |
26.9×21.3 |
25×18 |
38 |
20×10 |
3/4×3/8 |
26.9×17.3 |
25×14 |
38 |
25×20 |
1×3/4 |
33.7×26.9 |
32×25 |
51 |
25×15 |
1×1/2 |
33.7×21.3 |
32×18 |
51 |
32×25 |
1.1/4×1 |
42.4×33.7 |
38×32 |
51 |
32×20 |
1.1/4×3/4 |
42.4×26.9 |
38×25 |
51 |
32×15 |
1.1/4×1/2 |
42.4×21.3 |
38×18 |
51 |
40×32 |
1.1/2×1.1/4 |
48.3×42.4 |
45×38 |
64 |
40×25 |
1.1/2×1 |
48.3×33.7 |
45×32 |
64 |
40×20 |
1.1/2×3/4 |
48.3×26.9 |
45×25 |
64 |
40×15 |
1.1/2×1/2 |
48.3×21.3 |
45×18 |
64 |
50×40 |
2×1.1/2 |
60.3×48.3 |
57×45 |
76 |
50×32 |
2×1.1/4 |
60.3×42.4 |
57×38 |
76 |
50×25 |
2×1 |
60.3×33.7 |
57×32 |
76 |
50×20 |
2×3/4 |
60.3×26.9 |
57×25 |
76 |
65×50 |
2.1/2×2 |
73.0×60.3 |
76×57 |
89 |
65×40 |
2.1/2×1.1/2 |
73.0×48.3 |
76×45 |
89 |
65×32 |
2.1/2×1.1/4 |
73.0×42.4 |
76×38 |
89 |
65×25 |
2.1/2×1 |
73.0×33.7 |
76×32 |
89 |
80×65 |
3×2.1/2 |
88.9×73.0 |
89×76 |
89 |
80×50 |
3×2 |
88.9×60.3 |
89×57 |
89 |
80×40 |
3×1.1/2 |
88.9×48.3 |
89×45 |
89 |
80×32 |
3×1.1/4 |
88.9×42.4 |
89×38 |
89 |
90×80 |
3.1/2×3 |
101.6×88.9 |
- |
102 |
90×65 |
3.1/2×2.1/2 |
101.6×73.0 |
- |
102 |
90×50 |
3.1/2×2 |
101.6×60.3 |
- |
102 |
90×40 |
3.1/2×1.1/2 |
101.6×48.3 |
- |
102 |
90×32 |
3.1/2×1.1/4 |
101.6×42.4 |
- |
102 |
100×90 |
4×3.1/2 |
114.3×101.6 |
- |
102 |
100×80 |
4×3 |
114.3×88.9 |
108×89 |
102 |
100×65 |
4×2.1/2 |
114.3×73.0 |
108×76 |
102 |
100×50 |
4×2 |
114.3×60.3 |
108×57 |
102 |
100×40 |
4×1.1/2 |
114.3×48.3 |
108×45 |
102 |
125×100 |
5×4 |
141.3×114.3 |
133×108 |
127 |
125×90 |
5×3.1/2 |
141.3×101.6 |
- |
127 |
125×80 |
5×3 |
141.3×88.9 |
133×89 |
127 |
125×65 |
5×2.1/2 |
141.3×73.0 |
133×76 |
127 |
125×50 |
5×2 |
141.3×60.3 |
133×57 |
127 |
150×125 |
6×5 |
168.3×141.3 |
159×133 |
140 |
150×100 |
6×5 |
168.3×114.3 |
159×108 |
140 |
150×90 |
6×3.1/2 |
168.3×101.6 |
- |
140 |
150×80 |
6×3 |
168.3×88.9 |
159×89 |
140 |
150×65 |
6×2.1/2 |
168.3×73.0 |
159×76 |
140 |
200×150 |
8×6 |
219.1×168.3 |
219×159 |
152 |
200×125 |
8×5 |
219.1×141.3 |
219×133 |
152 |
200×100 |
8×4 |
219.1×114.3 |
219×108 |
152 |
200×90 |
8×3.1/2 |
219.1×101.6 |
- |
152 |
250×200 |
10×8 |
273.0×219.1 |
273×219 |
178 |
250×150 |
10×6 |
273.0×168.3 |
273×159 |
178 |
250×125 |
10×5 |
273.0×141.3 |
273×133 |
178 |
250×100 |
10×4 |
273.0×114.3 |
273×108 |
178 |
300×250 |
12×10 |
323.9×273.1 |
325×273 |
203 |
300×200 |
12×8 |
323.9×219.1 |
325×219 |
203 |
300×150 |
12×6 |
323.9×168.3 |
325×159 |
203 |
300×125 |
12×5 |
323.9×141.3 |
325×133 |
203 |
350×300 |
14×12 |
355.6×323.9 |
377×325 |
330 |
350×250 |
14×10 |
355.6×273.0 |
377×273 |
330 |
350×200 |
14×8 |
355.6×219.1 |
377×219 |
330 |
350×150 |
14×6 |
355.6×168.3 |
377×159 |
330 |
400×350 |
16×14 |
406.4×355.6 |
426×377 |
356 |
400×300 |
16×12 |
406.4×323.9 |
426×325 |
356 |
400×250 |
16×10 |
406.4×273.0 |
426×273 |
356 |
400×200 |
16×8 |
406.4×219.1 |
426×219 |
356 |
450×400 |
18×16 |
457×406.4 |
478×426 |
381 |
450×350 |
18×14 |
457×355.6 |
478×377 |
381 |
450×300 |
18×12 |
457×323.9 |
478×325 |
381 |
450×250 |
18×10 |
457×273.0 |
478×273 |
381 |
500×450 |
20×18 |
508×457 |
529×478 |
508 |
500×400 |
20×16 |
508×406.4 |
529×426 |
508 |
500×350 |
20×14 |
508×355.6 |
529×377 |
508 |
500×300 |
20×12 |
508×323.9 |
529×325 |
508 |
550×500 |
22×20 |
559×508 |
- |
508 |
550×450 |
22×18 |
559×457 |
- |
508 |
550×400 |
22×16 |
559×406.4 |
- |
508 |
550×350 |
22×14 |
559×355.6 |
- |
508 |
600×550 |
24×22 |
610×559 |
- |
508 |
600×500 |
24×20 |
610×508 |
630×529 |
508 |
600×450 |
24×18 |
610×457 |
630×478 |
508 |
600×400 |
24×22 |
610×406.4 |
630×426 |
508 |
650×600 |
26×24 |
660×610 |
- |
610 |
650×550 |
26×22 |
660×559 |
- |
610 |
650×500 |
26×20 |
660×508 |
- |
610 |
650×450 |
26×18 |
660×457 |
- |
610 |
700×650 |
28×26 |
711×660 |
- |
610 |
700×600 |
28×24 |
711×610 |
720×630 |
610 |
700×550 |
28×22 |
711×559 |
- |
610 |
700×500 |
28×20 |
711×508 |
720×530 |
610 |
750×700 |
30×28 |
762×711 |
- |
610 |
750×650 |
30×26 |
762×660 |
- |
610 |
750×600 |
30×24 |
762×610 |
- |
610 |
750×550 |
30×22 |
762×559 |
- |
610 |
800×750 |
32×30 |
813×762 |
- |
610 |
800×700 |
32×28 |
813×711 |
820×720 |
610 |
800×650 |
32×26 |
813×660 |
- |
610 |
800×600 |
32×24 |
813×610 |
820×630 |
610 |
850×800 |
34×32 |
864×813 |
- |
610 |
850×750 |
34×30 |
864×762 |
- |
610 |
850×700 |
34×28 |
864×711 |
- |
610 |
850×650 |
34×26 |
864×660 |
- |
610 |
900×850 |
36×34 |
914×864 |
- |
610 |
900×800 |
36×32 |
914×813 |
920×820 |
610 |
900×750 |
36×30 |
914×762 |
- |
610 |
900×700 |
36×28 |
914×711 |
920×720 |
610 |
950×900 |
38×36 |
965×914 |
- |
610 |
950×850 |
38×34 |
965×864 |
- |
610 |
950×800 |
38×32 |
965×813 |
- |
610 |
950×750 |
38×30 |
965×762 |
- |
610 |
1000×950 |
40×38 |
1016×965 |
- |
610 |
1000×900 |
40×36 |
1016×914 |
1020×920 |
610 |
1000×850 |
40×34 |
1016×864 |
- |
610 |
1000×800 |
40×32 |
1016×813 |
1020×820 |
610 |
1050×1000 |
42×40 |
1067×1016 |
- |
610 |
1050×950 |
42×38 |
1067×965 |
- |
610 |
1050×900 |
42×36 |
1067×914 |
- |
610 |
1050×850 |
42×34 |
1067×864 |
- |
610 |
1100×1050 |
44×42 |
1118×1067 |
- |
610 |
1100×1000 |
44×40 |
1118×1016 |
1120×1020 |
610 |
1100×950 |
44×38 |
1118×965 |
- |
610 |
1100×900 |
44×36 |
1118×914 |
1220×920 |
610 |
1150×1100 |
46×44 |
1168×1118 |
- |
711 |
1150×1050 |
46×42 |
1168×1067 |
- |
711 |
1150×1000 |
46×40 |
1168×1016 |
- |
711 |
1150×950 |
46×38 |
1168×965 |
- |
711 |
1200×1150 |
48×46 |
1220×1168 |
- |
711 |
1200×1100 |
48×44 |
1220×1118 |
1220×1120 |
711 |
1200×1050 |
48×42 |
1220×1067 |
- |
711 |
1200×1000 |
48×40 |
1220×1016 |
1220×1020 |
711 |
