We are regular suppliers from China for ANSI/ASME B16.9 Butt weld Reducers
|
|
Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 Butt weld Reducers

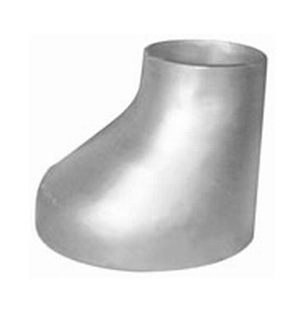

Our range of Butt Weld Reducers is available in two different forms, one is concentric and another is eccentric types. Developed using quality steel and other alloys, the reducer finds usage in sugar mills & distilleries, pumps & petrochemicals cement & construction industries and steel plants. Available in various sizes, schedules and flange configurations, our range can be customized as per the requirements of clients. The reducers have inlet and outlet ends and they align to a common center line.
ANSI/ASME B16.9 Butt weld Reducers
Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
Schedule: |
Sch 5 TO Sch XXS. |
Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Type: |
Butt Weld (BW) |
Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
Dimension: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions

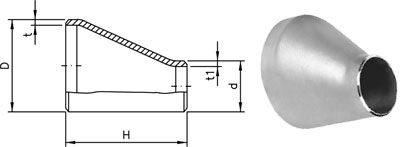

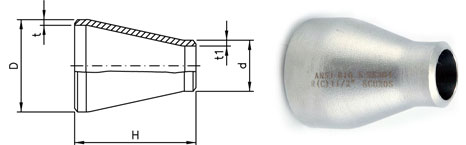

REDUCERS - Ansi 16.9 dimensions
REDUCERS |
inches |
mm |
D |
d |
H |
3/4 x 3/4 |
20 x 15 |
26,67 |
21,34 |
38,10 |
3/4 x 3/8 |
20 x 10 |
26,67 |
17,14 |
38,10 |
1 x 3/4 |
25 x 20 |
33,40 |
26,67 |
50,80 |
1 x 1/2 |
25 x 15 |
33,40 |
21,34 |
50,80 |
1 1/4 x 1 |
32 x 25 |
42,16 |
33,40 |
50,80 |
1 1/4 x 3/4 |
32 x 20 |
42,16 |
26,67 |
50,80 |
1 1/4 x 1/2 |
32 x 15 |
42,16 |
21,34 |
50,80 |
1 1/2 x 1 1/4 |
40 x 32 |
48,26 |
42,16 |
63,50 |
1 1/2 x 1 |
40 x 25 |
48,26 |
33,40 |
63,50 |
1 1/2 x 3/4 |
40 x 20 |
48,26 |
26,67 |
63,50 |
1 1/2 x 1/2 |
40 x 15 |
48,26 |
21,34 |
63,50 |
2 x 1 1/2 |
50 x 40 |
60,32 |
48,26 |
76,20 |
2 x 1 1/4 |
50 x 32 |
60,32 |
42,16 |
76,20 |
2 x 1 |
50 x 25 |
60,32 |
33,40 |
76,20 |
2 x 3/4 |
50 x 20 |
60,32 |
26,67 |
76,20 |
2 1/2 x 2 |
65 x 50 |
73,02 |
60,32 |
88,90 |
2 1/2 x 1 1/2 |
65 x 40 |
73,02 |
48,26 |
88,90 |
2 1/2 x 1 1/4 |
65 x 32 |
73,02 |
42,16 |
88,90 |
2 1/2 x1 |
65 x 25 |
73,02 |
33,40 |
88,90 |
3 x 2 1/2 |
80 x 65 |
88,90 |
73,02 |
88,90 |
3 x 2 |
80 x 50 |
88,90 |
60,32 |
88,90 |
3 x 1 1/2 |
80 x 40 |
88,90 |
48,26 |
88,90 |
3 x 1 1/4 |
80 x 32 |
88,90 |
42,16 |
88,90 |
3 1/2 x 3 |
90 x 80 |
101,60 |
88,90 |
101.60 |
3 1/2 x 2 1/2 |
90 x 65 |
101,60 |
73,02 |
101.60 |
3 1/2 x 2 |
90 x 50 |
101,60 |
60,32 |
101.60 |
3 1/2 x 1 1/2 |
90 x 40 |
101,60 |
48,26 |
101.60 |
3 1/2 x 1 1/4 |
90 x 32 |
101,60 |
42,16 |
101.60 |
4 x 3 1/2 |
100 x 90 |
114,30 |
73,02 |
101.60 |
4 x 3 |
100 x 80 |
114,30 |
88,90 |
101.60 |
4 x 2 1/2 |
100 x 65 |
114,30 |
73,02 |
101.60 |
4 x 2 |
100 x 50 |
114,30 |
60,32 |
101.60 |
4 x 1 1/2 |
100 x 40 |
114,30 |
48,26 |
101.60 |
5 x 4 |
125 x 100 |
141,30 |
114,30 |
127,00 |
5 x 3 1/2 |
125 x 90 |
141,30 |
101,60 |
127,00 |
5 x 3 |
125 x 80 |
141,30 |
88,90 |
127,00 |
5 x 2 1/2 |
125 x 65 |
141,30 |
73,02 |
127,00 |
5 x 2 |
125 x 50 |
141,30 |
60,32 |
127,00 |
6 x 5 |
150 x 125 |
168,27 |
141,30 |
139,7 |
6 x 4 |
150 x 100 |
168,27 |
114,30 |
139,7 |
6 x 1/2 |
150 x 90 |
168,27 |
101,60 |
139,7 |
6 x 3 |
150 x 80 |
168,27 |
88,90 |
139,7 |
6 x 1/2 |
150 x 65 |
168,27 |
73,02 |
139,7 |
8 x 6 |
200 x 150 |
219,07 |
168,27 |
152,4 |
8 x 5 |
200 x 125 |
219,07 |
141,30 |
152,4 |
8 x 4 |
200 x 100 |
219,07 |
114,30 |
152,4 |
8 x 3 1/2 |
200 x 90 |
219,07 |
101,60 |
152,4 |
10 x 8 |
250 x 200 |
273,05 |
219,07 |
177,8 |
10 x 6 |
250 x 150 |
273,05 |
168,27 |
177,8 |
10 x 5 |
250 x 125 |
273,05 |
141,30 |
177,8 |
10 x 4 |
250 x 100 |
273,05 |
114,30 |
177,8 |
12 x 10 |
300 x 250 |
323,85 |
273,05 |
203,2 |
12 x 8 |
300 x 200 |
323,85 |
219,07 |
203,2 |
12 x 6 |
300 x 150 |
323,85 |
168,27 |
203,2 |
12 x 5 |
300 x 125 |
323,85 |
141,30 |
203,2 |
14 x 12 |
350 x 300 |
355,60 |
323,85 |
330,2 |
14 x 10 |
350 x 250 |
355,60 |
273,05 |
330,2 |
14 x 8 |
350 x 200 |
355,60 |
219,07 |
330,2 |
14 x 6 |
350 x 150 |
355,60 |
168,27 |
330,2 |
16 x 14 |
400 x 350 |
406,40 |
355,60 |
355,6 |
16 x 12 |
400 x 300 |
406,40 |
323,85 |
355,6 |
16 x 10 |
400 x 250 |
406,40 |
273,05 |
355,6 |
16 x 8 |
400 x 200 |
406,40 |
219,07 |
355,6 |
18 x 16 |
450 x 400 |
457,20 |
406,40 |
381,0 |
18 x 14 |
450 x 350 |
457,20 |
355,60 |
381,0 |
18 x 12 |
450 x 300 |
457,20 |
323,85 |
381,0 |
18 x 10 |
450 x 250 |
457,20 |
273,05 |
381,0 |
20 x 18 |
500 x 450 |
508,00 |
457,20 |
508,0 |
20 x 16 |
500 x 400 |
508,00 |
406,40 |
508,0 |
20 x 14 |
500 x 350 |
508,00 |
355,60 |
508,0 |
20 x 12 |
500 x 300 |
508,00 |
323,85 |
508,0 |
22 x 20 |
550 x 500 |
558,80 |
508,00 |
508,0 |
22 x 18 |
550 x 450 |
558,80 |
457,20 |
508,0 |
22 x 16 |
550 x 400 |
558,80 |
406,40 |
508,0 |
22 x 14 |
550 x 350 |
558,80 |
355,60 |
508,0 |
24 x 22 |
600 x 550 |
609,6 |
558,80 |
508,0 |
24 x 20 |
600 x 500 |
609,6 |
508,00 |
508,0 |
24 x 18 |
600 x 450 |
609,6 |
457,20 |
508,0 |
24 x 16 |
600 x 400 |
609,6 |
406,40 |
508,0 |
Dimension in mm. |
REDUCERS - Ansi 16.9 tolerances
DIMENSIONAL TOLERANCES - REDUCERS |
|
Reducers |
Nominal Pipe Size (NPS) |
Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness
t / t1 |
Overall Length
H |
1/2 a 2 1/2 |
1 |
0,8 |
Not |
2 |
3 a 3 1/2 |
1 |
1,6 |
less |
2 |
4 |
+2 -1 |
1,6 |
than |
2 |
5 a 6 |
+3 -1 |
1,6 |
87,50% |
2 |
8 |
2 |
1,6 |
of nominal |
2 |
10 |
+4 -3 |
3,2 |
tickness |
2 |
12 a 18 |
+4 -3 |
3,2 |
|
3 |
20 a 24 |
+6 -5 |
4,8 |
|
3 |
26 a 30 |
+7 -5 |
4,8 |
|
3 |
32 a 48 |
+7 -5 |
4,8 |
|
5 |
REDUCERS - Weights
WEIGHTS OF FITTINGS |
NPS
inches |
REDUCERS* |
Sch.
5S |
Sch.
10S |
Sch.
40S |
Sch.
80S |
1/2 |
0.04 |
0.04 |
0.05 |
0.06 |
3/4 |
0.10 |
0.10 |
0.14 |
0.18 |
1 |
0.12 |
0.12 |
0.16 |
0.22 |
1 1/4 |
0.18 |
0.18 |
0.22 |
0.27 |
1 1/2 |
0.21 |
0.21 |
0.28 |
0.33 |
2 |
0.30 |
0.30 |
0.40 |
0.55 |
2 1/2 |
0.45 |
0.45 |
0.80 |
1.00 |
3 |
0.50 |
0.50 |
0.90 |
1.20 |
4 |
0.80 |
0.80 |
1.50 |
2.20 |
5 |
1.40 |
1.40 |
2.70 |
3.70 |
6 |
2.00 |
2.00 |
4.00 |
5.80 |
8 |
3.10 |
3.10 |
6.90 |
9.30 |
10 |
4.80 |
4.80 |
10.5 |
14.5 |
12 |
9.00 |
9.00 |
19.0 |
25.0 |
14 |
15.5 |
15.5 |
31.0 |
41.5 |
16 |
19.0 |
19.0 |
38.0 |
50.5 |
18 |
23.0 |
23.0 |
46.0 |
61.5 |
20 |
34.0 |
34.0 |
58.5 |
78.0 |
24 |
50.0 |
50.0 |
75.0 |
100 |
Approximate weights in kg, density 8 kg/dm3 |
Weights are referred to the reduction with the first smaller diameter |

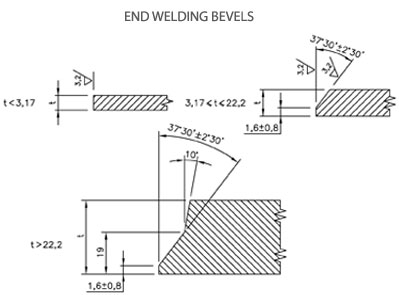

REDUCERS - End welding bevels
