We are regular suppliers from China for ASME B16.9 Reducing Outlet Tees and Reducing Outlet Crosses
|
|
Home / Products / Butt-Welding Fittings / ASME B16.9 Reducing Outlet Tees and Reducing Outlet Crosses
Hexion Steel & Engineering believes in long term relationship with our clients worldwide, Required Quality in reasonable price of ASME B16.9 Reducing Outlet Tees and Reducing Outlet Crosses are always our main priority. We are known as specialist in ASME B16.9 Reducing Outlet Tees and Reducing Outlet Crosses,70% of our customers are associated with us for their regular requirements of ASME B16.9 Reducing Outlet Tees and Reducing Outlet Crosses, Chinese suppliers also procures ASME B16.9 Reducing Outlet Tees and Reducing Outlet Crosses from us bcz. We have the specialization & 35 years of experience to manufacture ASME B16.9 Reducing Outlet Tees and Reducing Outlet Crosses.
ASME B16.9 Reducing Outlet Tees and Reducing Outlet Crosses
Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
Schedule: |
Sch 5 TO Sch XXS. |
Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Type: |
Butt Weld (BW) |
Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
Dimension: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions
ASME B16.9
FACTORY-MADE WROUGHT BUTTWELDING FITTINGS

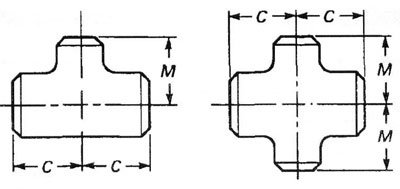

DIMENSIONS OF REDUCING OUTLET TEES AND REDUCING OUTLET CROSSES
Nominal Pipe Size (NPS) |
DN |
Outlet Diameter at Bevel |
Center- to-End
|
Run |
Outlet |
Run.C |
Outlet. M[Notes(1)] |
1/2*1/2*3/8 |
15*15*10 |
21.3 |
17.3 |
25 |
25 |
1/2*1/2*1/4 |
15*15*8 |
21.3 |
13.7 |
25 |
25 |
3/4*3/4*1/2 |
20*20*15 |
26.7 |
21.3 |
29 |
29 |
3/4*3/4*3/8 |
20*20*10 |
26.7 |
17.3 |
29 |
29 |
1*1*3/4 |
25*25*20 |
33.4 |
26.7 |
38 |
38 |
1*1*1/2 |
25*25*15 |
33.4 |
21.3 |
38 |
38 |
1-1/4*1-1/4*1 |
32*32*25 |
42.2 |
33.4 |
48 |
48 |
1-1/4*1-1/4*3/4 |
32*32*20 |
42.2 |
26.7 |
48 |
48 |
1-1/4*1-1/4*1/2 |
32*32*15 |
42.2 |
21.3 |
48 |
48 |
1-1/2*1-1/2*1-1/4 |
40*40*32 |
48.3 |
42.2 |
57 |
57 |
1-1/2*1-1/2*1 |
40*40*25 |
48.3 |
33.4 |
57 |
57 |
1-1/2*1-1/2*3/4 |
40*40*20 |
48.3 |
26.7 |
57 |
57 |
1-1/2*1-1/2*1/2 |
40*40*15 |
48.3 |
21.3 |
57 |
57 |
2*2*1-1/2 |
50*50*40 |
60.3 |
48.3 |
64 |
60 |
2*2*1-1/4 |
50*50*32 |
60.3 |
42.2 |
64 |
57 |
2*2*1 |
50*50*25 |
60.3 |
33.4 |
64 |
51 |
2*2*3/4 |
50*50*20 |
60.3 |
73.0 |
64 |
44 |
2-1/2*2-1/2*2 |
65*65*50 |
73.0 |
60.3 |
76 |
70 |
2-1/2*2-1/2*1-1/2 |
65*65*40 |
73.0 |
48.3 |
76 |
67 |
2-1/2*2-1/2*1-1/4 |
65*65*32 |
73.0 |
42.2 |
76 |
64 |
2-1/2*2-1/2*1 |
65*65*25 |
73.0 |
88.9 |
76 |
57 |
3*3*2-1/2 |
80*80*65 |
88.9 |
73.0 |
86 |
83 |
3*3*2 |
80*80*50 |
88.9 |
60.3 |
86 |
76 |
3*3*1-1/2 |
80*80*40 |
88.9 |
48.3 |
86 |
73 |
3*3*1-1/4 |
80*80*32 |
88.9 |
101.6 |
86 |
70 |
3-1/2*3-1/2*3 |
90*90*80 |
101.6 |
88.9 |
95 |
92 |
3-1/2*3-1/2*2-1/2 |
90*90*65 |
101.6 |
73.0 |
95 |
89 |
3-1/2*3-1/2*2 |
90*90*50 |
101.6 |
60.3 |
95 |
83 |
3-1/2*3-1/2*1-1/2 |
90*90*40 |
101.6 |
48.3 |
95 |
79 |
4*4*3-1/2 |
100*100*90 |
114.3 |
101.6 |
105 |
102 |
4*4*3 |
100*100*80 |
114.3 |
88.9 |
105 |
98 |
4*4*2-1/2 |
100*100*65 |
114.3 |
73.0 |
105 |
95 |
4*4*2 |
100*100*50 |
114.3 |
60.3 |
105 |
89 |
4*4*1-1/2 |
100*100*40 |
114.3 |
48.3 |
105 |
86 |
5*5*4 |
125*125*100 |
141.3 |
114.3 |
124 |
117 |
5*5*3-1/2 |
125*125*90 |
141.3 |
101.6 |
124 |
114 |
5*5*3 |
125*125*80 |
141.3 |
88.9 |
124 |
111 |
5*5*2-1/2 |
125*125*65 |
141.3 |
73.6 |
124 |
108 |
5*5*2 |
125*125*50 |
141.3 |
60.3 |
124 |
105 |
GENERAL NOTE: All dimensions are in millimeter.
NOTE: Outlet dimension M for run sizes NPS 14(DN350) and larger is recommended but not required.
DIMENSIONS OF REDUCING OUTLET TEES AND REDUCING OUTLET CROSSES
Nominal Pipe Size (NPS) |
DN |
Outlet Diameter at Bevel |
Center-to-End
|
Run |
Outlet |
Run.C |
Outlet. M[Notes(1)] |
6*6*5 |
150* 150*125 |
168.3 |
114.3 |
143 |
137 |
6*6*4 |
150*150*100 |
168.3 |
141.3 |
143 |
130 |
6*6*3-1/2 |
150*150*90 |
168.3 |
101.6 |
143 |
127 |
6*6*3 |
150*150*80 |
168.3 |
88.9 |
143 |
124 |
6*6*2-1/2 |
150*150*65 |
168.3 |
73.0 |
143 |
121 |
8*8*6 |
200*200*150 |
219.1 |
168.3 |
178 |
168 |
8*8*5 |
200*200*125 |
219.1 |
141.3 |
178 |
162 |
8*8*4 |
200*200*100 |
219.1 |
114.3 |
178 |
156 |
8*8*3-1/2 |
200*200*90 |
219.1 |
101.6 |
178 |
152 |
10*10*8 |
250*250*200 |
273.0 |
219.1 |
216 |
203 |
10*10*6 |
250*250*150 |
273.0 |
168.3 |
216 |
194 |
10*10*5 |
250*250*125 |
273.0 |
141.3 |
216 |
191 |
10*10*4 |
250*250*100 |
273.0 |
114.3 |
216 |
184 |
12*12*10 |
300*300*250 |
323.8 |
273.0 |
254 |
241 |
12*12*8 |
300*300*200 |
323.8 |
219.1 |
254 |
229 |
12*12*6 |
300*300*150 |
323.8 |
168.3 |
254 |
219 |
12*12*5 |
300*300*125 |
323.8 |
141.3 |
254 |
216 |
14*14*12 |
350*350*300 |
355.6 |
323.8 |
279 |
270 |
14*14*10 |
350*350*250 |
355.6 |
273.0 |
279 |
257 |
14*14*8 |
350*350*200 |
355.6 |
219.1 |
279 |
248 |
14*14*6 |
350*350*150 |
355.6 |
168.3 |
279 |
238 |
16*16*14 |
400*400*350 |
406.4 |
355.6 |
305 |
305 |
16*16*12 |
400*400*300 |
406.4 |
323.8 |
305 |
295 |
16*16*10 |
400*400*250 |
406.4 |
273.0 |
305 |
283 |
16*16*8 |
400*400*200 |
406.4 |
219.1 |
305 |
273 |
16*16*6 |
400*400*150 |
406.4 |
168.3 |
305 |
264 |
18*18*16 |
450*450*400 |
457 |
406.4 |
343 |
330 |
18*18*14 |
450*450*350 |
457 |
355.6 |
343 |
330 |
18*18*12 |
450*450*300 |
457 |
323.8 |
343 |
321 |
18*18*10 |
450*450*250 |
457 |
273.0 |
343 |
308 |
18*18*8 |
450*450*200 |
457 |
219.1 |
343 |
298 |
20*20*18 |
500*500*450 |
508 |
457 |
381 |
368 |
20*20*16 |
500*500*400 |
508 |
406.4 |
381 |
356 |
20*20*14 |
500*500*350 |
508 |
355.6 |
381 |
356 |
20*20*12 |
500*500*300 |
508 |
323.8 |
381 |
346 |
20*20*10 |
500*500*250 |
508 |
273.0 |
381 |
333 |
20*20*8 |
500*500*200 |
508 |
219.1 |
381 |
324 |
22*22*20 |
550*550*500 |
559 |
508 |
419 |
406 |
22*22*18 |
550*550*450 |
559 |
457 |
419 |
394 |
22*22*16 |
550*550*400 |
559 |
406.4 |
419 |
381 |
22*22*14 |
550*550*350 |
559 |
355.6 |
419 |
381 |
22*22*12 |
550*550*300 |
559 |
323.8 |
419 |
371 |
22*22*10 |
550*550*250 |
559 |
273.0 |
419 |
359 |
24*24*22 |
600*600*550 |
610 |
559 |
432 |
432 |
24*24*20 |
600*600*500 |
610 |
508 |
432 |
432 |
24*24*18 |
600*600*450 |
610 |
457 |
432 |
419 |
24*24*16 |
600*600*400 |
610 |
406.4 |
432 |
406 |
24*24*14 |
600*600*350 |
610 |
355.6 |
432 |
406 |
24*24*12 |
600*600*300 |
610 |
323.8 |
432 |
397 |
24*24*10 |
600*600*250 |
610 |
273.0 |
432 |
384 |
26*26*24 |
650*650*600 |
660 |
610 |
495 |
483 |
26*26*22 |
650*650*550 |
660 |
559 |
495 |
470 |
26*26*20 |
650*650*500 |
660 |
508 |
495 |
457 |
26*26*18 |
650*650*450 |
660 |
457 |
495 |
444 |
26*26*16 |
650*650*400 |
660 |
406.4 |
495 |
432 |
26*26*14 |
650*650*350 |
660 |
355.6 |
495 |
432 |
26*26*12 |
650*650*300 |
660 |
323.8 |
495 |
432 |
28*28*26 |
700*700*650 |
711 |
660 |
521 |
422 |
28*28*24 |
700*700*600 |
711 |
610 |
521 |
521 |
28*28*22 |
700*700*550 |
711 |
559 |
521 |
508 |
28*28*20 |
700*700*500 |
711 |
508 |
521 |
495 |
28*28*18 |
700*700*450 |
711 |
457 |
521 |
483 |
28*28*16 |
700*700*400 |
711 |
406.4 |
521 |
470 |
28*28*14 |
700*700*350 |
711 |
355.6 |
521 |
457 |
28*28*12 |
700*700*300 |
711 |
323.8 |
521 |
457 |
30*30*28 |
750*750*700 |
762 |
711 |
559 |
448 |
30*30*26 |
750*750*650 |
762 |
660 |
559 |
546 |
30*30*24 |
750*750*600 |
762 |
610 |
559 |
546 |
30*30*22 |
750*750*550 |
762 |
559 |
559 |
533 |
30*30*20 |
750*750*500 |
762 |
508 |
559 |
521 |
30*30*18 |
750*750*450 |
762 |
457 |
559 |
508 |
30*30*16 |
750*750*400 |
762 |
406.4 |
559 |
495 |
30*30*14 |
750*750*350 |
762 |
355.6 |
559 |
483 |
30*30*12 |
750*750*300 |
762 |
323.8 |
559 |
473 |
30*30*10 |
750*750*250 |
762 |
273.0 |
559 |
460 |
32*32*30 |
800*800*750 |
813 |
762 |
597 |
584 |
32*32*28 |
800*800*700 |
813 |
711 |
597 |
572 |
32*32*26 |
800*800*650 |
813 |
660 |
597 |
572 |
32*32*24 |
800*800*600 |
813 |
610 |
597 |
559 |
32*32*22 |
800*800*550 |
813 |
559 |
597 |
546 |
32*32*20 |
800*800*500 |
813 |
508 |
597 |
533 |
32*32*18 |
800*800*450 |
813 |
457 |
597 |
521 |
32*32*16 |
800*800*400 |
813 |
406.4 |
597 |
508 |
32*32*14 |
800*800*350 |
813 |
355.6 |
597 |
508 |
34*34*32 |
850*850*800 |
813 |
813 |
635 |
622 |
34*34*30 |
850*850*750 |
813 |
762 |
635 |
610 |
34*34*28 |
850*850*700 |
813 |
711 |
635 |
597 |
34*34*26 |
850*850*650 |
813 |
660 |
635 |
597 |
34*34*24 |
850*850*600 |
813 |
610 |
635 |
584 |
34*34*22 |
850*850*550 |
813 |
559 |
635 |
572 |
34*34*20 |
850*850*500 |
813 |
508 |
635 |
559 |
34*34*18 |
850*850*450 |
813 |
457 |
635 |
546 |
34*34*16 |
850*850*400 |
813 |
406.4 |
635 |
533 |
GENERAL NOTE: All dimensions are in millimeter.
note: Outlet dimension M for run sizes NPS 14(DN350) and larger is recommended but not required.
Main Export Market
- Eastern Europe
- North America
- Mid East/Africa
- Central/South America
- Asia
- Western Europe
- Australasia
- UAE
Sales Locations
U.A.E,
Oman,
Saudi Arabia,
Qatar,
Bahrain,
Egypt,
Turkey
Singapore,
Thailand,
Malaysia
Indonesia
Poland
Italy
Portugal
Spain
Brazil
Chile
Venezuela
Costa Rica
USA
Canada
Angola
Sri Lanka
Russia
|
