We are regular suppliers from China for ANSI/ASME B16.9 Butt welding Barrel Nipple
|
|
Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 Butt welding Barrel Nipple
A short stub of pipe, usually threaded steel, brass, chlorinated polyvinyl chloride (CPVC) or copper; occasionally just bare copper. A nipple is defined as being a short stub of pipe which has external male pipe threads at each end, for connecting two other fittings. Nipples are commonly used for plumbing and hoses, and second as valves for funnels and pipes

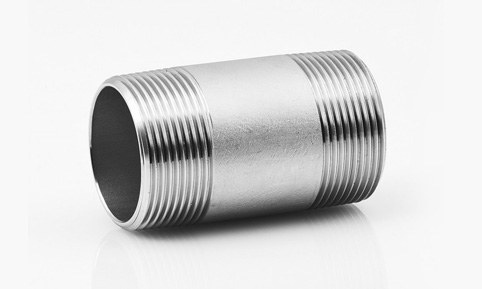

ANSI/ASME B16.9 Butt welding Barrel Nipple
| Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Schedule: |
Sch 5 TO Sch XXS. |
| Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
| Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: |
Butt Weld (BW) |
| Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions
Technics: Precision Casting
Model Number: DN6—DN100
For general chemical and industrial services
Body Material: SS304, SS316
Standard: ANSI, DIN, JIS
Certification: ISO 9001:2008
Dimension: 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
Work Pressure: 150 PSI
Applicable Medium: water, oil, gas
S.40 Stainless Steel Barrel Nipple
Dimensions: Unit：mm |
| SIZE |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
| S |
1.7 |
2.0 |
2.0 |
2.5 |
2.5 |
3.2 |
| L |
40.0 |
40.0 |
40.0 |
60.0 |
60.0 |
60.0 |
| SIZE |
1-1/4" |
1-1/2" |
2" |
2-1/2" |
3" |
4" |
| S |
3.2 |
3.2 |
3.6 |
3.6 |
4.0 |
4.5 |
| L |
80.0 |
80.0 |
100.0 |
100.0 |
120.0 |
120.0 |
