We are regular suppliers from China for ANSI/ASME B16.9 Straight Tees and Crosses
|
|
Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 Straight Tees and Crosses

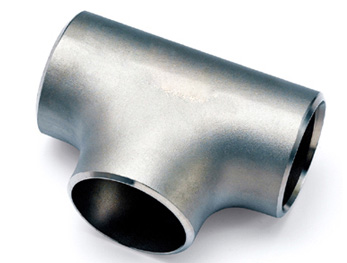

Pipe Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. Pipe Tee is used to connect pipelines with a pipe at a right angle with the line. Pipe Tees are widely used as pipe fittings. They are made of various materials and available in various sizes and finishes. Pipe tees are extensively used in pipeline networks to transport two-phase fluid mixtures.
ANSI/ASME B16.9 Straight Tees and Crosses
Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
Schedule: |
Sch 5 TO Sch XXS. |
Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Type: |
Butt Weld (BW) |
Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
Dimension: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions

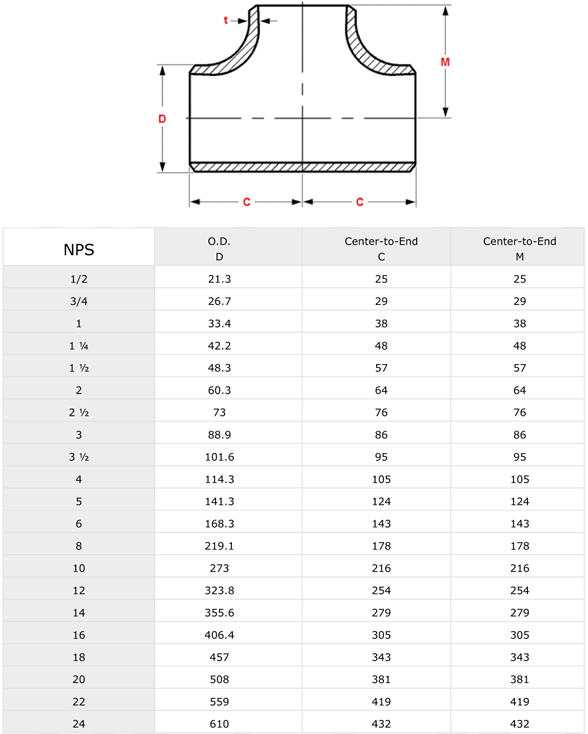

Dimensions butt welded Straight Tees - NPS 1/2 - 48 according to ASME B16.9
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.

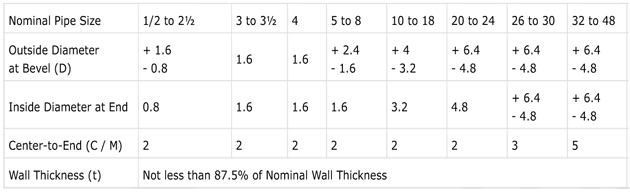

DIMENSIONAL TOLERANCES STRAIGHT TEES ACCORDING TO ASME B16.9
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
Note:
MSS SP-43 only covers stainless steel buttweld fittings made for use with Schedule 5S and 10S pipe and Stub Ends
suitable for use with Schedule 40S pipe, as defined in ASME B36.19M. The dimensions and tolerances defined in
MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 up to NPS 24. Except
with regard to the outside diameter at the bevel.
FACTORY-MADE WROUGHT BUTTWELDING FITTINGS - ASME B16.9

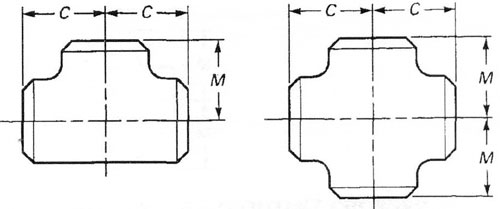

DIMENSIONS OF STRAIGHT TEES AND CROSSES
Nominal Pipe Size (NPS) |
DN |
Outside Diameter at Bevel |
Center- to-End
|
Run.C |
Outlet. M[Notes(1) and (2)] |
1/2 |
15 |
21.3 |
25 |
25 |
3/4 |
20 |
26.7 |
29 |
29 |
1 |
25 |
33.4 |
38 |
38 |
1-1/4 |
32 |
42.2 |
48 |
48 |
1-1/2 |
40 |
48.3 |
57 |
57 |
2 |
50 |
60.3 |
64 |
64 |
2-1/2 |
65 |
73.0 |
76 |
76 |
3 |
80 |
88.9 |
86 |
86 |
3-1/2 |
90 |
101.6 |
95 |
95 |
4 |
100 |
114.3 |
105 |
105 |
5 |
125 |
141.3 |
124 |
124 |
6 |
150 |
168.3 |
143 |
143 |
8 |
200 |
219.1 |
178 |
178 |
10 |
250 |
273.0 |
216 |
216 |
12 |
300 |
323.8 |
254 |
254 |
14 |
350 |
355.6 |
279 |
279 |
16 |
400 |
406.4 |
305 |
305 |
18 |
450 |
457 |
343 |
343 |
20 |
500 |
508 |
381 |
381 |
22 |
550 |
559 |
419 |
419 |
24 |
600 |
610 |
432 |
432 |
26 |
650 |
660 |
495 |
495 |
28 |
700 |
711 |
521 |
521 |
30 |
750 |
762 |
559 |
559 |
32 |
800 |
813 |
597 |
597 |
34 |
850 |
864 |
635 |
635 |
36 |
900 |
914 |
673 |
673 |
38 |
950 |
965 |
711 |
711 |
40 |
1000 |
1016 |
749 |
749 |
42 |
1050 |
1067 |
762 |
711 |
44 |
1100 |
1118 |
813 |
762 |
46 |
1150 |
1168 |
851 |
800 |
48 |
1200 |
1219 |
889 |
838 |
GENERAL NOTES: All dimensions are in millimeters.
(a). Outlet dimension M for NPS 26(DN 650) and large is recommended but not required.
(b). Dimensions applicable to crosses NPS 24(DN 600) and smaller.
