We are industrial suppliers of ASME B16.9 1.5D Elbow
|
|
Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 1.5D Elbow
Our company is a big leading professional Supplier of Butt Weld Pipe Fittings according to A234 WPB ASTM ANSI B16.9 1.5 D standard.

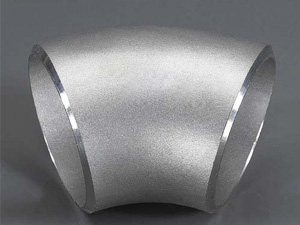

ANSI/ASME B16.9 1.5D Elbow
Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
Schedule: |
Sch 5 TO Sch XXS. |
Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Type: |
Butt Weld (BW) |
Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
Dimension: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions
Metric 90 Elbows Radius = 1.5D - in Type 316L and Type 304L
Inside |
Wall |
Centreline |
Weight |
Diameter |
Thickness |
Radius |
Per Piece |
'A' mm |
'B' mm |
'C' mm |
kilos |
15 |
1.50 |
30 |
0.03 |
20 |
1.50 |
35 |
0.04 |
25 |
1.50 |
32.5 |
0.06 |
32 |
1.50 |
45 |
0.11 |
40 |
1.50 |
60 |
0.20 |
50 |
2.00 |
73 |
0.31 |
65 |
2.00 |
95 |
0.52 |
80 |
2.00 |
123 |
0.77 |
100 |
2.00 |
150 |
1.20 |
100 |
3.00 |
150 |
1.79 |
125 |
2.00 |
188 |
1.88 |
150 |
2.00 |
225 |
2.69 |
150 |
3.00 |
225 |
4.09 |
