We are regular suppliers from China for ANSI/ASME B16.9 45° Long Radius Elbow
|
|
Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 45° Long Radius Elbow
We offer 90 Degree Long Radius Elbows product Code SBF1001 in following Material specification stated Below. We provide this product as per ASME/ANSI B16.9 Specification.
ANSI/ASME B16.9 45° Long Radius Elbow
Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
Schedule: |
Sch 5 TO Sch XXS. |
Sizes: |
Diameters - from 21,3 to 711 mm.
Wall Thickness - from 2 to 40 mm. |
Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Type: |
Butt Weld (BW) |
Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
Dimension: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions

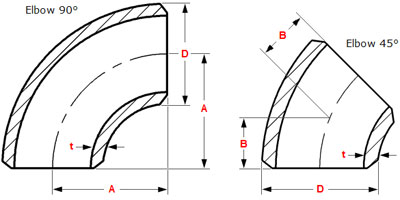

Dimensions Butt Weld Elbows 45° - 90° LR & 3D ASME B16.9
NPS |
O.D.
D |
90 degrees
Long Radius
Center-to-End
A |
45 degrees
Long Radius
Center-to-End
B |
90 degrees
3D
Center-to-End
A |
45 degrees
3D
Center-to-End
B |
1/2 |
21.3 |
38 |
16 |
- |
- |
3/4 |
26.7 |
38 |
19 |
57 |
24 |
1 |
33.4 |
38 |
22 |
76 |
31 |
1¼ |
42.2 |
48 |
25 |
95 |
39 |
1½ |
48.3 |
57 |
29 |
114 |
47 |
2 |
60.3 |
76 |
35 |
152 |
63 |
2½ |
73 |
95 |
44 |
190 |
79 |
3 |
88.9 |
114 |
51 |
229 |
95 |
3½ |
101.6 |
133 |
57 |
267 |
111 |
NPS |
O.D.
D |
90 degrees
Long Radius
Center-to-End
A |
45 degrees
Long Radius
Center-to-End
B |
90 degrees
3D
Center-to-End
A |
45 degrees
3D
Center-to-End
B |
|
NPS |
O.D.
D |
90 degrees
Long Radius
Center-to-End
A |
45 degrees
Long Radius
Center-to-End
B |
90 degrees
3D
Center-to-End
A |
45 degrees
3D
Center-to-End
B |
4 |
114.3 |
152 |
64 |
305 |
127 |
5 |
141.3 |
190 |
79 |
381 |
157 |
6 |
168.3 |
229 |
95 |
457 |
189 |
8 |
219.1 |
305 |
127 |
610 |
252 |
10 |
273 |
381 |
159 |
762 |
316 |
12 |
323.8 |
457 |
190 |
914 |
378 |
14 |
355.6 |
533 |
222 |
1067 |
441 |
16 |
406.4 |
610 |
254 |
1219 |
505 |
18 |
457 |
686 |
286 |
1372 |
568 |
20 |
508 |
762 |
318 |
1524 |
632 |
22 |
559 |
838 |
343 |
1676 |
694 |
24 |
610 |
914 |
381 |
1829 |
757 |
26 |
660 |
991 |
406 |
1981 |
821 |
28 |
711 |
1067 |
438 |
2134 |
883 |
30 |
762 |
1143 |
470 |
2286 |
964 |
32 |
813 |
1219 |
502 |
2438 |
1010 |
34 |
864 |
1295 |
533 |
2591 |
1073 |
36 |
914 |
1372 |
565 |
2743 |
1135 |
38 |
965 |
1448 |
600 |
2896 |
1200 |
40 |
1016 |
1524 |
632 |
3048 |
1264 |
42 |
1067 |
1600 |
660 |
3200 |
1326 |
44 |
1118 |
1676 |
695 |
3353 |
1389 |
46 |
1168 |
1753 |
727 |
3505 |
1453 |
48 |
1219 |
1829 |
759 |
3658 |
1516 |
NPS |
O.D.
D |
90 degrees
Long Radius
Center-to-End
A |
45 degrees
Long Radius
Center-to-End
B |
90 degrees
3D
Center-to-End
A |
45 degrees
3D
Center-to-End
B |
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
Dimensional Tolerances of Butt Weld Elbows - 45° & 90° - LR & 3D - ASME B16.9 -
Nominal Pipe Size |
1/2 to 2½ |
3 to 3½ |
4 |
5 to 8 |
10 to 18 |
20 to 24 |
26 to 30 |
32 to 48 |
Outside Diameter
at Bevel (D) |
+ 1.6
- 0.8 |
1.6 |
1.6 |
+ 2.4
- 1.6 |
+ 4
- 3.2 |
+ 6.4
- 4.8 |
+ 6.4
- 4.8 |
+ 6.4
- 4.8 |
Inside Diameter at End |
0.8 |
1.6 |
1.6 |
1.6 |
3.2 |
4.8 |
+ 6.4
- 4.8 |
+ 6.4
- 4.8 |
Center-to-End LR (A/B) |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
5 |
Center-to-End 3D (A/B) |
3 |
3 |
3 |
3 |
3 |
3 |
6 |
6 |
Wall Thickness (t) |
Not less than 87.5% of Nominal Wall Thickness |
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
