Our diverse range of Stainless Steel Caps find their application in different industries. Available in various shapes, sizes and design, these products are precision made. High in efficiency, our products conform to the international standards of quality. Our products are made from Ansi B-16.9 Elbows grade of steel.

ANSI/ASME B16.9 Butt weld Pipe Cap

ANSI/ASME B16.9 Butt weld End Cap Manufacturer & Exporter

Standards: ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule: Sch 5 TO Sch XXS.
Sizes: Outside diameter : 1/2" à 24" (21,34 - 609,5 mm)

Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS (1,65 - 59.51 mm)
Materials: Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW)
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Enquiry

Dimensions

ANSI/ASME B16.9 Butt weld Pipe Cap Manufacturer & Exporter

Nominal Pipe Size Outside diameter
at bevel
Length (E) Limit wall thickness
1/2" 21.3 25 4.57
3/4" 26.7 25 3.81
1" 33.4 38 4.57
1 1/4" 42.2 38 4.83
1 1/2" 48.3 38 5.08
2" 60.3 38 5.59
2 1/2" 73.0 38 7.11
3" 88.9 51 7.62
3 1/2" 101.6 64 8.13
4" 114.3 64 8.64
5" 141.3 76 9.65
6" 168.3 89 10.92
8" 219.1 102 12.70
10" 273.0 127 12.70
12" 323.8 152 12.70
14" 355.6 165 12.70
16" 406.4 178 12.70
18" 457.0 203 12.70
20" 508.0 229 12.70
22" 559.0 254 12.70
24" 610.0 267 12.70

The dimensions are in millimeters
Source : ASME B16.9 - 2007

CAPS - Ansi 16.9 dimensions

CAPS - Ansi 16.9 dimensions

CAPS - ANSI B 16.9 dimension

inches mm Height
D E
1/2 15 21,34 25,40
3/4 20 26,67 31,75
  25 33,40 38,10
1 1/4 32 42,16 38,10
1 1/2 40 48,26 38,10
2 50 60,32 38,10
2 1/2 65 73,02 38,10
3 80 88,90 50,80
3 1/2 90 101,60 63,50
4 100 114,30 63,50
5 125 141,30 76,20
6 150 168,27 88,90
8 200 219,07 101,60
10 250 273,05 127,00
12 300 323,85 152,40
14 350 355,60 165,10
16 400 406,40 177,80
18 450 457,20 203,20
20 500 508,00 228,60
22 550 558,80 254,00
24 600 609,60 266,70
28    700 711,20 266,70
Dimension in mm


CAPS - Ansi 16.9 tolerances

CAPS - Ansi 16.9 dimensions

DIMENSIONAL TOLERANCES - CAPS
For all fittings Caps
Nominal Pipe Size (NPS) Outside Ø at Bevel Inside Ø at End Wall Thickness
t / t1
Overall Length E
1/2 a 2 1/2 1 0,8 Not 4
3 a 3 1/2 1 1,6 less 4
4 +2 -1 1,6 than 4
5 a 6 +3 -1 1,6 87,50% 7
8 2 1,6 of nominal 7
10 +4 -3 3,2 tickness 7
12 a 18 +4 -3 3,2   7
20 a 24 +6 -5 4,8   7
26 a 30 +7 -5 4,8   10
32 a 48 +7 -5 4,8   10


CAPS - Weights

WEIGHTS OF FITTINGS
NPS
inches
CAPS
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
1/2 0.04 0.04 0.05 0.05
3/4 0.05 0.05 0.06 0.08
1 0.09 0.09 0.13 0.17
1 1/4 0.11 0.11 0.15 0.18
1 1/2 0.15 0.15 0.20 0.22
2 0.17 0.17 0.25 0.30
2 1/2 0.25 0.25 0.45 0.50
3 0.40 0.40 0.70 0.90
4 0.60 0.60 1.20 1.60
5 1.00 1.00 1.90 2.70
6 1.40 1.40 2.90 4.30
8 2.50 2.50 5.10 7.60
10 3.90 3.90 9.00 12.0
12 6.50 6.50 13.5 17.5
14 8.00 8.00 16.0 20.5
16 14.5 14.5 20.5 26.0
18 17.0 17.0 26.0 34.0
20 18.0 18.0 32.0 43.0
24 26.0 26.0 46.0 60.0
Approximate weights in kg, density 8 kg/dm3

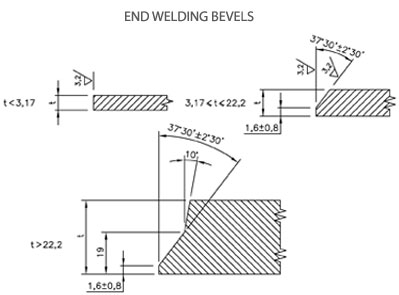

CAPS - End welding bevels
