We are regular suppliers from China for ANSI/ASME B16.9 Butt weld Short Stubend
|
|
Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 Butt weld Short Stubend
Our high quality B16.9 Butt weld Short Stubend is tested and verified for durability, accuracy and precision. The B16.9 Butt weld Short Stubend is manufactured in all standard dimensions. The stub end is provided with a standard weld bevel and can be available in squared, flanged, Victaulic and threaded ends. We offer B16.9 Butt weld Short Stubend at highly competitive prices. Entire range is manufactured using the best quality raw material and latest technology in compliance with the set global industry norms. Our precious clients can avail this product with short end.

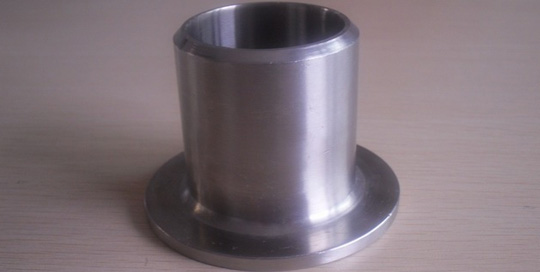

ANSI/ASME B16.9 Butt weld Short Stubend
| Standards: |
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Schedule: |
Sch 5 TO Sch XXS. |
| Sizes: |
1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” ) |
| Materials: |
Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: |
Butt Weld (BW) |
| Thickness: |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions
Stub Ends Short Type "C"
| Product |
Nom. Pipe Size |
Diameter (G) |
Length (J) |
Outside Diameter (O.D.) |
Schedule 10S Approx. Weight |
Schedule 10S, Inside Diameter (I.D.) |
Schedule 10S, Wall Thickness (T) |
Schedule 5S Approx. Weight |
Schedule 5S, Inside Diameter (I.D.) |
Schedule 5S, Wall Thickness (T) |
| 1 1/2" Lap- Joint Stub End / Stub Ends Short Type "C" |
1.5 |
2.875 |
2 |
1.9 |
0.44 |
1.682 |
0.109 |
0.29 |
1.77 |
0.065 |
| 1 1/4" Lap- Joint Stub End / Stub Ends Short Type "C" |
1.25 |
2.5 |
2 |
1.66 |
0.42 |
1.442 |
0.109 |
0.21 |
1.53 |
0.065 |
| 1" Lap- Joint Stub End / Stub Ends Short Type "C" |
1 |
2 |
2 |
1.315 |
0.31 |
1.097 |
0.109 |
0.19 |
1.185 |
0.065 |
| 1/2" Lap- Joint Stub End / Stub Ends Short Type "C" |
0.5 |
1.375 |
2 |
0.84 |
0.14 |
0.674 |
0.083 |
0.13 |
0.71 |
0.065 |
| 10" Lap- Joint Stub End / Stub Ends Short Type "C" |
10 |
12.75 |
5 |
10.75 |
9.46 |
1042 |
0.165 |
7.48 |
10.482 |
0.134 |
| 12" Lap- Joint Stub End / Stub Ends Short Type "C" |
12 |
15 |
6 |
12.75 |
16.07 |
12.39 |
0.18 |
15 |
12.438 |
0.156 |
| 14" Lap- Joint Stub End / Stub Ends Short Type "C" |
14 |
16.25 |
6 |
14 |
23.1 |
13.624 |
0.188 |
19.2 |
13.688 |
0.156 |
| 16" Lap- Joint Stub End / Stub Ends Short Type "C" |
16 |
18.5 |
6 |
16 |
27.2 |
15.624 |
0.188 |
23.9 |
15.67 |
0.165 |
| 18" Lap- Joint Stub End / Stub Ends Short Type "C" |
18 |
21 |
6 |
18 |
32.4 |
17.624 |
0.188 |
28.5 |
17.67 |
0.165 |
| 2 1/2" Lap- Joint Stub End / Stub Ends Short Type "C" |
2.5 |
4.125 |
2.5 |
2.875 |
1 |
2.635 |
0.12 |
0.75 |
2.709 |
0.083 |
| 2" Lap- Joint Stub End / Stub Ends Short Type "C" |
2 |
3.625 |
2.5 |
2.375 |
0.81 |
2.157 |
0.109 |
0.44 |
2.245 |
0.065 |
| 20" Lap- Joint Stub End / Stub Ends Short Type "C" |
20 |
23 |
6 |
20 |
47.7 |
19.564 |
0.218 |
36.3 |
19.624 |
0.188 |
| 24" Lap- Joint Stub End / Stub Ends Short Type "C" |
24 |
27.25 |
6 |
24 |
58.27 |
23.5 |
0.25 |
56 |
23.564 |
0.218 |
| 3" Lap- Joint Stub End / Stub Ends Short Type "C" |
3 |
5 |
2.5 |
3.5 |
1.25 |
3.26 |
0.12 |
0.94 |
3.334 |
0.083 |
| 3/4" Lap- Joint Stub End / Stub Ends Short Type "C" |
0.75 |
1.688 |
2 |
1.05 |
0.18 |
0.884 |
0.083 |
0.14 |
0.92 |
0.065 |
| 4" Lap- Joint Stub End / Stub Ends Short Type "C" |
4 |
6.188 |
3 |
4.5 |
1.88 |
4.26 |
0.12 |
1.38 |
4.334 |
0.083 |
| 5" Lap- Joint Stub End / Stub Ends Short Type "C" |
5 |
7.313 |
3 |
5.563 |
2.63 |
5.295 |
0.134 |
2.06 |
5.345 |
0.109 |
| 6" Lap- Joint Stub End / Stub Ends Short Type "C" |
6 |
8.5 |
3.5 |
6.625 |
3.56 |
6.357 |
0.134 |
2.75 |
6.407 |
0.109 |
| 8" Lap- Joint Stub End / Stub Ends Short Type "C" |
8 |
10.625 |
4 |
8.625 |
6.19 |
8.329 |
0.148 |
3.88 |
8.407 |
0.109 |
STUB ENDS - Ansi and MSS SP-43 dimensions
STUB ENDS - ANSI B 16.9 and MSS SP-43 dimension |
| inches |
ND |
mm |
Diameter of lap |
Radius of fillet |
Length F |
D |
G |
R |
R1 |
MSS SP43 |
ANSI B16.9 |
| 1/2 |
15 |
21,34 |
34,92 |
3,17 |
0,80 |
50,80 |
76,20 |
| 3/4 |
20 |
26,67 |
42,86 |
3,17 |
0,80 |
50,80 |
76,20 |
| 1 |
25 |
33,40 |
50,80 |
3,17 |
0,80 |
50,80 |
101,60 |
| 1 1/4 |
32 |
42,16 |
63,50 |
4,76 |
0,80 |
50,80 |
101,60 |
| 1 1/2 |
40 |
48,26 |
73,00 |
6,35 |
0,80 |
50,80 |
101,60 |
| 2 |
50 |
60,32 |
92,10 |
7,93 |
0,80 |
63,50 |
152,40 |
| 2 1/2 |
65 |
73,02 |
104,80 |
7,93 |
0,80 |
63,50 |
152,40 |
| 3 |
80 |
88,90 |
127,00 |
9,52 |
0,80 |
63,50 |
152,40 |
| 3 1/2 |
90 |
101,60 |
139,70 |
9,52 |
0,80 |
76,20 |
152,40 |
| 4 |
100 |
114,30 |
157,20 |
11,11 |
0,80 |
76,20 |
152,40 |
| 5 |
125 |
141,30 |
185,70 |
11,11 |
1,58 |
76,20 |
203,20 |
| 6 |
150 |
168,27 |
215,90 |
12,70 |
1,58 |
88,90 |
203,20 |
| 8 |
200 |
219,07 |
269,80 |
12,70 |
1,58 |
101,60 |
203,20 |
| 10 |
250 |
273,05 |
323,80 |
12,70 |
1,58 |
127,00 |
254,00 |
| 12 |
300 |
323,85 |
381,00 |
12,70 |
1,58 |
152,40 |
254,00 |
| 14 |
350 |
355,60 |
412,70 |
12,70 |
1,58 |
152,40 |
304,80 |
| 16 |
400 |
406,40 |
469,90 |
12,70 |
1,58 |
152,40 |
304,80 |
| 18 |
450 |
457,20 |
533,40 |
12,70 |
1,58 |
152,40 |
304,80 |
| 20 |
500 |
508,00 |
584,20 |
12,70 |
1,58 |
152,40 |
304,80 |
| 22 |
550 |
558,80 |
641,30 |
12,70 |
1,58 |
152,40 |
304,80 |
| 24 |
600 |
609,60 |
692,10 |
12,70 |
1,58 |
152,40 |
304,80 |
| The lap thickness T shall not be less than nominal pipe wall thickness t |
STUB ENDS - Ansi 16.9 tolerances
DIMENSIONAL TOLERANCES - STUB ENDS |
| For all fittings |
Stub Ends |
| Nominal Pipe Size (NPS) |
Outside Ø at Bevel |
Indide Ø at End |
Wall Thickness
t / t1
|
O.D. of Lap G |
Fillet Radius of Lap - R |
Overall Length. - F |
| 1/2 a 2 1/2 |
1 |
0,8 |
Not |
+0 -1 |
+0 -1 |
2 |
| 3 a 3 1/2 |
1 |
1,6 |
less |
+0 -1 |
+0 -1 |
2 |
| 4 |
+2 -1 |
1,6 |
than |
+0 -1 |
+0 -2 |
2 |
| 5 a 6 |
+3 -1 |
1,6 |
87,50% |
+0 -1 |
+0 -2 |
2 |
| 8 |
2 |
1,6 |
of nominal |
+0 -1 |
+0 -2 |
2 |
| 10 |
+4 -3 |
3,2 |
tickness |
+0 -2 |
+0 -2 |
2 |
| 12 to 18 |
+4 -3 |
3,2 |
|
+0 -2 |
+0 -2 |
3 |
| 20 a 24 |
+6 -5 |
4,8 |
|
+0 -2 |
+0 -2 |
3 |
| 26 a 30 |
+7 -5 |
4,8 |
|
|
|
|
| 32 a 48 |
+7 -5 |
4,8 |
|
|
|
|
STUB ENDS - Weights
NPS
inches |
STUB ENDS |
Sch.
5S |
Sch.
10S |
Sch.
40S |
Sch.
80S |
| 1/2 |
0.06 |
0.08 |
0.12 |
0.13 |
| 3/4 |
0.07 |
0.09 |
0.15 |
0.17 |
| 1 |
0.09 |
0.15 |
0.20 |
0.25 |
| 1 1/4 |
0.13 |
0.20 |
0.30 |
0.35 |
| 1 1/2 |
0.16 |
0.25 |
0.38 |
0.46 |
| 2 |
0.25 |
0.40 |
0.55 |
0.75 |
| 2 1/2 |
0.35 |
0.50 |
0.80 |
1.00 |
| 3 |
0.50 |
0.60 |
1.10 |
1.50 |
| 4 |
0.70 |
1.00 |
1.80 |
2.50 |
| 5 |
1.00 |
1.25 |
2.50 |
3.50 |
| 6 |
1.60 |
1.95 |
3.70 |
5.50 |
| 8 |
2.50 |
3.10 |
5.90 |
10.0 |
| 10 |
4.00 |
4.90 |
10.5 |
14.0 |
| 12 |
6.60 |
7.10 |
15.0 |
20.0 |
| 14 |
6.40 |
7.80 |
15.5 |
20.5 |
| 16 |
7.90 |
9.00 |
18.0 |
24.0 |
| 18 |
9.30 |
10.5 |
21.0 |
28.0 |
| 20 |
12.0 |
13.5 |
23.5 |
31.0 |
| 24 |
16.5 |
19.0 |
28.5 |
38.0 |
| Approximate weights in kg, density 8 kg/dm3 |
STUB ENDS - End welding bevels
