We are reputed manufacturers engaged in offering a wide array of AISI 1D Elbow. Our range of coupling is available in several forms, such as AISI 1D Elbow. These are known for their features, such as durability, easy installation, superior polish and perfect finish. Our product caters to the requirements of industries and is available in numerous sizes and shapes to our esteemed clients

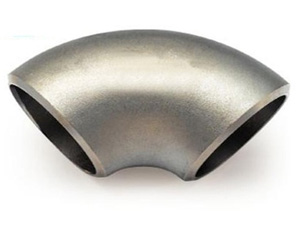

ANSI/ASME B16.9 1D Elbow

Standards:	ANSI - B 16.9 ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings' API 590-605 ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'' ASME B16.25 - 'Buttwelding Ends' ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns' MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule:	Sch 5 TO Sch XXS.
Sizes:	1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” )
Materials:	Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type:	Butt Weld (BW)
Thickness:	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension:	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Dimensions

Material:	Stainless Steel
Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe

Manufacturing Process

All BW-fittings are cold formed, annealed, pickled and shot blasted. The starting material is either plate or pipe (seamless or welded).

Standards

Butt welding fittings are manufactured in accordance with ANSI B 16.9 for dimensions and tolerances, ANSI B 16.9/B 16.25 for end preparation as well as ASTM A 403 or other applicable Standards for manufacturing and testing requirements. Fittings can also be manufactured conforming to customer specifications.

Main Export Market

• Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia
• UAE
