ANSI/ASME B16.9 Butt Weld Collar manufacturer & exporter


Home / Products / Butt-Welding Fittings / ANSI/ASME B16.9 Butt Weld Collar

Required Quality in reasonable price of ANSI/ASME B16.9 Butt Weld Collar are always our main priority. We are known as specialist in ANSI/ASME B16.9 Butt Weld Collar,70% of our customers are associated with us for their regular requirements of ANSI/ASME B16.9 Butt Weld Collar, Chinese suppliers also procures ANSI/ASME B16.9 Butt Weld Collar from us bcz. We have the specialization to manufacture ANSI/ASME B16.9 Butt Weld Collar.

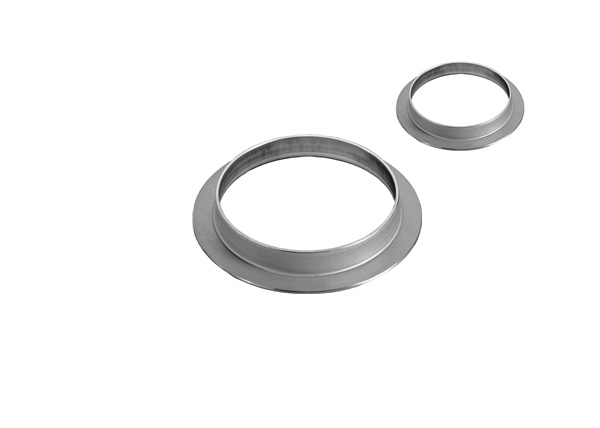

ANSI/ASME B16.9 Butt Weld Collar

ANSI/ASME B16.9 Butt Weld Collar Manufacturer & Exporter

Standards: ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule: Sch 5 TO Sch XXS.
Sizes: 1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” )
Materials: Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW)
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Enquiry

Dimensions

COLLARS for ANSI 150 flanges
COLLARS for UNI and DIN flanges
COLLARS - Ansi 16.9 tolerances
COLLARS - Weights
COLLARS - End welding bevels

COLLARS for ANSI 150 flanges

COLLARS DIMENSION

COLLARS for ANSI 150 flanges

inches

ND

mm Diameter
of lap
Height Radius of
fillet
D G h R
1/2 15 21,34 34,92 5 3
3/4 20 26,67 42,86 6 3
1 25 33,40 50,80 8 3
1 1/4 32 42,16 63,50 8 5
1 1/2 40 48,26 73,00 10 6
2 50 60,32 92,10 10 8
2 1/2 65 73,02 104,80 12 8
3 80 88,90 127,00 12 9
3 1/2    90 101,60 139,70 12 9
4 100 114,30 157,20 14 11
5 125 141,30 185,70 16 11
6 150 168,27 215,90 16 12
8 200 219,07 269,80 18 12
10 250 273,05 323,80 20 12
12 300 323,85 381,00 20 12
14 350 355,60 412,70 25 12
16 400 406,40 469,90 25 12
18 450 457,20 533,40 25 12
20 500 508,00 584,20 25 12
22 550 558,80 641,30 25 12
24 600 609,60 692,10 25 12

Dimension in mm.

The values of radius "R" and height "h" are indicative


COLLARS for UNI and DIN flanges

COLLARS DIMENSION

COLLARS for UNI and DIN flanges

inches ND mm Diameter
of lap G
Height Radius of
fillet
D PN
2,5-6
PN
10
PN
16
h R
1/2 15 21,34 40 45 45 5 2
3/4 20 26,67 50 58 58 8 2
1 25 33,40 60 68 68 8 3
1 1/4 32 42,16 70 78 78 8 3
1 1/2 40 48,26 80 88 88 10 3
2 50 60,32 90 102 102 10 4
2 1/2 65 73,02 110 122 122 12 4
3 80 88,90 128 138 138 12 5
4 100 114,30 148 158 158 14 5
5 125 141,30 178 188 188 14 5
5 125 141,30 178 188 188 14 5
6 150 168,27 202 212 212 16 6
8 200 219,07 258 268 268 18 6
10 250 273,05 312 320 320 20 6
12 300 323,85 365 370 378 20 6
14 350 355,60 415 430 438 25 8
16 400 406,40 465 482 490 25 8
18 450 457,20 520 532 550 25 8
20 500 508,00 570 585 610 25 8
Dimension in mm.
The values of radius "R" and height "h" are indicative


COLLARS - Ansi 16.9 tolerances

COLLARS DIMENSION

DIMENSIONAL TOLERANCES - BORDI D'APPOGGIO
For all fittings
Nominal Pipe Size (NPS) Outside Ø
at Bevel
Indide Ø
at End
Wall Thickness
t / t1
O.D. of
Lap G
1/2 a 2 1/2 1 0,8 Not +0 -1
3 a 3 1/2 1 1,6 less +0 -1
4 +2 -1 1,6 than +0 -1
5 a 6 +3 -1 1,6 87,50% +0 -1
8 2 1,6 of nominal +0 -1
10 +4 -3 3,2 tickness +0 -2
12 a 18 +4 -3 3,2   +0 -2
20 a 24 +6 -5 4,8   +0 -2
26 a 30 +7 -5 4,8
32 a 48 +7 -5 4,8



COLLARS - Weights

WEIGHTS OF FITTINGS
NPS
inches
COLLARS
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
1/2 0.01 0.02 0.03 0.04
3/4 0.03 0.03 0.04 0.06
1 0.04 0.07 0.08 0.11
1 1/4 0.05 0.08 0.11 0.15
1 1/2 0.06 0.11 0.15 0.20
2 0.08 0.14 0.20 0.28
2 1/2 0.15 0.22 0.37 0.50
3 0.19 0.27 0.50 0.70
4 0.25 0.35 0.70 1.00
5 0.50 0.65 1.25 1.80
6 0.65 0.80 1.70 2.60
8 0.95 1.30 2.80 4.30
10 1.50 1.80 4.00 5.50
12 2.00 2.40 5.00 6.60
14 2.50 2.95 5.90 7.90
16 3.60 4.00 8.10 10.8
18 4.00 4.60 9.20 12.3
20 5.10 6.00 10.2 13.7
24 8.15 9.30 14.0 18.6
Approximate weights in kg, density 8 kg/dm3


COLLARS - End welding bevels

COLLARS DIMENSION

Main Export Market

  • Eastern Europe
  • North America
  • Mid East/Africa
  • Central/South America
  • Asia
  • Western Europe
  • Australasia
  • UAE

Sales Locations

U.A.E,
Oman,
Saudi Arabia,
Qatar,
Bahrain,
Egypt,
Turkey
Singapore,
Thailand,
Malaysia
Indonesia
Poland
Italy
Portugal
Spain
Brazil
Chile
Venezuela
Costa Rica
USA
Canada
Angola
Sri Lanka
Russia
