Over the years of experience in the industry, we have been able to provide the customers with a broad array of Lateral Tee. Fabricated using ultra-grade raw material, advent tools and sophisticated technologies, the range is available in distinctive sizes and specifications, which can also be customized as per the clients' requirements. The raw material used in the production is sourced from reputed vendors such as DuPont.

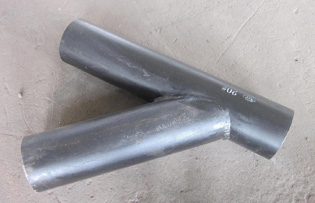

ANSI/ASME B16.9 Lateral Tee

ANSI/ASME B16.9 Lateral Tee Manufacturer & Exporter

Standards: ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule: Sch 5 TO Sch XXS.
Sizes: 1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” )
Materials: Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW)
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Enquiry

Dimensions

LATERAL SIZE

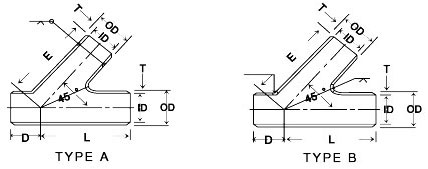

ANSI/ASME B16.9 Lateral Tee Dimension

Nominal
Pipe Size
TYPE
Outside
Diameter OD
STD
X - S
NPS
E & L
D
T
ID
E & L
D
T
ID
1


B
B
B
1.315
1.660
1.900
5.75
6.25
7.00
1.75
1.75
2.00
0.133
0.140
0.145
1.049
1.380
1.610
6.50
7.25
8.50
2.00
2.25
2.50
0.179
0.191
0.200
0.957
1.278
1.500
1


2

3
A/B
B
B
2.375
2.875
3.500
8.00
9.50
10.00
2.50
2.50
3.00
0.154
0.203
0.216
2.067
2.469
3.068
*8.00
**9.00
10.50
11.00
2.50
2.50
3.00
0.128
0.276
0.300
1.939
2.323
2.900
2

3

4
5
B
A/B
B
4.000
4.500
5.562
11.50
12.00
13.50
3.00
3.00
3.50
0.226
0.237
0.258
3.548
4.026
5.047
12.50
*12.00
**13.50
15.00
3.00
3.00
3.50
0.318
0.337
0.375
3.364
3.826
4.813

4
5
6
8
10
A/B
B
B
6.625
8.625
10.750
14.50
17.50
20.50
3.50
4.50
5.00
0.280
0.322
0.365
6.065
7.981
10.020
*14.50
**17.50
20.50
24.00
*3.50
**4.00
5.00
5.50
0.432
0.500
0.500
5.761
7.625
9.750
6
8
10
12
14
16
B
B
B
12.750
14.000
16.000
24.50
27.00
30.00
5.50
6.00
6.50
0.375
0.375
0.375
12.000
13.250
15.250
27.50
31.00
34.50
6.00
6.50
7.50
0.500
0.500
0.500
11.750
13.000
15.000
12
14
16
18
20
24
B
B
B
18.000
20.000
24.000
32.00
35.00
40.50
7.00
8.00
9.00
0.375
0.375
0.375
17.250
19.250
23.250
37.50
40.50
47.50
8.00
8.50
10.00
0.500
0.500
0.500
17.000
19.000
23.000
18
20
24
